Overview

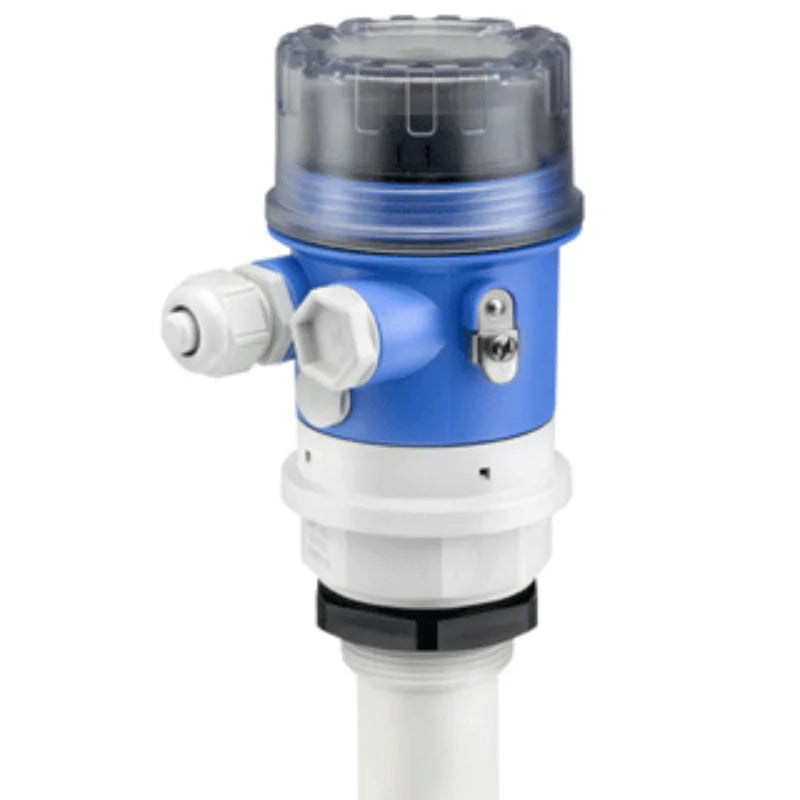

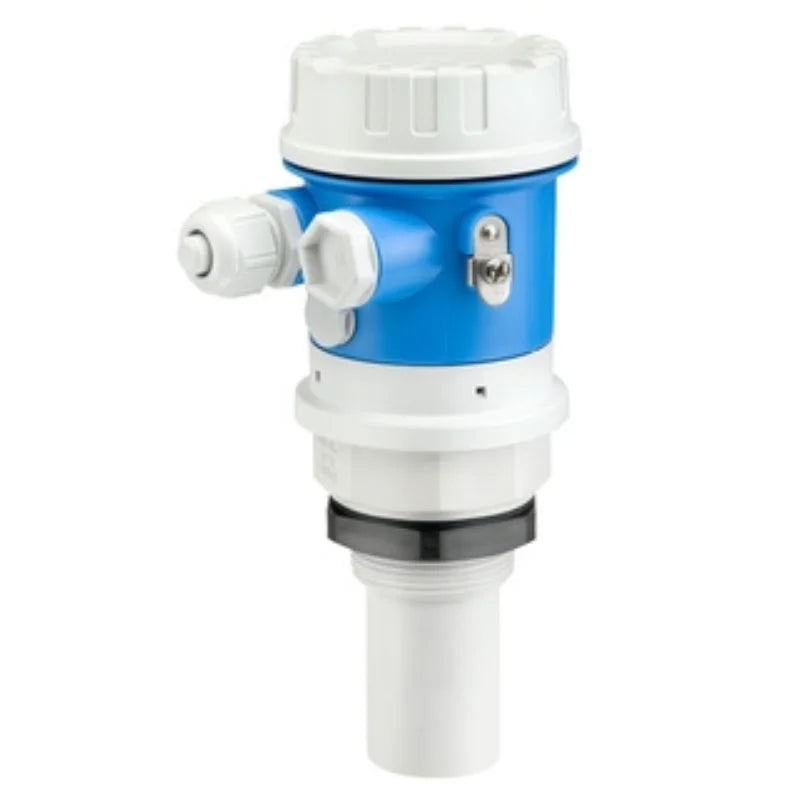

Cost effective all-round instrument for level applications in liquids and bulk solids
Specs at a glance* Accuracy
+/- 3 mm or +/- 0.2 % of set measuring range
* Process temperature
-20 °C...+60 °C
(-4 °F...+140 °F)
* Process pressure / max. overpressure limit
0.7 bar...3 bar abs
(10 psi ...44 psi)
* Max. measurement distance
Sensor 1-1/2": 2 m (6.6 ft)
Sensor 2": 3.5 m (11 ft)
* Main wetted parts
PP/EPDM
+/- 3 mm or +/- 0.2 % of set measuring range
* Process temperature
-20 °C...+60 °C
(-4 °F...+140 °F)
* Process pressure / max. overpressure limit
0.7 bar...3 bar abs
(10 psi ...44 psi)
* Max. measurement distance
Sensor 1-1/2": 2 m (6.6 ft)
Sensor 2": 3.5 m (11 ft)
* Main wetted parts
PP/EPDM
Application
The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on thedisplay. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.
Two-wire instrument for continuous non-contact level and flow measurement.
* Process connection: Thread
* Temperature: -20 to +60°C (-4 to +140°F)
* Pressure: +0.7 to +3bar (+10 to +44psi)
* Maximum measuring distance:
Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),
Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)
* Blocking distance:
Sensor 1½" 0.25m (0.8ft),
Sensor 2" 0.35m (1.15ft)
* International explosion protection certificates
Two-wire instrument for continuous non-contact level and flow measurement.
* Process connection: Thread
* Temperature: -20 to +60°C (-4 to +140°F)
* Pressure: +0.7 to +3bar (+10 to +44psi)
* Maximum measuring distance:
Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),
Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)
* Blocking distance:
Sensor 1½" 0.25m (0.8ft),
Sensor 2" 0.35m (1.15ft)
* International explosion protection certificates
Benefits
* Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable
* Envelope curves on the on-site display for simple diagnosis
* Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
* Non-contact measurement method minimizes service requirements
* Installation possible from thread G 1½ or 1½ NPT upwards
* Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
* Envelope curves on the on-site display for simple diagnosis
* Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
* Non-contact measurement method minimizes service requirements
* Installation possible from thread G 1½ or 1½ NPT upwards
* Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
endress+hauser
|
|
Model Number
|
Prosonic FMU30
|
|
Material
|
PP/EPDM
|
|
Mode
|
Ultrasonic measurement Time-of-Flight
|
|
Measuring Principle
|
Ultrasonic
|
|
Characteristic / Application
|
Compact ultrasonic transmitter
|
|
Supply / Communication
|
2-wire
|
|
Accuracy
|
+/- 3 mm or +/- 0,2 % of set measuring range
|
|
Ambient Temperature
|
-20 °C ... 60 °C
(-4 °F ... 140 °F) |
|
Process Temperature
|
-20 °C ... 60 °C
(- 4°F ... 140 °F) |
|
Process Pressure / Max. Overpressure Limit
|
0.7 bar ... 3 bar abs
(10 psi ... 44 psi) |
|
Main Wetted Parts
|
PP/EPDM
|
|
Process Connection
|
G / NPT 1 1/2"
G / NPT 2" |
|
Blocking Distance
|
1 1/2": 0.25 m (0.8 ft)
2":0.35 m (1.15 ft) |
|
Application
|
Application
|
|
Max. Measurement Distance
|
Max. measurement distance
|
|
Communication
|
4...20 mA
|
|
Certificates / Approvals
|
ATEX, CSA C/US, IEC Ex, NEPSI
|
|
Options
|
Accessory Enclosed:
UNI flange 2" ... 4" |
|
Application Limits
|
Application limits
|
