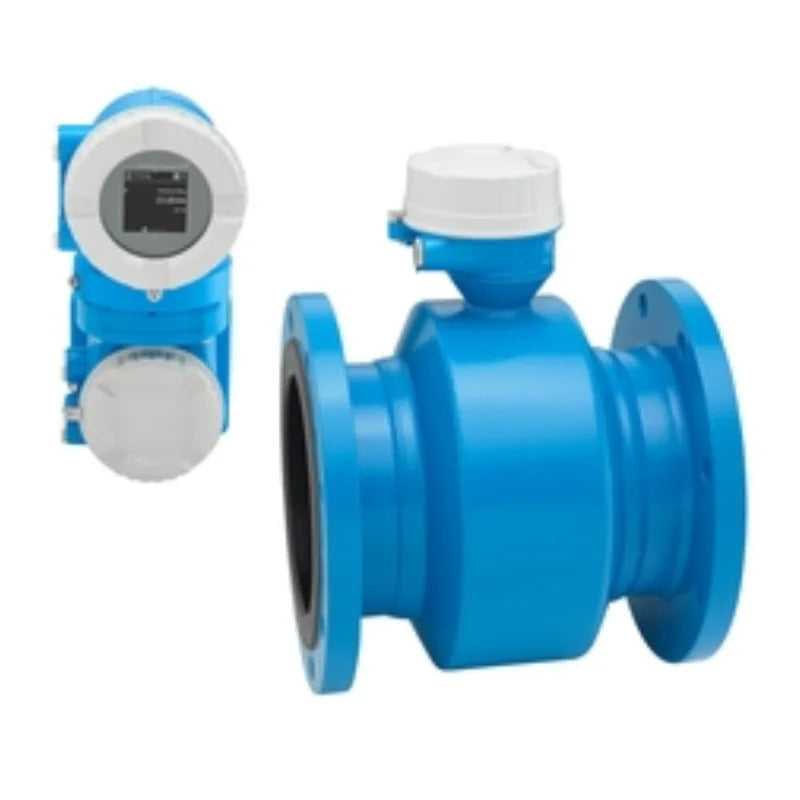

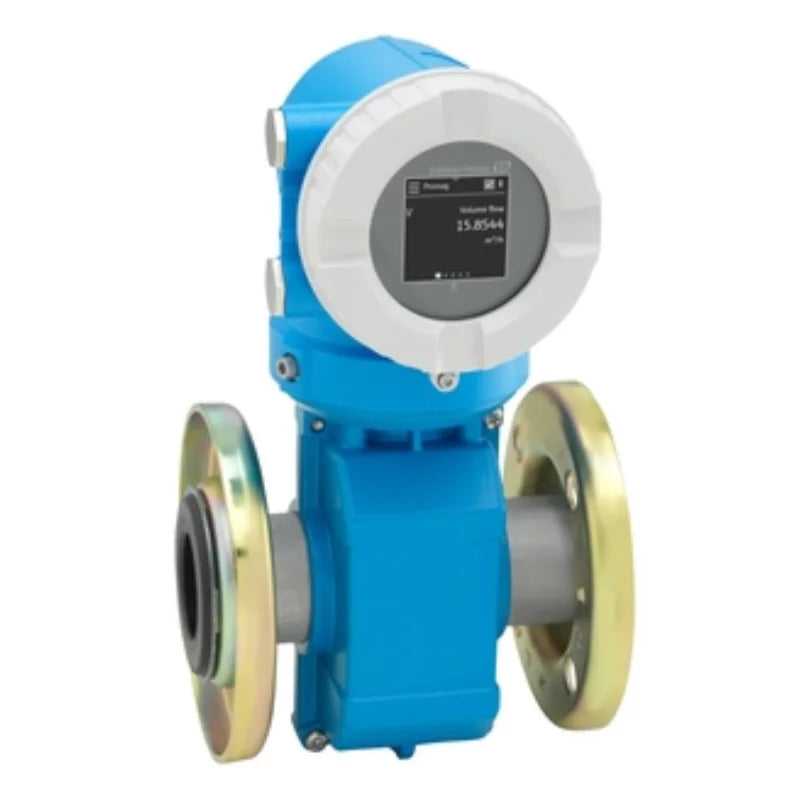

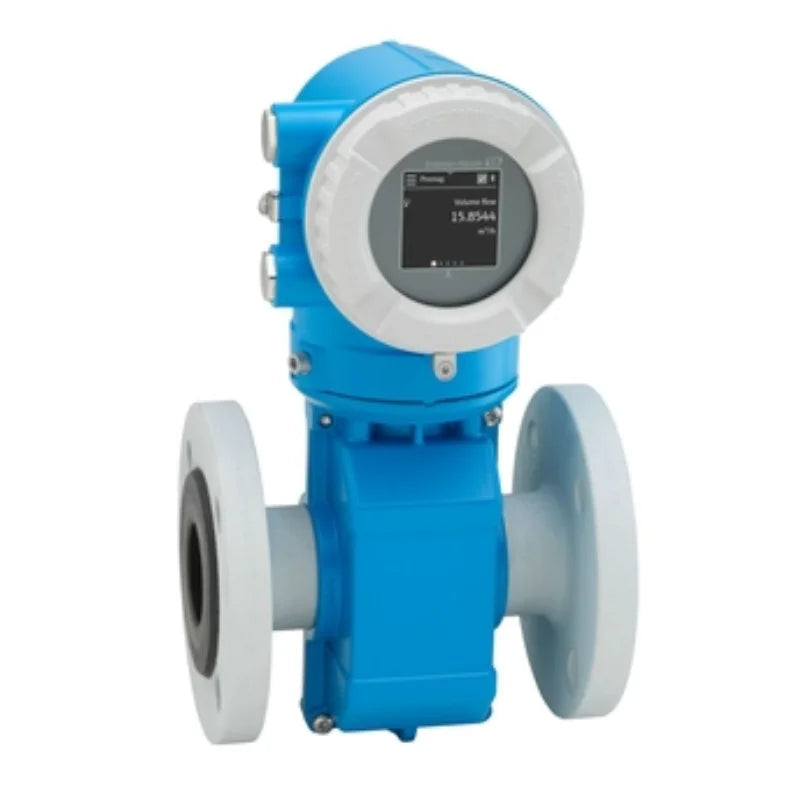

Endress Hauser Proline Promag W10 Electromagnetic Flowmeter. A flowmeter for basic water and wastewater applications with easy-to-use operation concept
Specs at a glance
Max. measurement error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring range
0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
Medium temperature range
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194°F)
Max. process pressure
PN 40, Class 300, 20K
Wetted materials
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +160 °F)
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
Application
Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. It is available as both compact or remote version. With its straightforward hard- and software design, Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
* Suitable for elementary measurement tasks such as raw water intake.
Device properties:
* International drinking water approvals
* Degree of protection IP68 (Type 6P enclosure)
* System integration with HART, Modbus RS485
* Flexible operation with app and optional display
Benefits
* Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss
* Flexible engineering – sensor with fixed or lap-joint process connections
* Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation
* Improved plant availability – sensor compliant with industry-specific requirements
* Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
* Simple, time-saving commissioning – guided parameterization in advance and in the field
* Integrated verification – Heartbeat Technology
Specification
| item | value |
| Warranty | 1 Year |
| Customized support | OEM |
| Place of Origin | Germany |
| Brand Name | Endress+Hauser |
| Model Number | Proline Promag W 10 |
| Type | Electromagnetic flowmeter |
| Product Headline | Flowmeter for basic water and wastewater applications with easy-to-use operation concept. Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss. Suitable for elementary measurement tasks such as raw water intake. |
| Sensor Features | Flexible engineering – sensor with fixed or lap-joint process connections. Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation. Improved plant availability – sensor compliant with industry-specific requirements. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure). International drinking water approvals. Installation length: DVGW/ISO conform. |
| Transmitter Features | Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485. Flexible operation with app and optional display. |
| Nominal Diameter Range | DN 25 to 3000(1 to 120") |
| Wetted Materials | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +160 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022) |
| Measured Variables | Volume flow, conductivity, mass flow |
| Max. Measurement Error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring Range | 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d) |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Medium Temperature Range | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194°F) |
| Ambient Temperature Range | -40 to 60°C (-40 to 140°F) |
| Sensor Housing Material | DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 350 to 2000 (14 to 78"): Carbon steel with protective varnish |
| Transmitter Housing Material | Polycarbonat; AlSi10Mg, coated |
| Degree Of Protection | Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3 |
| Display/Operation | LCD display with touch & auto rotate |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA |
| Digital Communication | HART, MODBUS RS485 |
| Power Supply | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| Hazardous Area Approvals | CSA, GP, KC |
| Metrological Approvals And Certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation) |
| Pressure Approvals And Certificates | CRN, PED |
| Material Certificates | 3.1 material |
| Hygienic approvals and certificates | Drinking water approvals: ACS, KTW/W270, NSF 61, WRAS BS 6920 |
