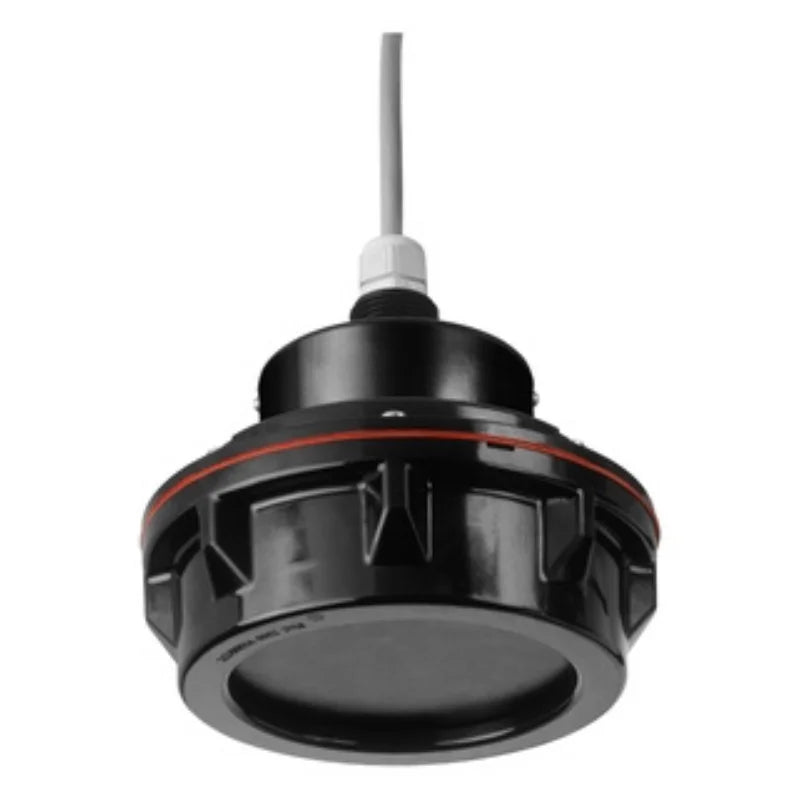

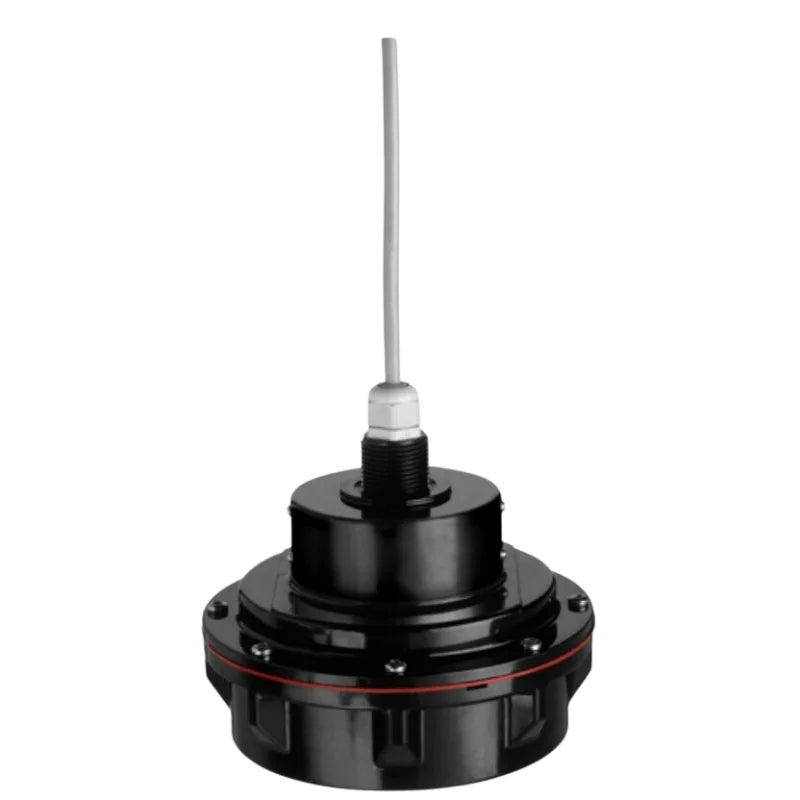

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 25m)
Specs at a glance* Accuracy
+/- 2 mm + 0.17% of measured distance
* Process temperature
-40 °C ... 95 °C
(-40 °F ... 203 °F)
* Process pressure / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 43 psi)
* Max. measurement distance
Liquids: 25 m (85 ft),
Solids: 15 m (50 ft)
* Main wetted parts
UP (unsaturated polyester)
Silicon / Al PTFE coated
+/- 2 mm + 0.17% of measured distance
* Process temperature
-40 °C ... 95 °C
(-40 °F ... 203 °F)
* Process pressure / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 43 psi)
* Max. measurement distance
Liquids: 25 m (85 ft),
Solids: 15 m (50 ft)
* Main wetted parts
UP (unsaturated polyester)
Silicon / Al PTFE coated
Application
The FDU93 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors.Suited for explosion hazardous areas. Maximum measuring range in liquids 25m (85ft), solids 15m (50ft).Sensor for continuous, non-contact level measurement of fluids and of bulk materials in silos, on belts, stockpiles and in crushers. Also for flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.
* Process connection: Thread
* Temperature: -40 to +95°C (-40 to +203°F)
* Pressure: +0.7 to +3bar (+10 to +43psi)
* Maximum measuring range: Liquids 25m (85ft), solids 15m (50ft)
* Blocking distance: 0.6m (2ft)
* International explosion protection certificates
* Process connection: Thread
* Temperature: -40 to +95°C (-40 to +203°F)
* Pressure: +0.7 to +3bar (+10 to +43psi)
* Maximum measuring range: Liquids 25m (85ft), solids 15m (50ft)
* Blocking distance: 0.6m (2ft)
* International explosion protection certificates
Benefits
* Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
* Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Non-contact measurement method minimizes service requirements
* International Dust-Ex and Gas-Ex certificates available
* Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Non-contact measurement method minimizes service requirements
* International Dust-Ex and Gas-Ex certificates available
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Prosonic FDU93
|
|
Material
|
UP (unsaturated polyester)
Silicon / Al PTFE coated |
|
Mode
|
Ultrasonic measurement Time-of-Flight
|
|
Measuring Principle
|
Ultrasonic
|
|
Characteristic / Application
|
Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and
transmitter |
|
Supply / Communication
|
4-wire (HART, Profibus DP)
|
|
Accuracy
|
+/- 2 mm + 0.17% of measured distance
|
|
Ambient Temperature
|
-40 °C ... 95 °C
(-40 °F ... 203 °F) |
|
Process Temperature
|
-40 °C ... 95 °C
(-40 °F ... 203 °F) |
|
Process Pressure / Max. Overpressure Limit
|
0.7 bar ... 4 bar abs (10 psi ... 58 psi)
|
|
Main Wetted Parts
|
UP (unsaturated polyester)
Silicon / Al PTFE coated |
|
Process Connection
|
G / NPT 1"
|
|
Blocking Distance
|
0.6 m (2 ft)
|
|
Max. Measurement Distance
|
Liquids: 25 m (85 ft),
Solids: 15 m (50 ft) |
|
Communication
|
Transmitter:
4 ... 20 mA HART Profibus DP |
|
Certificates / Approvals
|
ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex
|
|
Options
|
Second 4...20 mA output
|
|
Components
|
Transmitter:
FMU90, FMU95 |
|
Application Limits
|
For tank farms scanner:
FMU95 |
