Overview

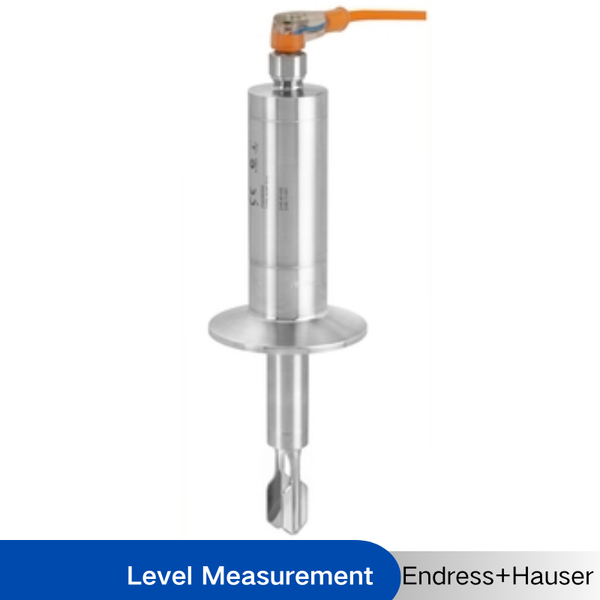

Point level switch for liquids in compact hygienic design for the food industry.
Specs at a glance
* Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F)
* Process pressure / max. overpressure limit
Vacuum ... 40 bar
(Vacuum ... 580 psi)
* Min. density of medium
>0,7g/cm³
(>0,5g/cm³ optional)
-40 °C ... 150 °C
(-40 °F ... 302 °F)
* Process pressure / max. overpressure limit
Vacuum ... 40 bar
(Vacuum ... 580 psi)
* Min. density of medium
>0,7g/cm³
(>0,5g/cm³ optional)
Field of application
Liquiphant FTL33 is a point level switch for liquids. The FTL33 is especially designed for food & beverage applications where hygienic requirements are requested. The Liquiphant is used for overfill protection or pump dry-run protection. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
-IO-Link connectivity
Point level switch in compact hygienic design with stainless steel housing for the food industry.
* Process connections: Threads, hygienic process connections, M24 process adapter
* Temperature: -40 to +150°C (-40 to +302°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Surface roughness: 0.76µm or 1.5µm
* Overfill protection and leakage detection WHG, hygienic certificates, final inspection report
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
-IO-Link connectivity
Point level switch in compact hygienic design with stainless steel housing for the food industry.
* Process connections: Threads, hygienic process connections, M24 process adapter
* Temperature: -40 to +150°C (-40 to +302°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Surface roughness: 0.76µm or 1.5µm
* Overfill protection and leakage detection WHG, hygienic certificates, final inspection report
Benefits
* Designed for hygienic applications especially in the food industry - hygienic process connections and approvals available.
IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
* CIP and SIP cleanability ensured - up to protection class IP69k
* Designed according to highest requirements to quality and environmental sustainability, the self-monitoring Liquiphant offers safe switching also in case of power supply loss
* Independent of changing media properties an accurate switching point is offered
* A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles
* No calibration is required, no specific know-how or tools (e.g. software) necessary
* Robust design made of stainless steel (316L) assures highest durability - no mechanically moved parts, free of maintenance
IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
* CIP and SIP cleanability ensured - up to protection class IP69k
* Designed according to highest requirements to quality and environmental sustainability, the self-monitoring Liquiphant offers safe switching also in case of power supply loss
* Independent of changing media properties an accurate switching point is offered
* A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles
* No calibration is required, no specific know-how or tools (e.g. software) necessary
* Robust design made of stainless steel (316L) assures highest durability - no mechanically moved parts, free of maintenance
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquiphant FTL51B
|
|
Material
|
316L
|
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Point level switch for liquids
in the food sector |
|
Supply / Communication
|
20 ... 253V AC/DC, 2-wire
10 ... 30V DC-PNP, 3-wire |
|
Ambient Temperature
|
-40 °C ... 70 °C
(-40 °F ... 158 °F) |
|
Process Temperature
|
-40 °C ... 150 °C
(-40 °F ... 302 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum ... 40 bar
(Vacuum ... 580 psi) |
|
Min. Density Of Medium
|
>0,7g/cm³
(>0,5g/cm³ optional) |
|
Main Wetted Parts
|
316L
|
|
Process Connection
|
Threads:
G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1 |
|
Process Connection Hygienic
|
Flush mount by use of weld in adapter
DIN11851 Tri-Clamp |
|
Communication
|
AC/DC, DC-PNP, IO-Link
|
|
Certificates / Approvals
|
CSA C/US, EAC
|
|
Safety Approvals
|
Overfill protection WHG
Leakage |
|
Design Approvals
|
EN 10204-3.1
|
|
Hygienic Approval
|
3A, EHEDG
|
|
Options
|
Switching delay
Cleaned from oil+grease, Surface finish measurement |
