Overview

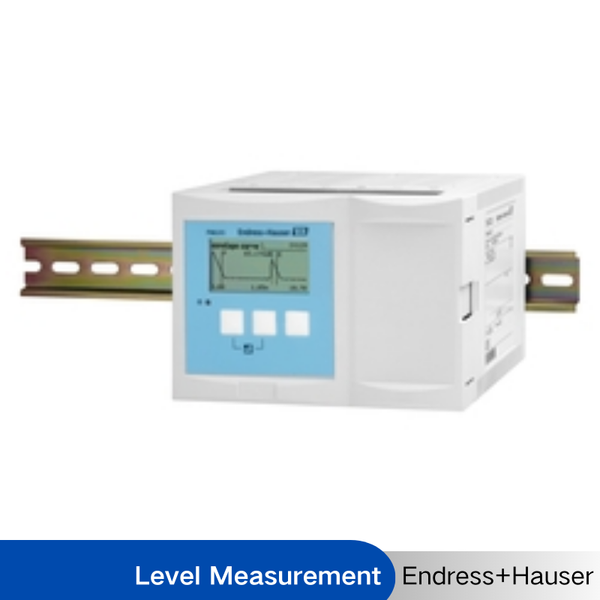

Transmitter in housing for field or top hat rail mounting for up to 10 sensors FDU90/91/92/93/95
* Accuracy
+/- 2mm + 0.17% of measured distance
+/- 2mm + 0.17% of measured distance
Application
Prosonic FMU95 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids.
Continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk materials with up to 5 or 10 ultrasonic sensors.
* Measuring range up to 45m (148ft) (depending on sensor and material measured)
* Calculation of average values or sums
Continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk materials with up to 5 or 10 ultrasonic sensors.
* Measuring range up to 45m (148ft) (depending on sensor and material measured)
* Calculation of average values or sums
Benefits
* Simple, menu-guided operation with 6-line plain text display, 15 languages selectable
* Envelope curves on the display for quick and simple diagnosis
* Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program
* Time-of-Flight correction via integrated or external temperature sensors
* Linearization (up to 32 points, freely configurable)
* System integration via PROFIBUS DP with up to 20 measured values
* Automatic detection of the sensors FDU9x
* Envelope curves on the display for quick and simple diagnosis
* Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program
* Time-of-Flight correction via integrated or external temperature sensors
* Linearization (up to 32 points, freely configurable)
* System integration via PROFIBUS DP with up to 20 measured values
* Automatic detection of the sensors FDU9x
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
endress+hauser
|
|
Model Number
|
Prosonic FMU95
|
|
Mode
|
Ultrasonic measurement Time-of-Flight
|
|
Measuring Principle
|
Ultrasonic
|
|
Characteristic / Application
|
Separated version with Field housing or top hat rail housing for control cabinet instrumentation, 5 or 10 channel version
|
|
Specialities
|
Protection Class IP 66 / NEMA 4x
automatic sensor recognition of FDU9x sensors |
|
Supply / Communication
|
90 ... 253 VAC
10.5 ... 32 VDC Profibus DP |
|
Accuracy
|
+/- 2mm + 0.17% of measured distance
|
|
Ambient Temperature
|
-40 °C ... 60 °C
(-40 °F ... 140 °F) |
|
Communication
|
Profibus DP
|
|
Certificates / Approvals
|
ATEX, CSA
|
|
Options
|
Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display
|
|
Components
|
Sensors FDU9x
|
