Overview Ultrasonic sensor for level measurement for connection to FMU9x (measuring range up to 45m) Specs at a glance * Accuracy+/- 2 mm + 0.17% of measured distance*...



Overview

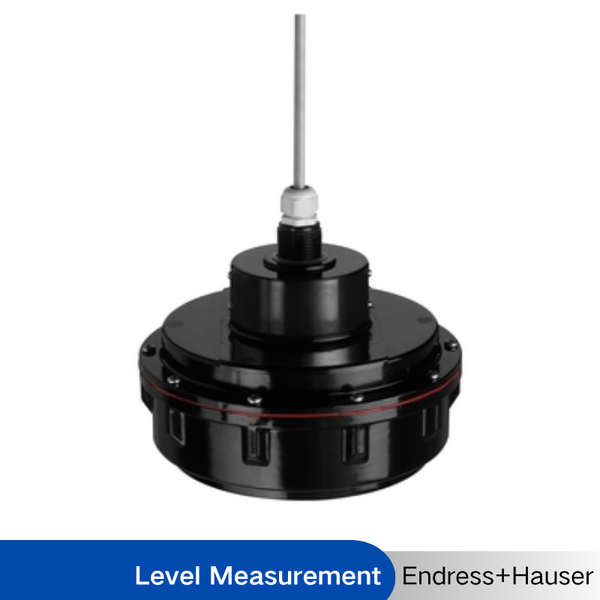

Ultrasonic sensor for level measurement for connection to FMU9x (measuring range up to 45m)

Specs at a glance
* Accuracy
+/- 2 mm + 0.17% of measured distance
* Process temperature
-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)
* Process pressure / max. overpressure limit
0.7 bar...1.5 bar abs
(10 psi...22 psi)
* Max. measurement distance
45 m (148 ft)
* Main wetted parts
UP (unsaturated polyester)
Silicon / Al PTFE coated

Application

The FDU95 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).Sensor for continuous, non-contact level measurement of bulk materials in silos, on belts, stockpiles and in crushers. Typically used in measurements in low structural heights.
* Process connection: Thread
* Temperature: -40 to +80°C or +150°C (-40 to +176°F or +302°F)
* Pressure: +0.7 to +1.5bar (+10 to +22psi)
* Maximum measuring range: Solids 45m (148ft)
* Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)
* International explosion protection certificates

Benefits

* Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
* Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Non-contact measurement method minimizes service requirements
* International Dust-Ex and Gas-Ex certificates available

Specification

item
value
Grade
Industrial
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Prosonic FDU95
Material
UP (unsaturated polyester)
Silicon / Al PTFE coated
Mode
Ultrasonic measurement Time-of-Flight
Measuring Principle
Ultrasonic
Characteristic / Application
Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and
transmitter
Supply / Communication
4-wire (HART, Profibus DP)
Accuracy
+/- 2 mm + 0.17% of measured distance
Ambient Temperature
-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)
Process Temperature
-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)
Process Pressure / Max. Overpressure Limit
0.7 bar...1.5 bar abs
(10 psi...22 psi)
Main Wetted Parts
UP (unsaturated polyester)
Silicon / Al PTFE coated
Process Connection
G / NPT 1"
Blocking Distance
0.7 m / 80 °C,
(2.3 ft / 176 °F),
0.9 m / 150 °C,
(2.9 ft / 302 °F)
Max. Measurement Distance
45 m (148 ft)
Communication
Transmitter:
4 ... 20 mA HART
Profibus DP
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex
Options
Second 4...20 mA output
Components
Transmitter:
FMU90, FMU95
