Overview
For 80GHz level measurement in aggressive liquids or applications with hygiene requirements.
Specs at a glance
* Accuracy
+/- 1 mm (0.04 in)
* Process temperature
-40…+200 °C
(-40…+392 °F)
* Process pressure / max. overpressure limit
Vacuum…+25 bar
(Vacuum…+362.6 psi)
* Max. measurement distance
80 m (262 ft)
* Main wetted parts
PTFE or PEEK antenna,
316L threads,
PTFE cladded flanges
+/- 1 mm (0.04 in)
* Process temperature
-40…+200 °C
(-40…+392 °F)
* Process pressure / max. overpressure limit
Vacuum…+25 bar
(Vacuum…+362.6 psi)
* Max. measurement distance
80 m (262 ft)
* Main wetted parts
PTFE or PEEK antenna,
316L threads,
PTFE cladded flanges
Field of application

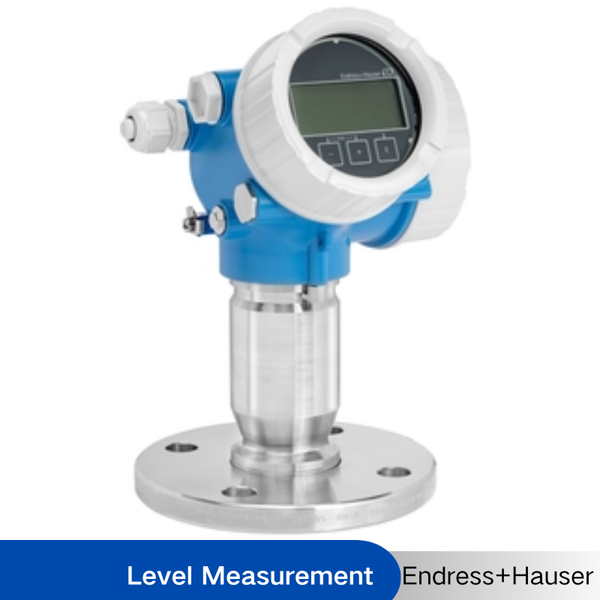

Micropilot FMR62 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. For applications in aggressive liquids, FMR62 offers extraordinary advantages with its completely PTFE-filled and flush-mounted antenna. The integrated PEEK antenna allows very small process connections. The FMR62 free space radar offers maximum reliability due to improved algorithms and small beam angle. It also possesses the smart sensor functionality Heartbeat Technology.
Micropilot FMR62 is suited for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
* Process connections: Threads or flanges
* Temperature: -40 to +200°C (-40 to +392°F)
* Pressure: -1 to +25bar (-14.5 to +362.6psi)
* Maximum measuring range: 80m (262ft)
* Accuracy: ±1mm (0.04in)
* W-band: 80GHz
* International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
Micropilot FMR62 is suited for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.
* Process connections: Threads or flanges
* Temperature: -40 to +200°C (-40 to +392°F)
* Pressure: -1 to +25bar (-14.5 to +362.6psi)
* Maximum measuring range: 80m (262ft)
* Accuracy: ±1mm (0.04in)
* W-band: 80GHz
* International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
Benefits
* Hardware and software developed according to IEC 61508 up to SIL3 in homogeneous redundancy
* Heartbeat Technology for cost-effective and safe plant operation during the entire life cycle
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even with obstructions in vessels due to small beam angle and Multi-Echo Tracking evaluation
* PTFE-filled and flush-mounted horn antenna for maximum system availability
* Reduction of engineering effort due to an easier integration of the 80GHz radar instrument into the process
* The world's easiest proof test concept for SIL and WHG saves time and costs
* Heartbeat Technology for cost-effective and safe plant operation during the entire life cycle
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even with obstructions in vessels due to small beam angle and Multi-Echo Tracking evaluation
* PTFE-filled and flush-mounted horn antenna for maximum system availability
* Reduction of engineering effort due to an easier integration of the 80GHz radar instrument into the process
* The world's easiest proof test concept for SIL and WHG saves time and costs
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR62
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
Premium device for continuous non-contact level measurement, in which aggressive media are used as well as for highest hygiene
requirements (ASME BPE, USP Class VI); For applications with many obstacles for small vessels due to the very small beam angle. |
|
Specialities
|
Heartbeat Technology
SIL 2/3 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi-Echo Tracking, HistoROM, RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART),
Bluetooth® wireless technology and App (optional) |
|
Frequency
|
W-band (~80 GHz)
|
|
Accuracy
|
+/- 1 mm (0.04 in)
|
|
Ambient Temperature
|
-40…+80 °C
(-40…+176 °F) |
|
Process Temperature
|
-40…+200 °C
(-40…+392 °F) |
|
Process Pressure / max. Overpressure Limit
|
Vacuum…+25 bar
(Vacuum…+362.6 psi) |
|
Main Wetted Parts
|
PTFE or PEEK antenna,
316L threads, PTFE cladded flanges |
|
Process Connection
|
Threads:
G, MNPT 3/4", 1-1/2" Flanges: DN50 ... DN150 ASME 2" ...6" |
|
Process Connection Hygienic
|
DIN11851, Tri-Clamp
|
|
Max. Measurement Distance
|
80 m (262 ft)
|
|
Communication
|
4…20 mA HART,
Additional switch, Bluetooth® wireless technology |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex
|
|
Safety Approvals
|
Overfill protection WHG,
SIL 2, SIL 3 |
|
Design Approvals
|
EN 10204-3.1
NACE MR0175, MR0103 AD2000 |
|
Hygienic Approval
|
CoC-ASME BPE
|
|
Options
|
Display,
Customized parameterization, Remote operation via SmartBlue App using Bluetooth®, PWIS free, Gastight feed through |
|
Application Limits
|
Process temp. > 200 °C (392 °F) -> FMR5x
Strong turbulences and foam, stilling well and bypass -> FMR5x,FMP5x |
