Overview
Point level switch for all liquids in high-temperature applications. Also suitable in hazardous locations.
Specs at a glance
* Process temperature -60 °C...+280 °C (-76 °F...+540 °F) (300°C / 572°F, 50h cumulated)
* Process pressure / max. overpressure
limit Vacuum...100 bar (Vacuum...1450 bar)
limit Vacuum...100 bar (Vacuum...1450 bar)
* Min. density of medium 0.5g/cm³ (0.4g/cm³ optional)
Field of application

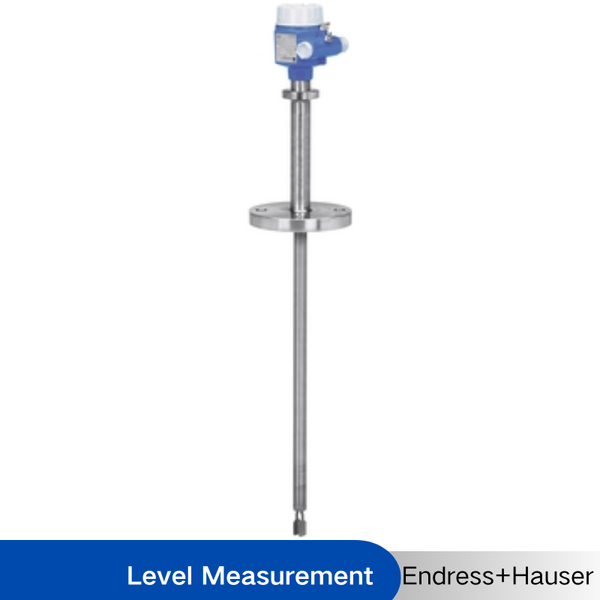

Liquiphant FTL71 is a point level switch with extension tube for use in hazardous areas with all international certificates. FTL71 is especially designed for applications with high process temperatures up to 280°C and can be used up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Benefits
*Use in safety systems requiring functional safety to SIL2 in accordance with IECEndress+Hauser 61508/IEC 61511-1
* With welded gas-tight
feed-through maximum safety in the event of damaged sensor
feed-through maximum safety in the event of damaged sensor
* Wide variety of electronics, e.g. NAMUR, relay, thyristor, PFM signal
output: the right connection for every process control system
output: the right connection for every process control system
* Large number of process connections to choose from: universal usage
* No calibration: quick, low-cost start-up
* No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
Monitoring of fork for damage: guaranteed function
* FDA approved materials (PFA Edlon)
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquiphant S FTL71
|
|
Material
|
316L / Alloy
PFA and Enamel on request |
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Modular housing concept
High process temperatures up to 280°C wide range of process connections Analogue and bus interfaces Extensive certificate range (e.g. Ex,WHG) compact, e.g. pipes Dual Sealing / Second line of defense |
|
Specialities
|
Foam detection
Detect a density change second line of defense |
|
Supply / Communication
|
PROFIBUS PA
19...253V AC 10...55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
|
Ambient Temperature
|
-50 °C...+70 °C
(-58 °F...+158 °F) |
|
Process Temperature
|
-60 °C...+280 °C
(-76 °F...+540 °F) (300°C / 572°F, 50h cumulated) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...100 bar
(Vacuum...1450 bar) |
|
Min. Density Of Medium
|
0.5g/cm³(0.4g/cm³ optional)
|
|
Main Wetted Parts
|
316L / Alloy
PFA and Enamel on request |
|
Process Connection
|
Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1 Flange: DIN DN25...DN100, ASME 1"...4", JIS 25A...100A |
|
Sensor Length
|
Length 130mm (5.12") (Liquiphant II)
148mm...3000mm / 6000mm optional (5.83"...118" / 236" optional) |
|
Communication
|
PROFIBUS PA
19...253V AC 10...55V DC-PNP 19...253V AC bzw 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
|
|
Safety Approvals
|
SIL
|
|
Design Approvals
|
EN 10204-3.1
NACE MR0175, MR0103 ASME B31.3 AD2000 |
|
Marine Approval
|
GL/ ABS
|
|
Options
|
Heavy duty stainless steel housing mainly for the oil and gas industry
|
|
Components
|
FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR |
