Overview

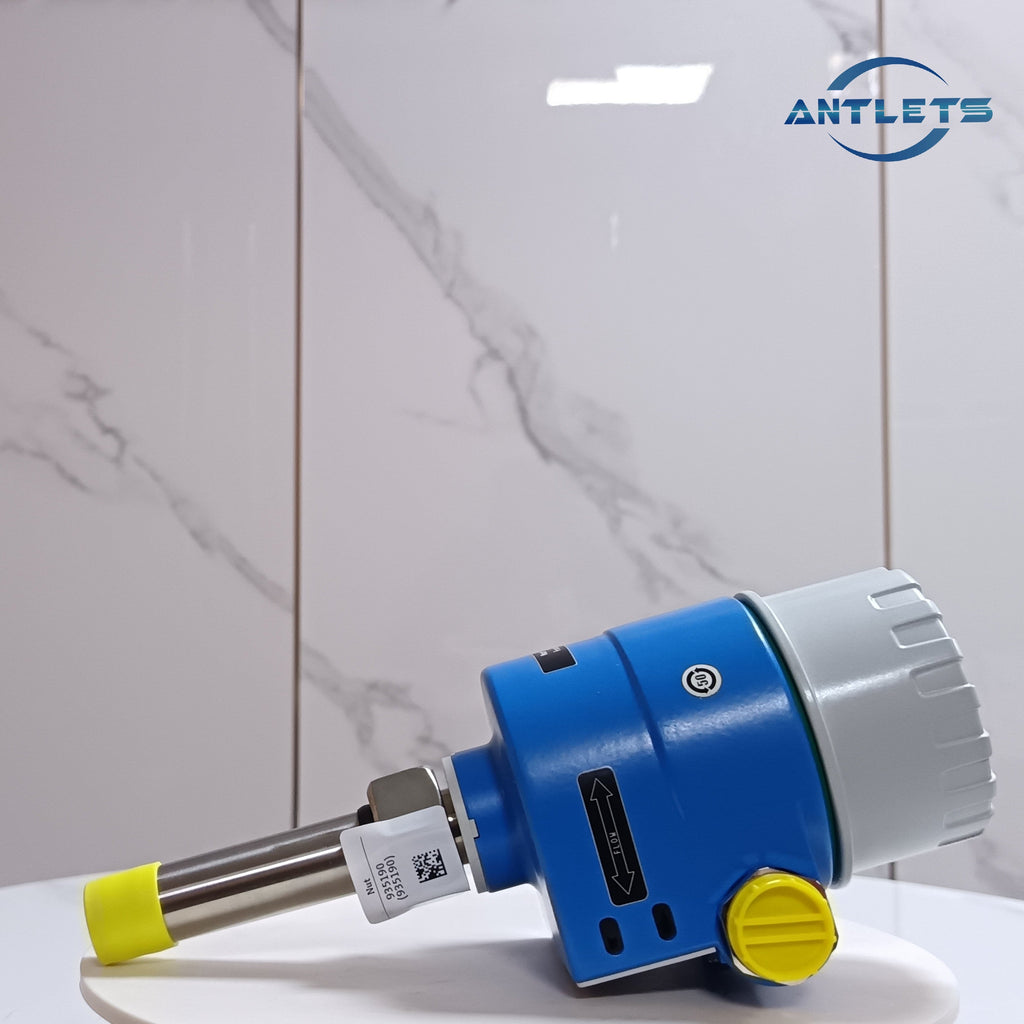

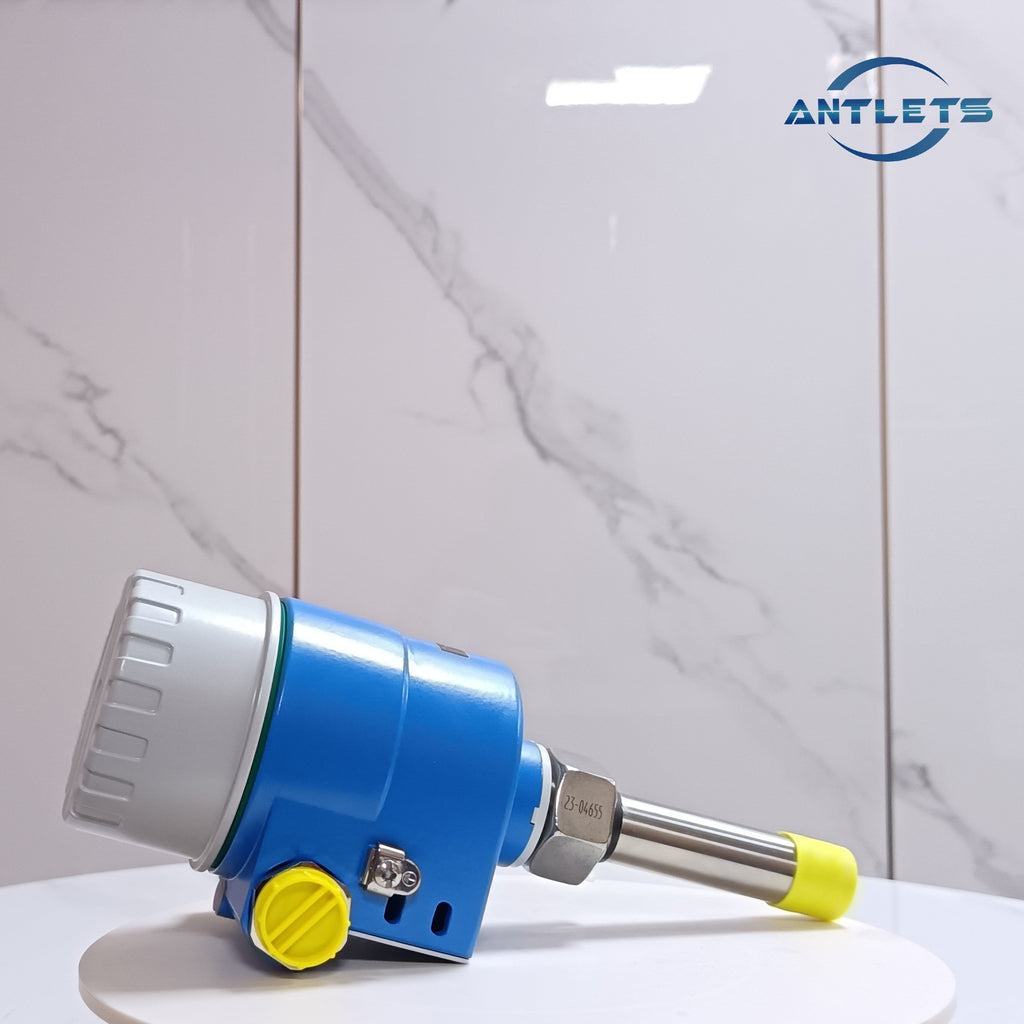

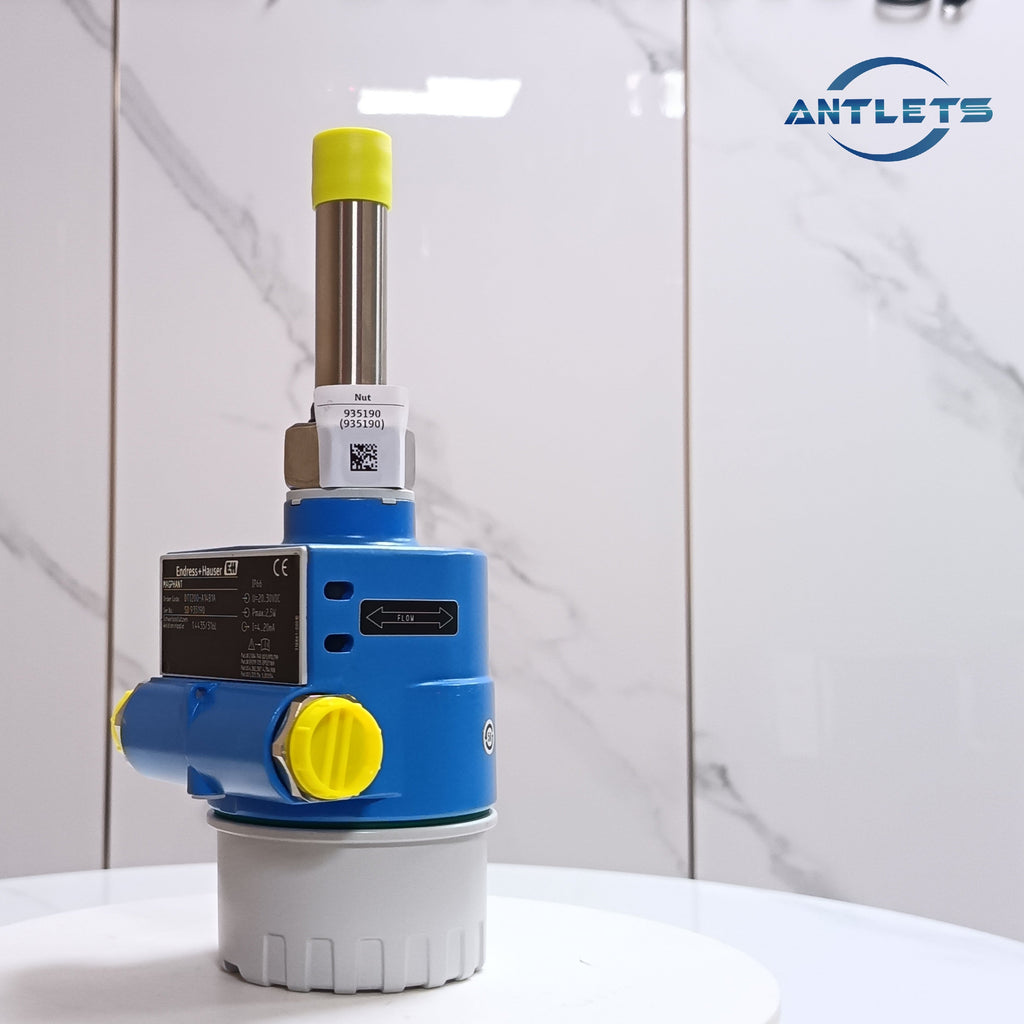

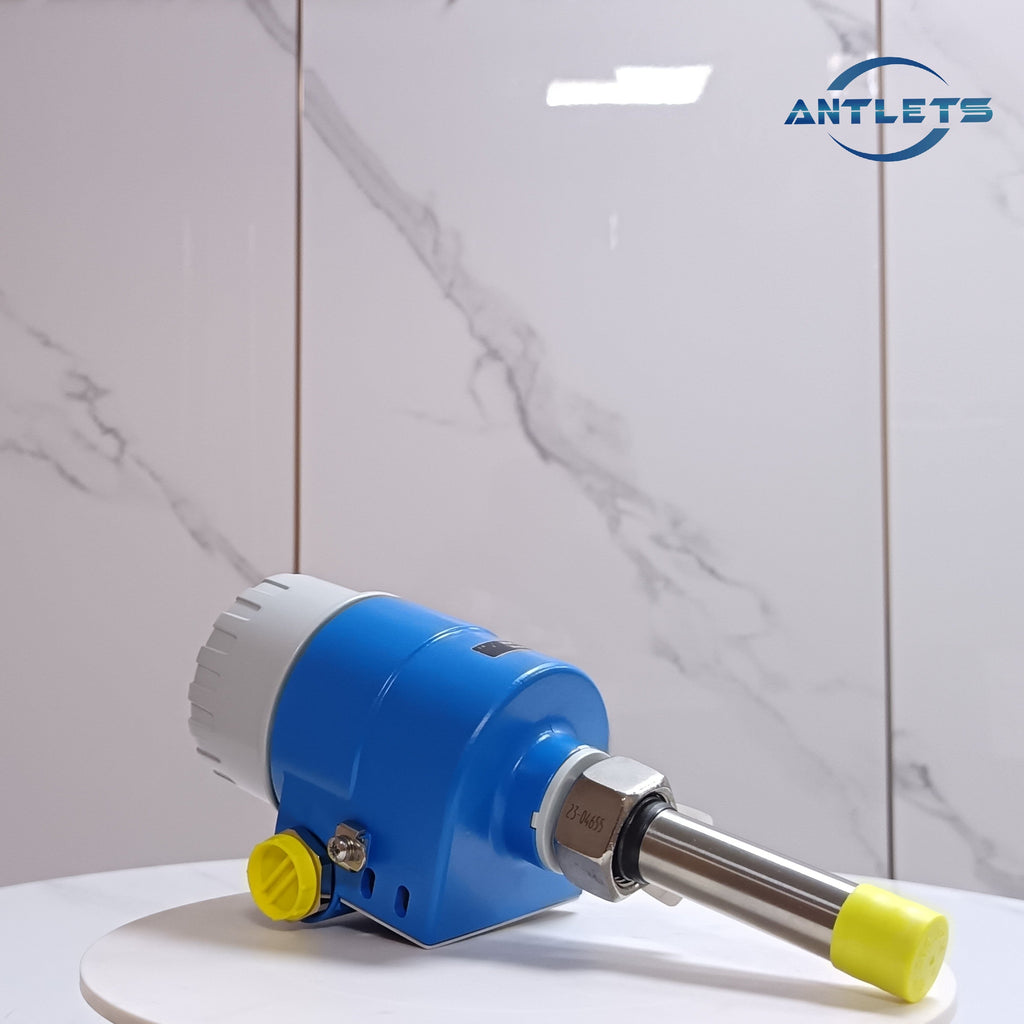

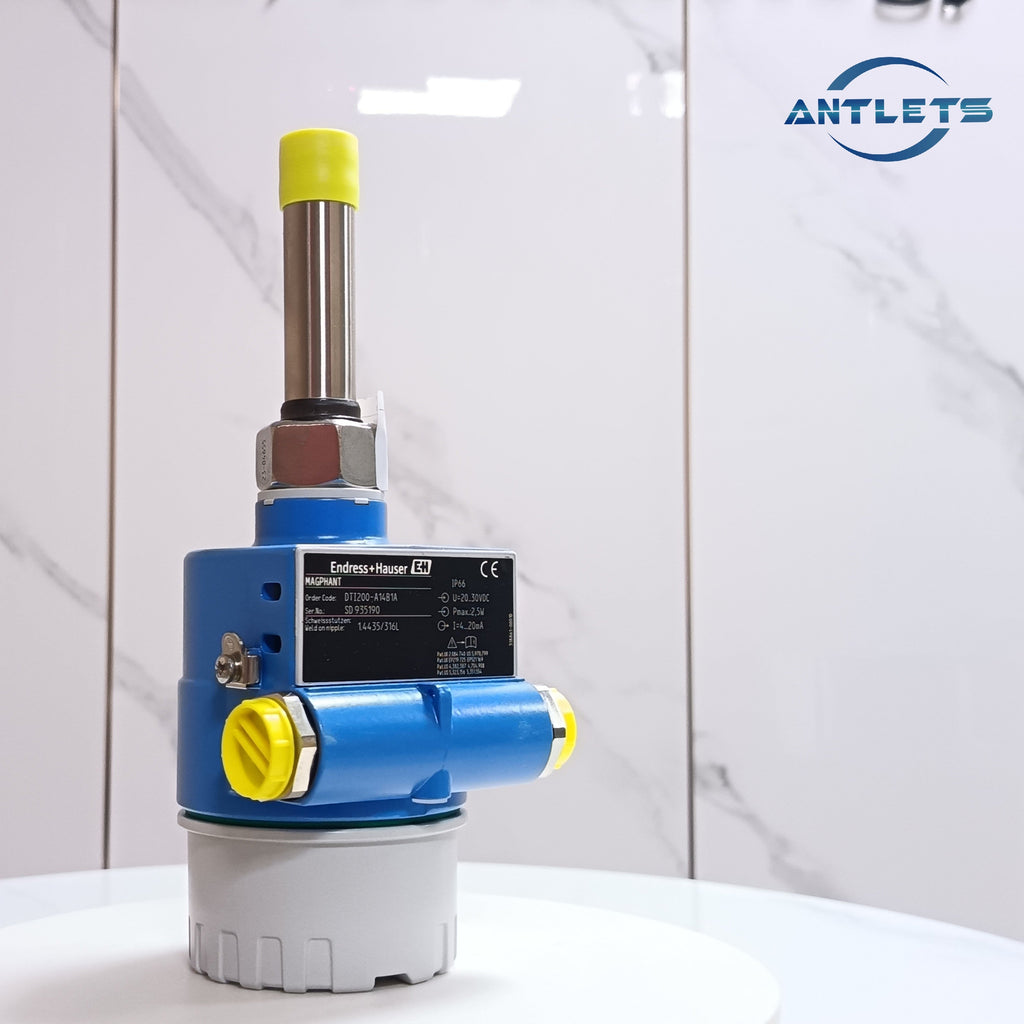

The cost-effective limit switch for reliable and repeatable flow monitoring
Specs at a glance* Max. measurement error
2%
* Measuring range
0 to 56'550 m3/h
* Medium temperature range
-20 to +120°C
(-4 to +248°F)
* Max. process pressure
0 to 16 bar abs
2%
* Measuring range
0 to 56'550 m3/h
* Medium temperature range
-20 to +120°C
(-4 to +248°F)
* Max. process pressure
0 to 16 bar abs
* Wetted materials
1.4435/316L
1.4435/316L
Application
The cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for univesal and easy use and supports safe process- and plant operation.
* The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
* Universally usable for all water applications in Utilities.
Device properties
* Compact, space-saving design
* Nominal diameter: DN 15 to 2000 (1/2 to 80")
* Applicable for steel or plastic pipes
* Switch point setting via rotary switch
* Current output and relay output
* ATEX, FM, CSA
* Compact, space-saving design
* Nominal diameter: DN 15 to 2000 (1/2 to 80")
* Applicable for steel or plastic pipes
* Switch point setting via rotary switch
* Current output and relay output
* ATEX, FM, CSA
Benefits
* High plant availability – reliable flow information
* Energy-saving flow measurement – no pressure loss due to cross-section constriction
* Maintenance-free – no moving parts
* Process safety – device self-monitoring and reliable monitoring even with empty piping
* Product safety – integrated testing to check correct functioning of the electronics
* Easy operation – potentiometer setting of full-scale value
* Energy-saving flow measurement – no pressure loss due to cross-section constriction
* Maintenance-free – no moving parts
* Process safety – device self-monitoring and reliable monitoring even with empty piping
* Product safety – integrated testing to check correct functioning of the electronics
* Easy operation – potentiometer setting of full-scale value
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Magphant DTI200
|
|
Type
|
Electromagnetic flowmeter
|
|
Sensor Features
|
High plant availability – reliable flow information. Energy-saving flow measurement – no pressure loss due to cross section
constriction. Maintenance-free – no moving parts. Compact, space-saving design. Nominal diameter: DN 15 to 2000 (½ to 80"). |
|
Transmitter Features
|
Process safety – device self-monitoring and reliable monitoring even with empty piping. Product safety – integrated testing to
check correct functioning of the electronics. Easy operation – potentiometer setting of full-scale value. Switch point setting via rotary switch. Current output and relay output. |
|
Nominal Diameter Range
|
DN15 to DN2000
1/2" to 80" |
|
Wetted materials
|
1.4435/316L
|
|
Measured variables
|
Volume flow
|
|
Max. Measurement Error
|
2%
|
|
Measuring Range
|
0 to 56'550 m3/h
|
|
Max. Process Pressure
|
0 to 16 bar abs
|
|
Medium Temperature Range
|
-20 to +120°C
(-4 to +248°F) |
|
Ambient Temperature Range
|
-20...60 °C (-4 to 140°F)
|
|
Sensor housing material
|
Die-cast aluminium, epoxy powder coated
|
|
Degree Of Protection
|
IP 66 / NEMA 4X / Type 4X
|
|
Display/Operation
|
Test function
|
|
Outputs
|
4 to 20 mA
Relay |
|
Inputs
|
None
|
|
Power supply
|
24 V DC (20...30 V DC)
|
|
Hazardous area approvals
|
FM CSA
|
|
Product Safety
|
CE, EAC
|
