Overview

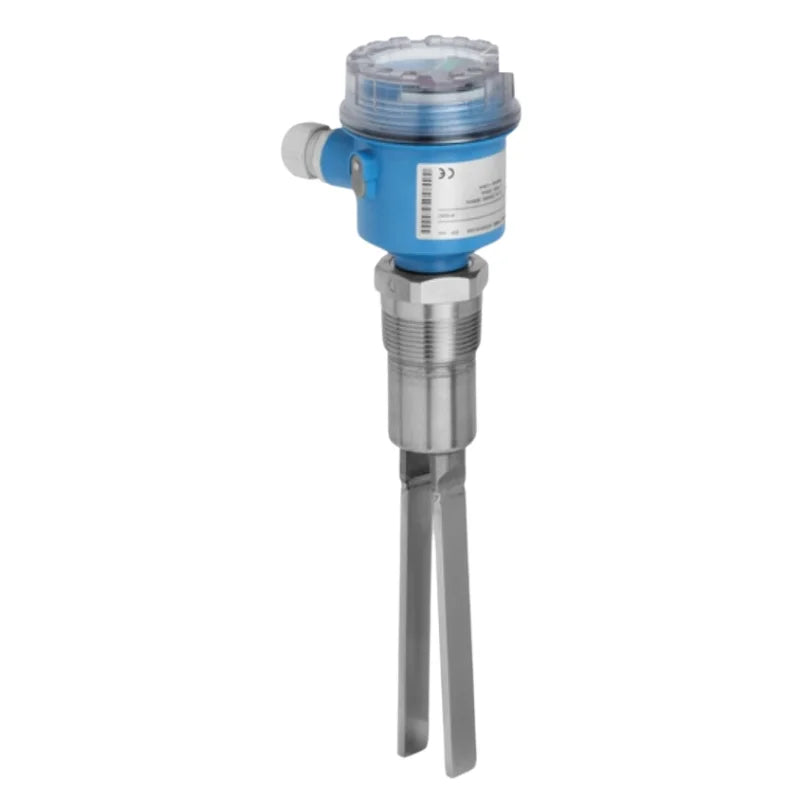

Robust point level switch for fine-grained bulk solids also for hazardous areas.
Specs at a glance
* Process temperature
-50°C ... 280°C
(-60°F ... 540°F)
* Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi)
* Min. density of medium
Standard fork: 10 g/l
Short fork: 50 g/l
-50°C ... 280°C
(-60°F ... 540°F)
* Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi)
* Min. density of medium
Standard fork: 10 g/l
Short fork: 50 g/l
Field of application
Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulkdensity. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas.
Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
Point level switch for fine grained solids and powder.
* Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
* Temperature: -50 to +280°C (-60 to +540°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 145mm, 200mm
* Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
* International explosion protection certificates
Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
Point level switch for fine grained solids and powder.
* Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
* Temperature: -50 to +280°C (-60 to +540°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 145mm, 200mm
* Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
* International explosion protection certificates
Benefits
* SIL2 in accordance with IEC 61508
* No mechanically moved parts, free of maintenance
* Measurement not affected by build-up or external vibration
* Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
* Build-up and abrasion display selectable, density setting and switching delay selectable
* Choice of coated or polished sensor
* Build-up and corrosion detection
* No mechanically moved parts, free of maintenance
* Measurement not affected by build-up or external vibration
* Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
* Build-up and abrasion display selectable, density setting and switching delay selectable
* Choice of coated or polished sensor
* Build-up and corrosion detection
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Soliphant FTM50
|
|
Material
|
selectable:
316L 3,2um 316L 0,8um 316L PTFE coated (to avoid build-up) 316L ETFE coated (to avoid corrosion) |
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Compact point level switch for fine grained solids and powder
Grain size <= 10 mm (<= 0.39 in) Fork sensor No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside |
|
Specialities
|
Build-up and corrosion detection
Remote version 3 temperature versions available SIL 2 |
|
Supply / Communication
|
10-55V DC PNP 3-wire
19-253V AC 2-wire 19...253V AC / 19V...55V DC 2 relay contact 8/16mA NAMUR PFM |
|
Ambient Temperature
|
-50°C ... 70°C
(-60°F ... 160 °F) |
|
Process Temperature
|
-50°C ... 280°C
(-60°F ... 540°F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum ... 25 bar
(Vacuum ... 360 psi) |
|
Min. Density Of Medium
|
Standard fork: 10 g/l
Short fork: 50 g/l |
|
Main Wetted Parts
|
selectable:
316L 3,2um 316L 0,8um 316L PTFE coated (to avoid build-up) 316L ETFE coated (to avoid corrosion) |
|
Process Connection
|
Thread
R 1 1/2" 1 1/4" NPT 1 1/2" NPT EN Flange DN50...DN100 ASME Flange 2"...4" JIS Flange 50A...100A |
|
Process Connection Hygienic
|
Tri-Clamp ISO2852
|
|
Sensor Length
|
Standard: 200mm (8")
Short: 145mm (5.7") |
|
Communication
|
DC PNP 2-wire
AC Thyristor DPDT relay 8/16mA NAMUR PFM |
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC
|
|
Safety Approvals
|
SIL
|
|
Design Approvals
|
EN 10204-3.1
|
|
Options
|
Glass cover
Temperature spacer EN10204-3.1 |
|
Components
|
PFM: FTL325P, FTL375P
NAMUR: FTL325N, FTL375N |
