Overview

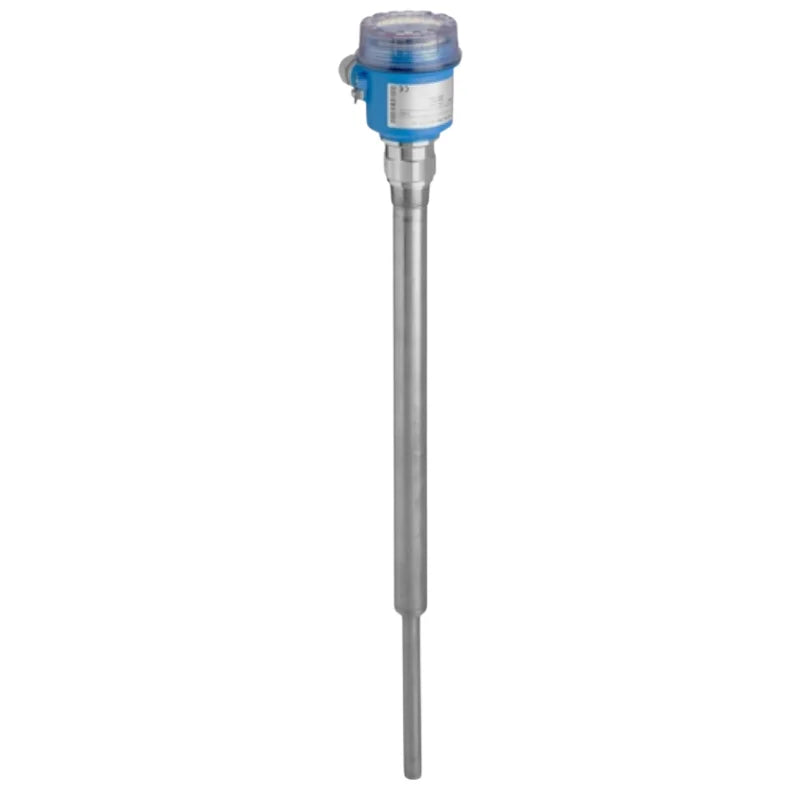

Compact limit switch with extension tube for bulk solids with stainless steel housing (316L)
* Process temperature
-40°C ... 150°C
(-40°F ... 300°F)
* Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi)
* Min. density of medium
200 g/l
-40°C ... 150°C
(-40°F ... 300°F)
* Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi)
* Min. density of medium
200 g/l
Field of application
Soliphant FTM21 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The
various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Point level switch for fine grained solids
* Process connections: Threads
* Temperature: -40 to +150°C (-40 to +300°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 500mm, 1,000mm, 1,500mm
* Sensor material: 316L
* International explosion protection certificates
various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Point level switch for fine grained solids
* Process connections: Threads
* Temperature: -40 to +150°C (-40 to +300°F)
* Pressure: -1 to +25bar (-14.5 to +360psi)
* Sensor length: 500mm, 1,000mm, 1,500mm
* Sensor material: 316L
* International explosion protection certificates
Benefits
* No calibration required, easy commissioning (plug and play)
* Measurement not affected by build-up or external vibration
* No mechanically moved parts, free of maintenance
* Sensor material 316L, abrasion resistant even with building materials
* Plastic housing with cover with sight glass, switch status visible from outside;
also aluminium housing available
* Not affected by flow noises
* Available with explosion protection certificates
* Measurement not affected by build-up or external vibration
* No mechanically moved parts, free of maintenance
* Sensor material 316L, abrasion resistant even with building materials
* Plastic housing with cover with sight glass, switch status visible from outside;
also aluminium housing available
* Not affected by flow noises
* Available with explosion protection certificates
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Soliphant FTM21
|
|
Material
|
316L
|
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Solids
|
|
Characteristic / Application
|
Point level switch for fine grained solids
Grain size <= 25 mm (<= 0.98 in) Single rod No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside Tube extension |
|
Supply / Communication
|
10 - 45 VDC
19 - 253 VAC relay DC PNP 10 - 45 V |
|
Ambient Temperature
|
-50°C ... 70°C
(-60°F ... 160 °F) |
|
Process Temperature
|
-40 °C...+150 °C
(-40 °F...+302 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum ... 25 bar
(Vacuum ... 360 psi) |
|
Min. Density Of Medium
|
200 g/l
|
|
Main Wetted Parts
|
316L
|
|
Process Connection
|
Thread
R 1" R 1 1/2" 1 1/4" NPT 1 1/2" NPT |
|
Sensor Length
|
500 mm (20")
1000 mm (40") 1500 mm (60") |
|
Communication
|
DPDT relay
DC PNP max 350 mA |
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC
|
|
Options
|
Sliding sleeve available
|
