Overview

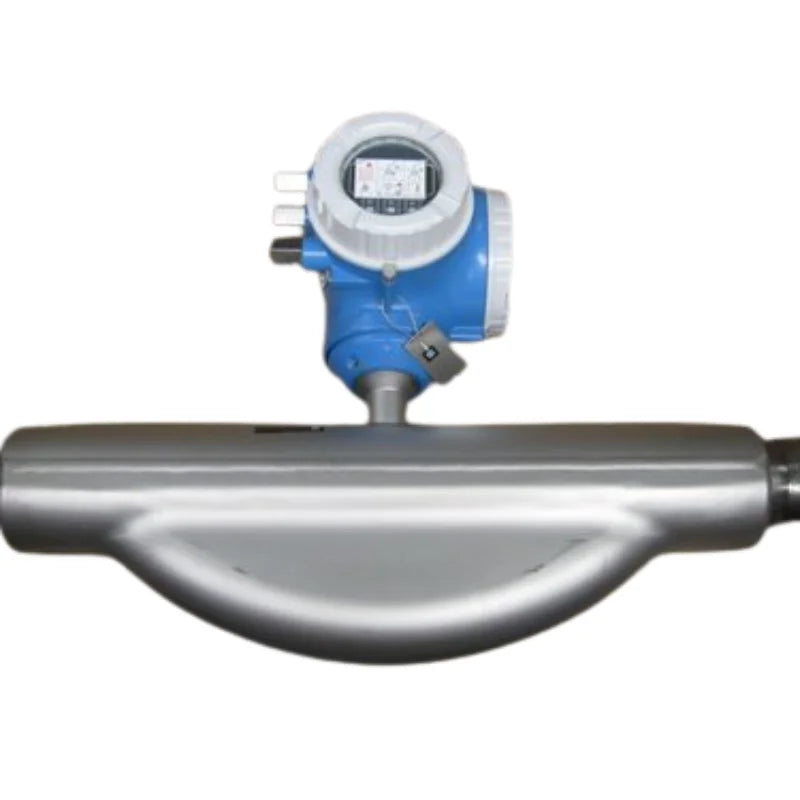

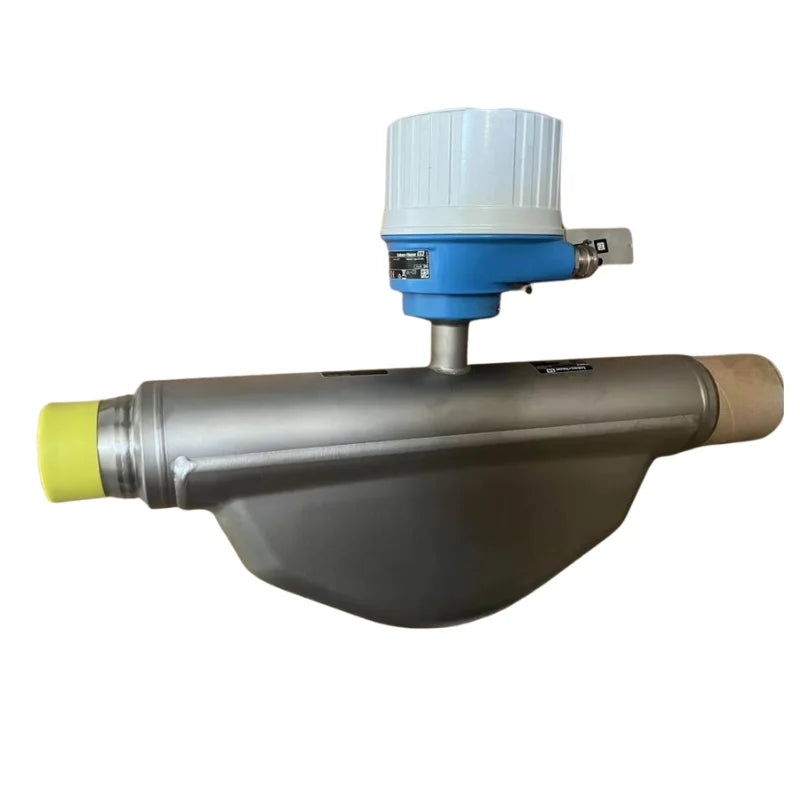

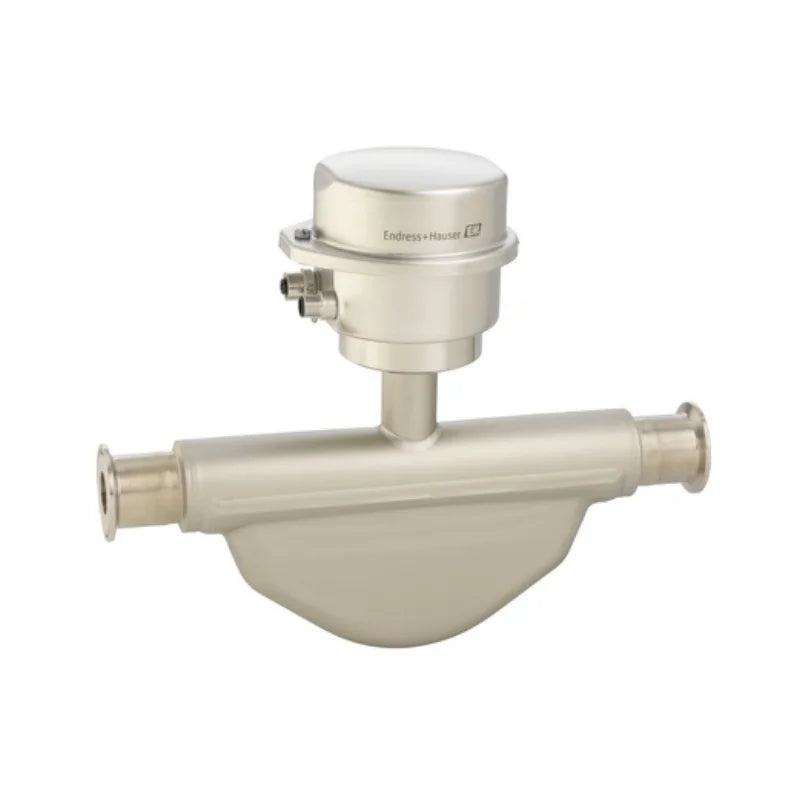

Endress+Hauser 8E1C Proline Promass E100 Coriolis Flowmeter is a Mid-range Coriolis flowmeter with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option)
Volume flow (liquid): ±0.15 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 180 000 kg/h (0 to 6600 lb/min)
* Medium temperature range
–40 to +150 °C (–40 to +302°F)
* Max. process pressure
PN 100, Class 600, 63K
* Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Application
The robust Promass E has a long-standing reputation as reliable solution accurately measuring liquids and gases in a wide range of standard applications. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators.
Heartbeat Technology enables measurement reliability and compliant verification.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Accurate measurement of liquids and gases for a wide range of standard applications.
Device properties
* Compact dual-tube sensor
* Medium temperature up to +150 °C (+302 °F)
* Process pressure: up to 100 bar (1450 psi)
* Robust, ultra-compact transmitter housing
* High ingress protection: IP69
* Local display available
Benefits
* Cost-effective – multipurpose device; an alternative to conventional volumetric flowmeters
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Space-saving transmitter – full functionality on the smallest footprint
* Time-saving local operation without additional software and hardware – integrated web server
* Integrated verification – Heartbeat Technology
Specification
| item | value |
| Warranty | 1 Year |
| Customized support | OEM |
| Place of Origin | Switzerland |
| Brand Name | Endress+Hauser |
| Model Number | Promass E100 |
| Type | Coriolis meters, Coriolis flowmeter |
| Measuring Principle |
Coriolis |
| Product Headline | Flowmeter with minimized total cost of ownership and an ultra-compact transmitter. Accurate measurement of liquids and gases for a wide range of standard applications. |
| Sensor Features | Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi). |
| Transmitter Features | Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available. |
| Nominal Diameter Range | DN 8 to 80 (⅜ to 3") |
| Wetted Materials | Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L) |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Max. Measurement Error | Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³ |
| Measuring Range | 0 to 180 000 kg/h (0 to 6600 lb/min) |
| Max. Process Pressure | PN 100, Class 600, 63K |
| Medium Temperature Range | –40 to +150 °C (–40 to +302°F) |
| Ambient Temperature Range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
| Sensor Housing Material | 1.4301 (304), corrosion resistant |
| Transmitter Housing Material | Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304) |
| Degree Of Protection | Standard: IP66/67, type 4X enclosure Option: IP69 |
| Display/Operation | 4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible |
| Outputs | 4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
| Inputs | None |
| Digital Communication | HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET |
| Power Supply | DC 20 to 30 V |
| Hazardous Area Approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC |
| Product Safety | CE, C-Tick, EAC marking |
| Metrological Approvals And Certificates | LR approval, DNV approval, ABS approval, BV approval, CCS approval |
| Pressure Approvals And Certificates | PED, CRN |
| Material Certificates | 3.1 material |
| Hygienic Approvals And Certificates | 3-A, EHEDG, cGMP |
