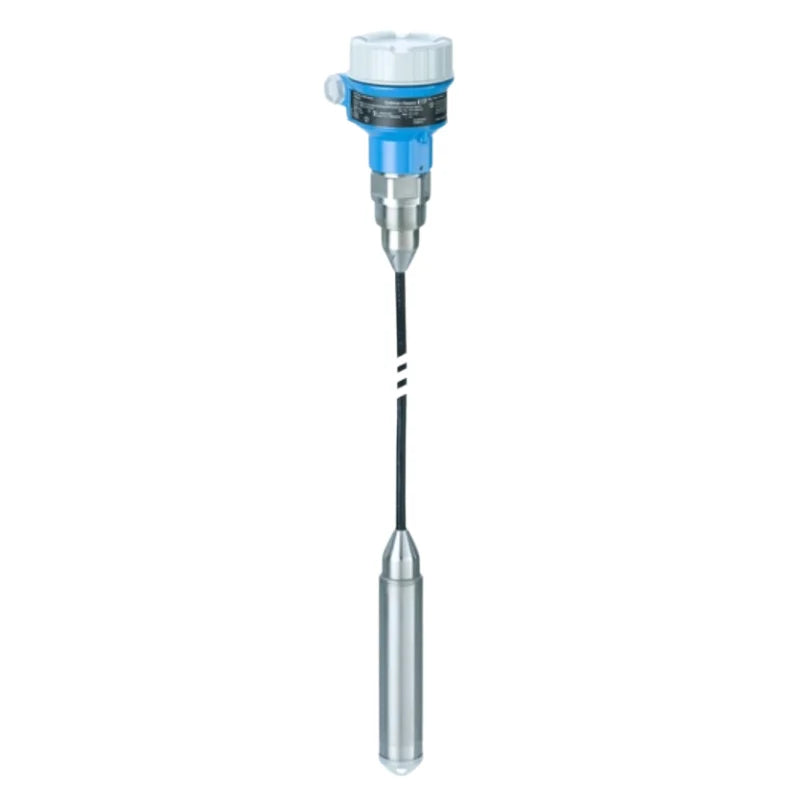

Pressure sensor with Contite measuring cell for hydrostatic level measurement.
Specs at a glance
* Accuracy
Standard 0.2%
Optional 0.1%
* Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F
* Pressure measuring range
100 mbar...10 bar
(1.5 psi...150 psi)
* Process pressure / max. overpressure limit
40 bar (600 psi)
* Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh
* Max. measurement distance
100 m (328 ft) H2O
* Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP
* Measuring cell
100 mbar...10 bar
(1.5 psi...150 psi)
Standard 0.2%
Optional 0.1%
* Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F
* Pressure measuring range
100 mbar...10 bar
(1.5 psi...150 psi)
* Process pressure / max. overpressure limit
40 bar (600 psi)
* Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh
* Max. measurement distance
100 m (328 ft) H2O
* Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP
* Measuring cell
100 mbar...10 bar
(1.5 psi...150 psi)
Field of application

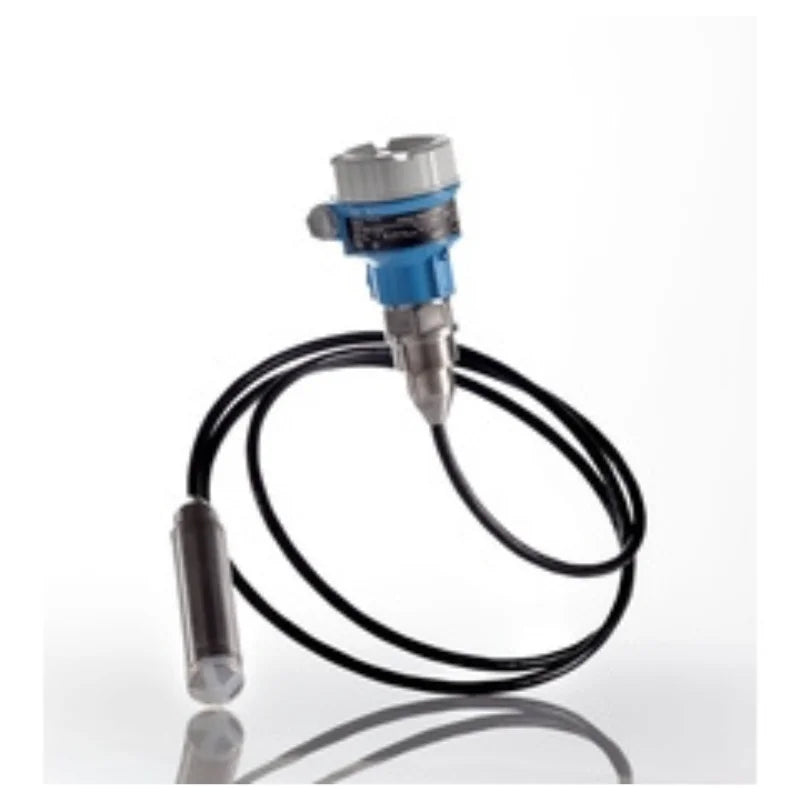

The Deltapilot FMB52 is a cable version including a fixed process connection. This device with the Contite measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.
For level measurement.
* Process connections: Threads and flanges
* Temperature: With PE cable: -10 to +70°C (+14 to +158°F),
with FEP cable: -10 to +80°C (14 to 176°F)
* Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)
* Accuracy: ±0.2%, ±0.1% (option)
* International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval
For level measurement.
* Process connections: Threads and flanges
* Temperature: With PE cable: -10 to +70°C (+14 to +158°F),
with FEP cable: -10 to +80°C (14 to 176°F)
* Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)
* Accuracy: ±0.2%, ±0.1% (option)
* International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval
Benefits
* Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
* Modular concept for easy replacement of display or electronics
* Seamless and independent system integration (HART/PA/FF)
* Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus
* International usage thanks to a wide range of approvals
* Modular concept for easy replacement of display or electronics
* Seamless and independent system integration (HART/PA/FF)
* Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus
* International usage thanks to a wide range of approvals
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Deltapilot FMB51
|
|
Measuring Principle
|
Hydrostatic pressure
|
|
Characteristic
|
Pressure transmitter for hydrostatic level measurement with flush mounted metallic Contite measuring cell:
Hermetically sealed, condensate-resistant, climatic-proofed and with lowest temperature influences Cable version |
|
Supply Voltage
|
4...20 mA HART
10,5...45 VDC (Non Ex): Ex ia: 10,5...30 VDC PROFIBUS PA: 9...32 VDC (Non Ex) FOUNDATION Fieldbus: 9...32 VDC (Non Ex) |
|
Reference Accuracy
|
Standard 0.2%
Optional 0.1% |
|
Long Term Stability
|
0.05 % of URL/year
|
|
Process Temperature
|
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F |
|
Ambient Temperature
|
-40°C...85°C
(-40°F...185°F) |
|
Measuring Cell
|
100 mbar...10 bar
(1.5 psi...150 psi) |
|
Smallest Calibratable Span
|
10 mbar (1.45 psi)
|
|
Max. Turn Down
|
100:1
|
|
Max. Overpressure Limit
|
40 bar (600 psi)
|
|
Process Connection
|
Thread:
G1 1/2, MNPT1 1/2 Flange: DN40...DN100, ASME 2"...4", JIS 10K |
|
Material Process Membrane
|
316L, AlloyC,
Gold-Rhodium PE, FEP |
|
Material Gasket
|
Viton, EPDM, Kalrez, none
|
|
Fill Fluid
|
Inert oil,
Synthetic oil |
|
Material Housing
|
316L, Die-cast aluminum
|
|
Communication
|
4...20 mA HART
PROFIBUS PA FOUNDATION Fieldbus |
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex
|
|
Safety Approvals
|
Overfill protection WHG
SIL |
|
Design Approvals
|
EN10204-3.1
NACE MR0175 |
|
Drinking Water Approvals
|
KTW/ NSF/ ACS
|
|
Specialities
|
Modularity to differential pressure and process pressure devices (replacable display, universal electronics)
Diagnostic functions |
