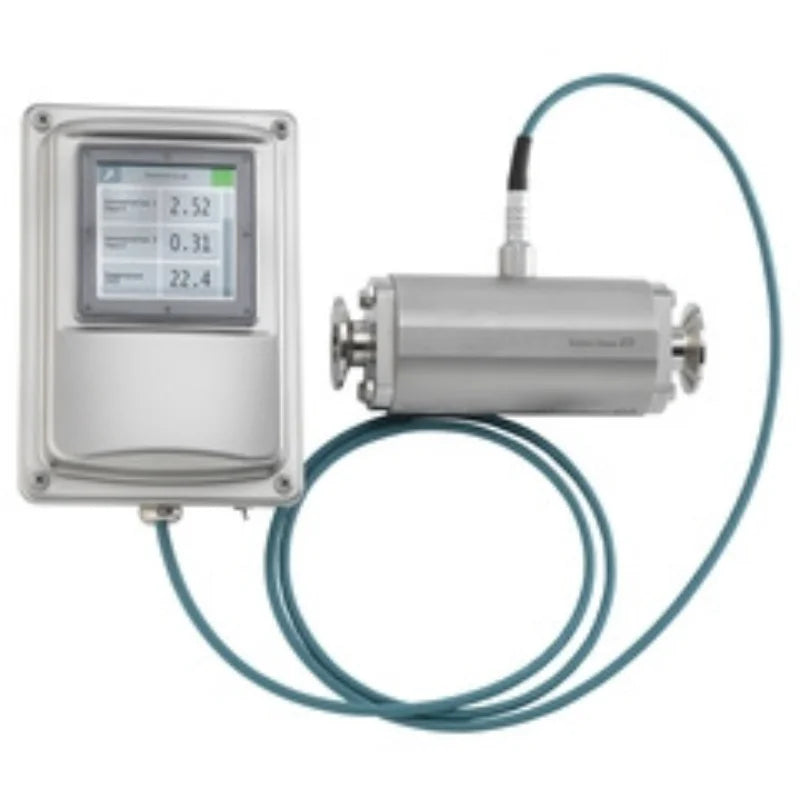

Endress+Hauser Teqwave HFIT–Ultrasonic Concentration Meter

Availability: In stock

Product type: Analyzer

Vendor: Endress+Hauser

Regular price ~~$500.00~~ $500.00 Sale

Overview Inline device with best-in-class hygienic design – plug and play for food and beverage processes. Specs at a glance * Max. measurement error Density: ±0.01g/cm³ Temperature: ±0.5K...

Regular price ~~$500.00~~ $500.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

Inline device with best-in-class hygienic design – plug and play for food and beverage processes.

Specs at a glance

* Max. measurement error
Density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s
* Measurement range
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)
Density 0.7 to 1.5 g/cm³
* Measuring range
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F)
Density 0.7 to 1.5 g/cm³
* Medium temperature range
0 to 120°C (32 to 248 °F)
* Process temperature
0 to 120°C (32 to 248 °F)
* Max. process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)
* Process pressure
max. 16 bar at 20 °C (232 psi at 68 °F)

Field of application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. End customers and equipment manufacturers value its highly accurate in situ concentration measurement and hygienic design. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs by flexible definition and extension of your application range.
* The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
* Continuous quality monitoring of beverages and in cleaning processes
Device properties
* Nominal diameter: DN 25 (1")
* Accurate and independent of flow profile
* Industry-compliant, easy installation via DIN rail
* 3.5" TFT color touch screen or LED indication
* 4-20 mA, Modbus TCP

Benefits

* High accuracy and repeatability – concentration calculation with latest algorithms
* Fulfilment of hygienic requirements – easily cleanable full-bore sensor
* Full transparency – constant monitoring of product quality without sampling
* Highest process safety – reliable metering due to robust, maintenance-free sensor
* Customized usage – innovative application concept, expendable for changing measuring tasks
* Simplified process control – user-friendly operation and clear status visualization
* Local data backup – integrated data storage for measured values up to 7,5 years

Specification

item	value
Warranty	1 Year
Type	Ultrasonic concentration meter
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Teqwave H
Material	Stainless steel
Product Headline	Inline device with best-in-class hygienic design – plug and play for food and beverage processes. High accuracy and repeatability – concentration calculation with latest algorithms. Continuous quality monitoring of beverages and in cleaning processes.

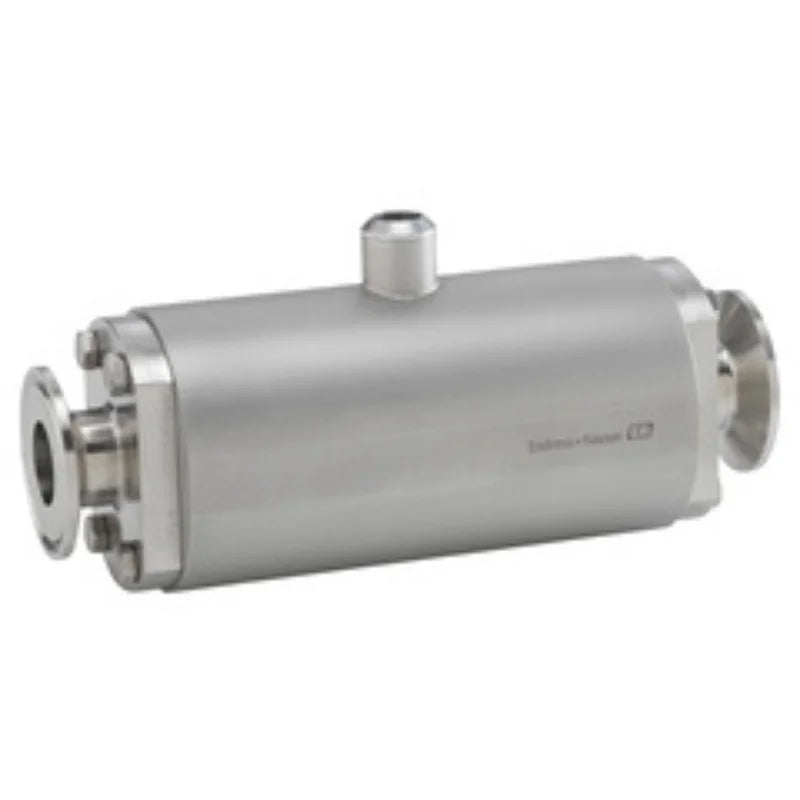

Sensor Features	Fulfilment of hygienic requirements – easily cleanable full-bore sensor. Full transparency – constant monitoring of product quality without sampling. Highest process safety – reliable metering due to robust, maintenance-free sensor. Nominal diameter: DN 25 (1"). Accurate and independent of flow profile. Sensor housing made of stainless steel (3-A, EHEDG).

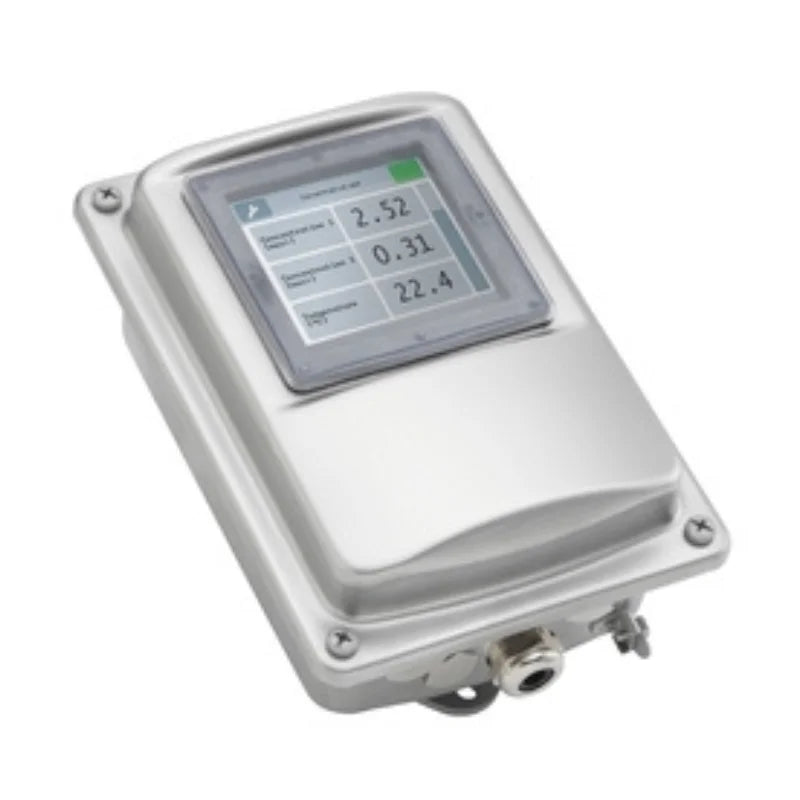

Transmitter Features	Customized usage – innovative application concept, expendable for changing measuring tasks. Simplified process control – user-friendly operation and clear status visualization. Local data backup – integrated data storage for measured values up to 7,5 years. Industry-compliant, easy installation via DIN rail. 3.5" TFT color touch screen or LED indication. 4-20 mA, Modbus TCP.
Nominal Diameter Range	DN 8 (3/8“) to DN 25 (1“)
Measured Variables	Concentration, density, sound velocity, temperature
Max. measurement error	Density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: 2m/s
Measuring Range	Concentration According to concentration app data sheet, maximum 0 to 100 % Sound velocity 600 to 2000 m/s Temperature concentration app data sheet, maximum 0 to +100 °C (32 to +212 °F) Density 0.7 to 1.5 g/cm³
Max. Process Pressure	max. 16 bar at 20 °C (232 psi at 68 °F)
Medium Temperature Range	0 to 120°C (32 to 248 °F)
Ambient Temperature Range	0 to 50 °C (32 to 122 °F)
Sensor Housing Material	Stainless steel V4A 1.4571
Degree Of Protection	Sensor: IP68 (with cable plugged in), IP66 (without cable connector) Transmitter: IP40
Display/Operation	LED status indication TFT color touch display
Outputs	4-20mA / Modbus TCP
Power Supply	Power supply
Hazardous Area Approvals	Non-hazardous area UK; Non-hazardous area
Product Safety	CE, C-tick
