Overview
For continuous level measurement in conductive liquids。
Specs at a glance
* Accuracy
< 1%
* Process temperature
-40 °C ... 100 °C
(-40 °F ... 212 °F)
* Process pressure / max. overpressure limit
Vacuum ... 10 bar
(Vacuum ... 145 psi)
* Max. measurement distance
2.5 m (8 ft)
* Main wetted parts
Probe rods:
316L/1.4404 / PP
Option: carbon fibre PP coated
< 1%
* Process temperature
-40 °C ... 100 °C
(-40 °F ... 212 °F)
* Process pressure / max. overpressure limit
Vacuum ... 10 bar
(Vacuum ... 145 psi)
* Max. measurement distance
2.5 m (8 ft)
* Main wetted parts
Probe rods:
316L/1.4404 / PP
Option: carbon fibre PP coated
Field of application

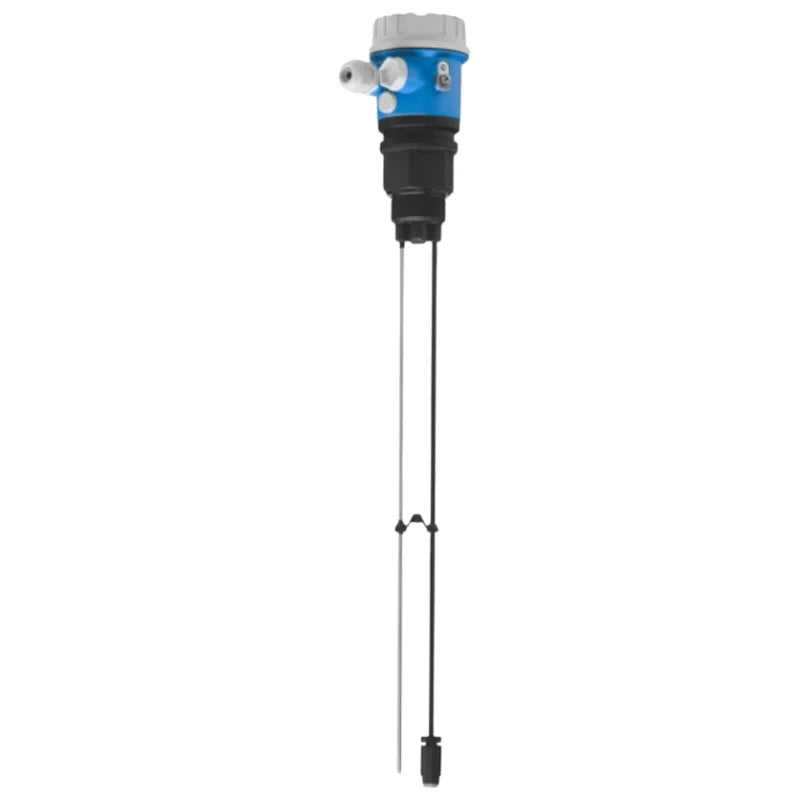

Liquicap FMI21 is a simple and cost-effective rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fibre, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis).
Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.
The device is preconfigured from factory 0 to 100% to probe length ordered. It can be used as of a conductivity of 30μS/cm and the measurement is independent of the dc-value (dielectric constant) of the liquid. Suited for cistern measurements.
* Process connection: Thread
* Process pressure: Vacuum to 10bar (vacuum to 145psi)
* Measuring range: Up to 2.5m (8ft)
* Temperature: -40 to +100°C (-40 to +212°F)
* International explosion protection certificates, overfill prevention WHG
Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.
The device is preconfigured from factory 0 to 100% to probe length ordered. It can be used as of a conductivity of 30μS/cm and the measurement is independent of the dc-value (dielectric constant) of the liquid. Suited for cistern measurements.
* Process connection: Thread
* Process pressure: Vacuum to 10bar (vacuum to 145psi)
* Measuring range: Up to 2.5m (8ft)
* Temperature: -40 to +100°C (-40 to +212°F)
* International explosion protection certificates, overfill prevention WHG
Benefits
* Safe and reliable function regardless of tank geometry
* No calibration necessary (factory preconfiguration)
* High quality, non-corrosive materials (carbon fibre, stainless steel) for use in aggressive liquids
* No moving parts in tank
* Cost-effective solution for continuous level measurement
* Optimized storage by simply shortening the probe rods on site
* No calibration necessary (factory preconfiguration)
* High quality, non-corrosive materials (carbon fibre, stainless steel) for use in aggressive liquids
* No moving parts in tank
* Cost-effective solution for continuous level measurement
* Optimized storage by simply shortening the probe rods on site
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquicap FMI21
|
|
Mode
|
Capacitance Level Measurement
|
|
Measuring Principle
|
Capacitive
|
|
Characteristic / Application
|
Two-rod probe
Preconfigured from factory 0%...100% High quality, non-corrosive materials (carbon fibre, stainless steel) Suitable for aggressive liquids (many acids and alkalis) |
|
Specialities
|
Probe shorting kit available
|
|
Supply / Communication
|
10 ... 30VDC
|
|
Accuracy
|
< 1%
|
|
Ambient Temperature
|
-40 °C ... 70 °C
(-40 °F ... 158 °F) |
|
Process Temperature
|
-40 °C ... 100 °C
(-40 °F ... 212 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum ... 10 bar
(Vacuum ... 145 psi) |
|
Main Wetted Parts
|
Probe rods:
316L/1.4404 / PP Option: carbon fibre PP coated |
|
Process Connection
|
G 1½
NPT 1½ |
|
Sensor Length
|
Total length of probe 2.5 m
|
|
Max. Measurement Distance
|
2.5 m (8 ft)
|
|
Communication
|
4 ... 20 mA
|
|
Certificates / Approvals
|
ATEX, CSA, CSA C/US
|
|
Safety Approvals
|
Overfill prevention WHG
|
|
Options
|
Display
|
|
Application Limits
|
Changing, non-conductive
media, conductivity < 3 0 μS/cm Highly viscous liquids > 2 000 cst |
