YOKOGAWA Infrared Gas Analyzer IR800G, IR810G

Availability: In stock

Product type: Gas Analyzers

Regular price ~~$800.00~~ $800.00 Sale

Overview Infrared Gas Analyzer IR800G, IR810G Responding to a Wide Range of Needs from Environmental Issues to Combustion Control The IR800G, IR810G Infrared Gas Analyzer uses non-dispersive infrared...

Regular price ~~$800.00~~ $800.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

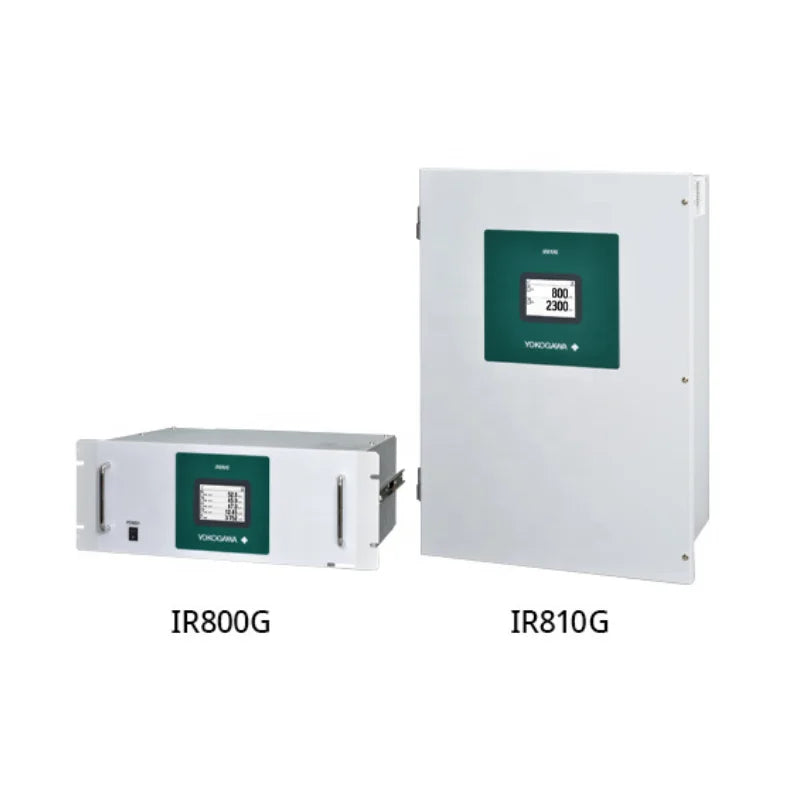

Infrared Gas Analyzer IR800G, IR810G

Responding to a Wide Range of Needs from Environmental Issues to Combustion Control

The IR800G, IR810G Infrared Gas Analyzer uses non-dispersive infrared method (NDIR) to measure the concentration of NO, SO2, CO,CO2, and CH4 components in the sample gas, and it measures O2 using the paramagnetic or zirconia method.

Benefits

Up to five components, including O2 (up to four components excluding O2), can be measured simultaneously. Using a single beam system for measurement ensures low maintenance requirements to maintain the zero point and excellent stability over a long period of time.

The color touch panel interface allows for intuitive operation and high visibility. Ideal for gas concentration measurement in exhaust incinerators, boiler combustion exhaust gases, and various industrial furnaces.

The IR800 infrared gas analyzer can measure concentrations O2 and up to 4 other components (NO, SO2, CO, CO2, CH4) in a sample gas using a non-dispersive infrared (NDIR) method. And as environmental regulations are becoming stricter, we have achieved stable measurement with less drift.

The Active Zero-Drift Cancellation Mechanism achieves stable measurement of low concentrations, which are traditionally difficult to measure. It also includes Engineering/ASI functions—no need to add them separately.

Specification

Item	value
Warranty	1 Year
Type	Digital Gas Detector, COMBUSTIBLE GAS DETECTOR, Infrared (IR) Gas Detector, Multi-Gas Detector
Customized support	OEM, ODM, OBM
Place of Origin	Japan
Brand Name	YOKOGAWA
Model Number	IR800G, IR810G
Power	100 to 240 V AC
Material	316SS stainless steel
Usage	Industrial, laboratory
Measurable Gas Components	NO SO2 CO CO2 CH4 O2
Output signal	4-20mA
Display	QVGA LCD color touch panel
Dimensions IR800G	483 x 492 x 177 mm
Dimensions IR810G	412 x 240 x 615 mm
Weight	16-17 kg
NO/SO2/CO/CO2/CH4 Repeatability	± 0.5% F.S.
Linearity	±1% F.S.
Response time	30 sec. or less
