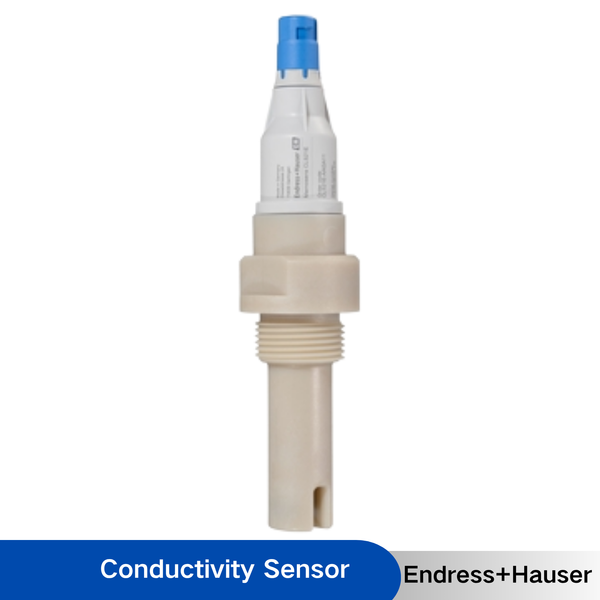

Endress+Hauser CLS21E Memosens 2.0 Contacting Conductivity Sensor

Availability: In stock

Product type: Liquid Analysis

$763.00 Regular price ~~$890.00~~

Overview Memosens 2.0 contacting conductivity sensor for surface and drinking water monitoring Application Memosens CLS21E is a robust conductivity sensor for all water applications with medium conductivities. It...

$763.00 Regular price ~~$890.00~~

Qty

Application

Memosens CLS21E is a robust conductivity sensor for all water applications with medium conductivities. It provides you with precise and reliable measured values for optimum quality monitoring. The sensor is corrosion-free and features high mechanical stability ensuring a long operating life. Thanks to Memosens 2.0 digital technology, CLS21E combines maximum process and data integrity with simple operation. It facilitates predictive maintenance and provides the perfect basis for IIoT services.

Memosens CLS21E measures conductivity in all water applications, such as:

Potable water treatment
Desalination plants
Industrial water treatment
River/lake monitoring

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Benefits

Reliable and accurate measured values at medium conductivities ensure precise monitoring of water quality.

Robust design for long durability and low maintenance: The sensor is corrosion-free and features high mechanical and chemical stability.

Quality certificate stating the individual cell constant allows accurate measurement.

Non-contact inductive signal transmission ensure maximum process and data integrity.

Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.

Specification

item	value
Grade	Industrial
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	CLS21E
Material	316L
Mode	Conductivity Sensor
Measuring Principle	Conductive
Application	Surface water + water Waste water Process industry Media separation Industrial water
Characteristic / Application	Digital 2-electrode conductivity sensor
Measuring range	k=1: 10 µS/cm to 20 mS/cm
Measuring principle	Conductive conductivity cell with graphite electrodes
Design	2-electrode conductivity cell with parallel arranged electrodes
Material	Sensor shaft: PES Electrodes: graphite
Dimension	Diameter: 24 mm (0.94 inch) Length: 61 mm (2.40 inch)
Main Wetted Parts	316L
Process temperature	-20 to 135 °C at 3.5 bar abs (-4 to 275 °F at 50 psi)
Process pressure	17 bar abs at 20 °C (246 psi at 68 °F)
Temperature sensor	Pt1000
Ex certification	ATEX, CSA, NEPSI, EAC Ex, IECEx, INMETRO
Connection	Process connection: DN25, DN40, G1, NPT 1" Sensor connection: Inductive, digital connection head with Memosens 2.0 technology
Ingress protection	IP68
