Overview

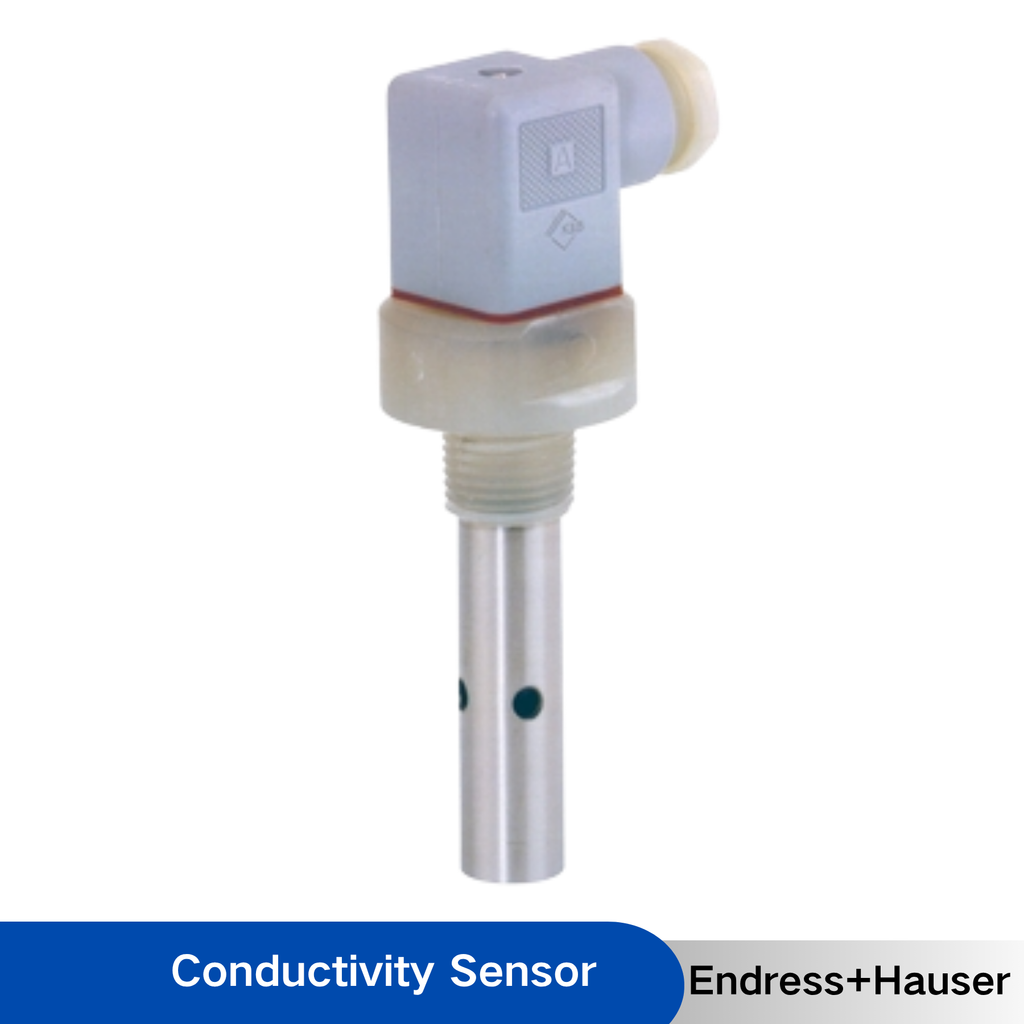

Conductive conductivity sensor for simple standard applications in pure and ultrapure water
Application
Condumax CLS19 measures conductivity in the low measuring ranges. It performs reliably and accurately in a wide range of applications. Designed for low maintenance and a long operating life, the sensor offers you best value for money.
Condumax CLS19 measures conductivity in pure and ultrapure water applications for the monitoring and control of:
-
Ion exchangers
-
Reverse osmosis
-
Cooling water
-
Distillation
-
Chip cleaning
Benefits
-
Reliable and accurate measuring values at low conductivities
-
Best price-performance ratio
-
Easy installation with threaded connection
-
Robust design for high durability
-
Different cell constants provide a wide measuring range
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
CLS19 |
|
Mode
|
Conductivity Sensor
|
|
Measuring Principle
|
Conductive
|
|
Application |
Pure and ultrapure water
|
|
Characteristic / Application
|
2-electrode conductivity cell for pure water applications.
|
|
Measuring range |
k=0,01: 0-20 µS/cm
k=0,1: 0-200 µS/cm |
|
Measuring principle |
Conductive conductivity cell
|
|
Design |
2-electrode conductivity cell with coaxially arranged electrodes
|
|
Material |
Cell shaft: PES
Electrode: Stainless steel 1.4571 |
|
Dimension |
Electrode diameter: 16 mm
(0.62 inch) |
|
Process temperature |
-max. 60°C
max. 140°F |
|
Process pressure
|
max. 6 bar at 20°C
(max.87 psi at 68°F) |
|
Temperature sensor |
Optional with integrated Pt100
|
|
Ex certification |
ATEX, CSA, NEPSI, EAC Ex, IECEx, INMETRO
|
|
Connection |
Process connection: NPT 1/2" cable:4-pole DIN-connector with Pg9 |
|
Ingress protection |
IP65 |
|
Certificates, declarations and approvals |
Quality certification |
