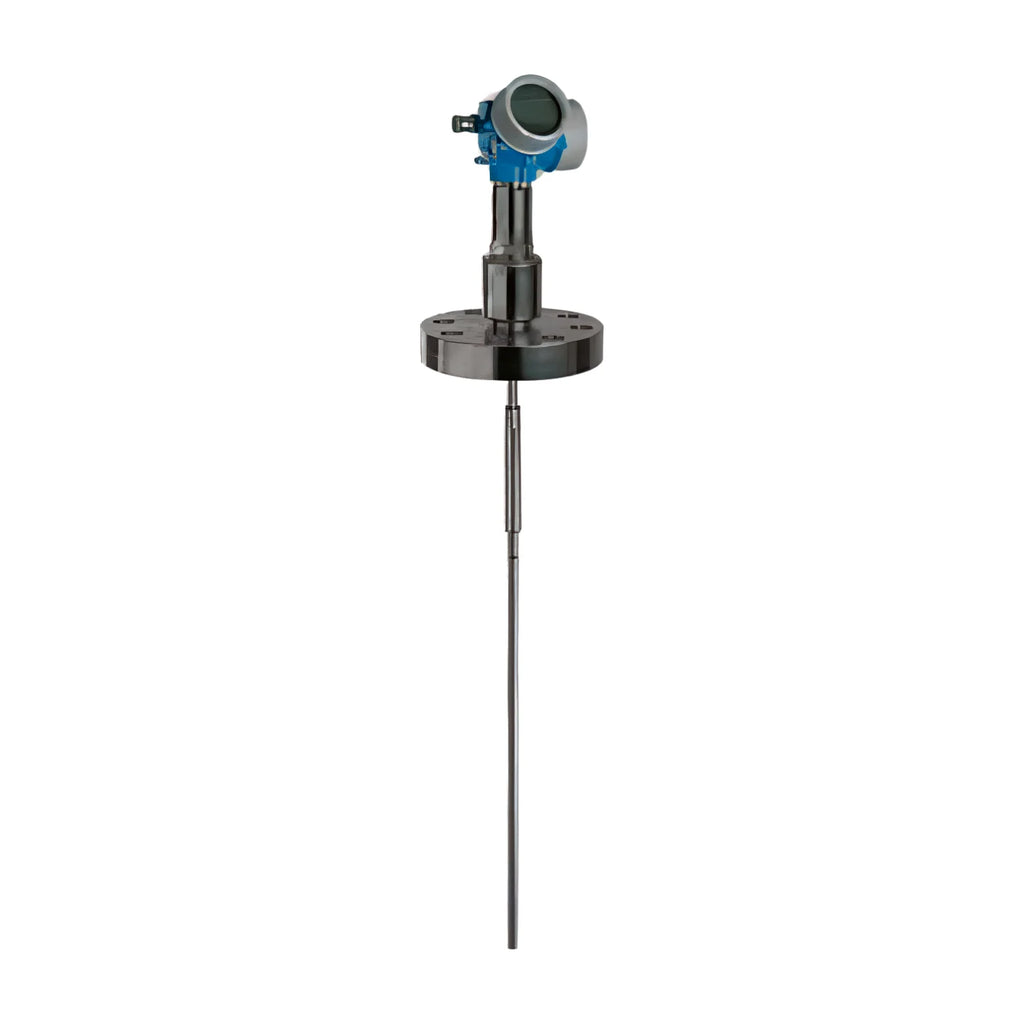

Endress+Hauser Guided Radar Measurement Time-of-Flight Levelflex FMP54

Availability: In stock

Product type: Level Measurement

Vendor: Endress+Hauser

Regular price ~~$1,600.00~~ $1,600.00 Sale

Overview For high temperature and high pressure applications in the oil & gas, chemical and power industry. Specs at a glance * AccuracyRod probe: +/- 2 mm (0.08...

Regular price ~~$1,600.00~~ $1,600.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

For high temperature and high pressure applications in the oil & gas, chemical and power industry.

Specs at a glance

* Accuracy
Rod probe: +/- 2 mm (0.08 in)
Rope probe <= 15 m (49 ft):+/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft):+/- 10 mm (0.39 in)
Coaxial probe: +/- 2 mm (0.08 in)
* Process temperature
XT: -196...+280 °C(-321...+536 °F)
HT: -196...+450 °C(-321...+842 °F)

* Process pressure / max. overpressure limit
Vacuum...400 bar (Vacuum...5800 psi)
* Max. measurement distance
Rod:10 m (33 ft) Min DK>1.6
Rope:25 m...30 m (82 ft...98 ft) Min DK>1.6;
30 m...45 m (98 ft...148 ft) Min DK >1,9
Coaxial probe: 6 m (20 ft) Min DK>1.4
* Main wetted parts
Rod probe:304, 316L, Alloy C, Ceramic
Rope probe:304, 316, 316L, Alloy C, Ceramic
Coaxial probe:304, 316L, Alloy C, Ceramic

Field of application

Levelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam boilers and toxic media like ammonia. The gas tight feedthrough guarantees additional safety. Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases. Reliable measurement in case of moving surface and foam or in changing medias.

Version with rod or rope probe.
* Process connections: Thread or flange
* Temperature: -196 to +450°C (-320 to +842°F)
* Pressure: -1 to +400bar (-14.5 to +5,800psi)
* Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)
* Accuracy: rod ±2mm (0.08")
* International explosion protection certificates, overfill prevention WHG, SIL, marine approval, steam boiler approval, 5-point linearity protocol

Benefits

* Reliable measurement even for changing product and process conditions
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability due to new Multi-Echo Tracking evaluation
* Hardware and software developed according to IEC 61508 up to SIL3
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the
control system)
* World's easiest proof test for SIL and WHG saves time and costs

Specification

Measuring Principle	Guided radar
Characteristic / Application	Premium device high pressure/ high temperature Rod probe, Rope probe, Coaxial Probe Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias
Interface measurement	Clean interfaces liquid/ liquid; Simultaneous measurement of interface and overall level
Specialities	Heartbeat Technology, Bluetooth® commissioning, Operation and maintenance SmartBlue App, HistoROM, RFID TAG for easy identification
Supply / Communication	2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus) 4-wire (HART) Bluetooth® wireless technology and App (optional)
Accuracy	Rod probe: +/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in)
Ambient temperature	-50...+80 °C (-58...+176 °F)
Process temperature	XT: -196...+280 °C (-321...+536 °F) HT: -196...+450 °C (-321...+842 °F)
Process pressure / max. overpressure limit	Vacuum...400 bar (Vacuum...5800 psi)
Main wetted parts	Rod probe: 304, 316L, Alloy C, Ceramic Rope probe: 304, 316, 316L, Alloy C, Ceramic Coaxial probe: 304, 316L, Alloy C, Ceramic
Process connection	Thread: G 1 1/2, MNPT 1 1/2 Flange: ASME 2"...4", DN50...DN100, JIS 10K, 63K, Fisher Masoneilan
Sensor length	Rod probe: 10 m (33 ft) Rope probe: 45 m (148 ft) Coaxial probe: 6 m (20 ft)
Max. measurement distance	Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m...30 m (82 ft...98 ft) Min DK>1.6; 30 m...45 m (98 ft...148 ft) Min DK >1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4
Communication	4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology
Certificates / Approvals	ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex
Safety Approvals	Overfill protection WHG SIL
Design Approvals	EN 10204-3.1 NACE MR0175, MR0103 ASME B31.1, B31.3 AD2000 Steam boiler approval
Marine approval	GL/ DNV/ ABS/ LR/ BV
Options	Sensor remote with 3 m/ 9 ft cable, Remote operation via SmartBlue App using Bluetooth®
