Overview

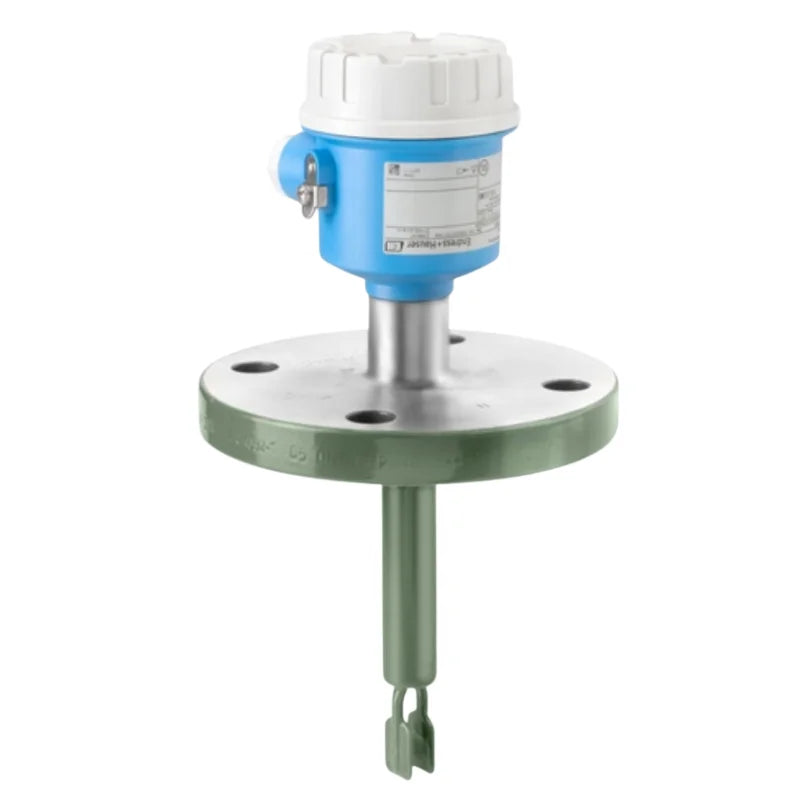

Coated point level switch for liquids for FailSafe overfill protection.
Specs at a glance
* Process temperature
–50°C...+150°C
(–58°F...+300°F)
* Process pressure / max. overpressure limit
Vacuum...40 bar
(580 psi)
* Min. density of medium
Density from 0.4 g/cm3
(0.4 SGU)
–50°C...+150°C
(–58°F...+300°F)
* Process pressure / max. overpressure limit
Vacuum...40 bar
(580 psi)
* Min. density of medium
Density from 0.4 g/cm3
(0.4 SGU)
Field of application
Liquiphant FTL85 is a coated point level switch for use in hazardous areas with all international certificates. FailSafe overfill protection in applications with functional safety up to SIL3 with one device. With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch for liquids up to SIL3.
* Process connections: Threads and flanges
* Temperature: -50 to +150°C (-76 to +300°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Sensor length: Extension pipe up to 3m (9.8ft)
* Sensor material: Enamel, ECTFE and various PFA materials
* International explosion protection certificates, overfill protection WHG, SIL
Point level switch for liquids up to SIL3.
* Process connections: Threads and flanges
* Temperature: -50 to +150°C (-76 to +300°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Sensor length: Extension pipe up to 3m (9.8ft)
* Sensor material: Enamel, ECTFE and various PFA materials
* International explosion protection certificates, overfill protection WHG, SIL
Benefits
* Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849
* Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button
* Permanent self-monitoring/internal redundancy
* 4-20mA interface (acc. to NAMUR NE 06/NE 43): easy integration via the switching unit (Nivotester FailSafe FTL825) with a two-channel output (safety contacts) and locking function or direct integration into a safety PLC
* No adjustment: quick, low-cost startup
* No mechanically moving parts: no maintenance, no wear, long operating life
* Monitoring of fork for damage, corrosion, buildup and mechanical blocking
* Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button
* Permanent self-monitoring/internal redundancy
* 4-20mA interface (acc. to NAMUR NE 06/NE 43): easy integration via the switching unit (Nivotester FailSafe FTL825) with a two-channel output (safety contacts) and locking function or direct integration into a safety PLC
* No adjustment: quick, low-cost startup
* No mechanically moving parts: no maintenance, no wear, long operating life
* Monitoring of fork for damage, corrosion, buildup and mechanical blocking
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquiphant FTL85
|
|
Material
|
With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials
|
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Coated point level switch for MIN and MAX safety applications up to SIL3,
Dual Sealing/ Second line of defense, Modular housing concept |
|
Specialities
|
Outstanding features:
- permanent LIVE signal monitors function safety - failsafe design and - high availability of the measuring values |
|
Supply / Communication
|
2-wire 4...20 mA
|
|
Ambient Temperature
|
-50°C...+70°C
(-58°F...+160°F) |
|
Process Temperature
|
–50°C...+150°C
(–58°F...+300°F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...40 bar
(580 psi) |
|
Min. Density Of Medium
|
Density from 0.4 g/cm3
(0.4 SGU) |
|
Main Wetted Parts
|
With high corrosion-resistant coating made of enamel, ECTFE and various PFA materials
|
|
Process Connection
|
Flange:
DN25...DN100, ASME 1"...4", JIS 10K...20K |
|
Sensor Length
|
Extension pipe up to 3 m (9.8 ft)
|
|
Communication
|
2-wire 4...20 mA
|
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, EAC
|
|
Safety Approvals
|
Overfill protection WHG
Leakage Detection SIL3 |
|
Options
|
AlloyC Material
PWIS free Pressure tight feed through Weather protection |
|
Components
|
Nivotester FTL825, Transmitter
|
