Overview
Compact vibration point level switch for liquids in all industries.
Specs at a glance
* Process temperature
-50 °C...+150 °C
(-58 °F...+302 °F)
* Process pressure / max. overpressure limit
Vacuum...64 bar
(Vacuum...928 psi)
* Min. density of medium
0.5g/cm³(0.4g/cm³ option)
-50 °C...+150 °C
(-58 °F...+302 °F)
* Process pressure / max. overpressure limit
Vacuum...64 bar
(Vacuum...928 psi)
* Min. density of medium
0.5g/cm³(0.4g/cm³ option)
Field of application

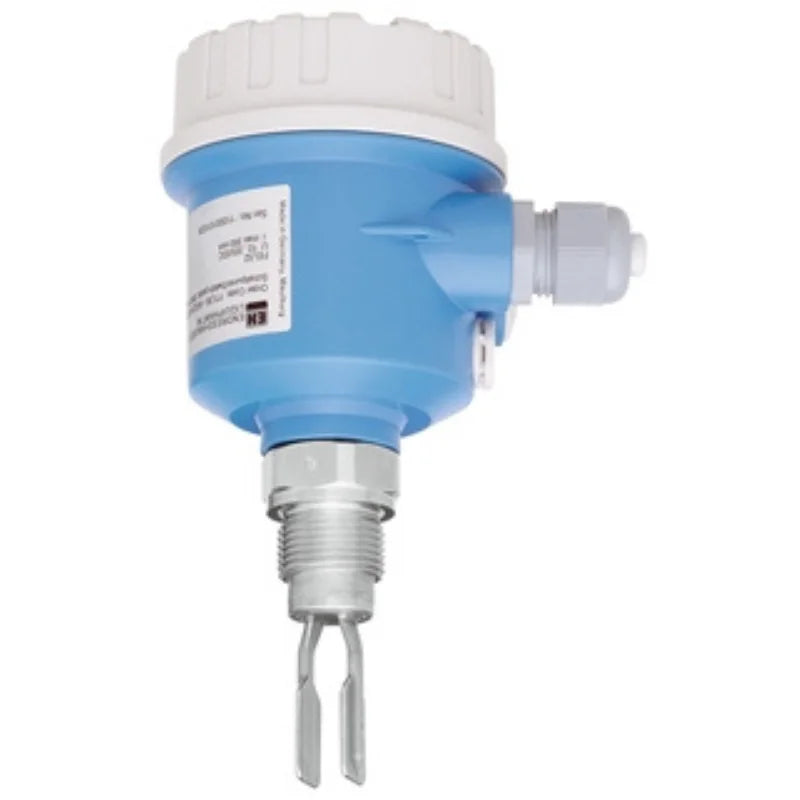

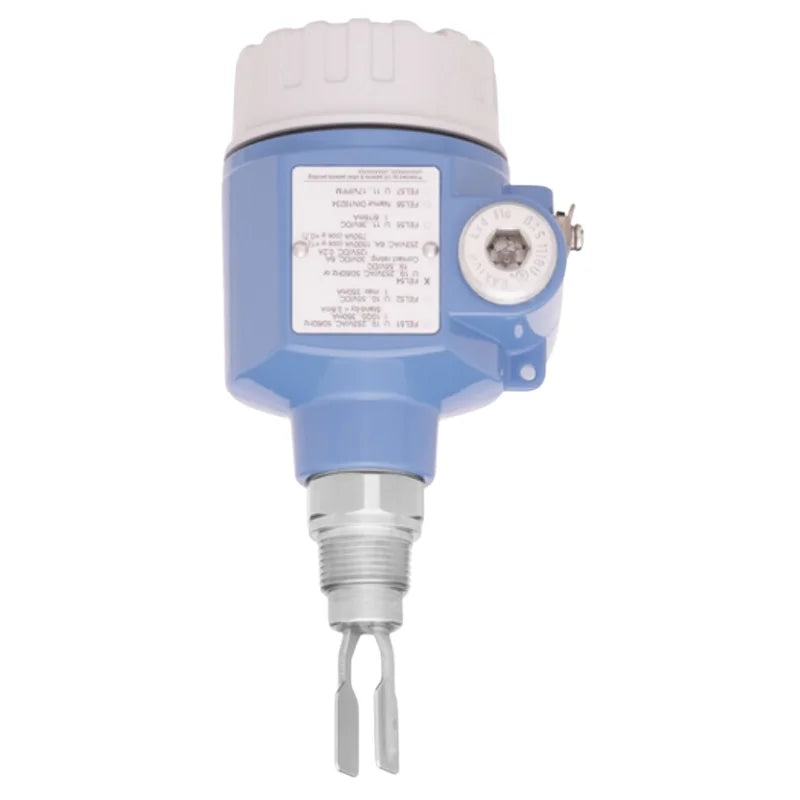

Liquiphant FTL50 is a point level switch for use in hazardous areas with all international certificates. Useable in all industries. FTL50 offers functional safety SIL2/SIL3. With the second line of defense the highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch for all liquids.
* Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
* Temperature: -50 to +150°C (-58 to +302°F)
* Pressure: -1 to +64bar (-14.5 to +928psi)
* Sensor material: 316L, Alloy
* International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Point level switch for all liquids.
* Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
* Temperature: -50 to +150°C (-58 to +302°F)
* Pressure: -1 to +64bar (-14.5 to +928psi)
* Sensor material: 316L, Alloy
* International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Benefits
* Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with IEC 61508/IEC 61511-1
* International explosion protection certificates and overfill protection certificate (WHG)
* No calibration required, easy to start up
* No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
* Second line of defense to protect the environment
* Variety of standardized process connections for all applications
* Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
* International explosion protection certificates and overfill protection certificate (WHG)
* No calibration required, easy to start up
* No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed function
* Second line of defense to protect the environment
* Variety of standardized process connections for all applications
* Stainless steel (316L) and high-corrosion resistant sensor material (Alloy)
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquiphant FTL50
|
|
Material
|
316L, Alloy
|
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Modular housing concept
wide range of process connections Analogue and bus interfaces Extensive certificate range (e.g. Ex,WHG) compact, e.g. pipes |
|
Specialities
|
Foamdetection
Detekt a densitychange second line of defense |
|
Supply / Communication
|
PROFIBUS PA
19...253V AC 10...55V DC-PNP 19...253V AC or 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
|
Ambient Temperature
|
-50°C ... 70°C
(-60°F ... 160 °F) |
|
Process Temperature
|
-50 °C...+150 °C
(-58 °F...+302 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...64 bar
(Vacuum...928 psi) |
|
Min. Density Of Medium
|
0.5g/cm³(0.4g/cm³ option)
|
|
Main Wetted Parts
|
316L, Alloy
|
|
Process Connection
|
Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1 Flange: DN25...DN100, ASME 1"...4", JIS 25A...100A |
|
Process Connection Hygienic
|
Tri-Clamp ISO2852
|
|
Sensor Length
|
|
|
Communication
|
PROFIBUS PA
19...253V AC 10...55V DC-PNP 19...253V AC or 10...55V DC 8/16mA, 11...36V DC NAMUR PFM |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
|
|
Safety Approvals
|
SIL2/ SIL3
|
|
Design Approvals
|
EN 10204-3.1
NACE MR0175, MR0103 ASME B31.3 AD2000 |
|
Marine Approval
|
GL/ ABS/ DNV
|
|
Options
|
Heavy duty stainless steel housing mainly for the oil and gas industry
|
|
Components
|
FTL325P/FTL375P Interface PFM
FTL325N/FTL375N Interface NAMUR |
|
Successor
|
Liquiphant FTL51B
|
