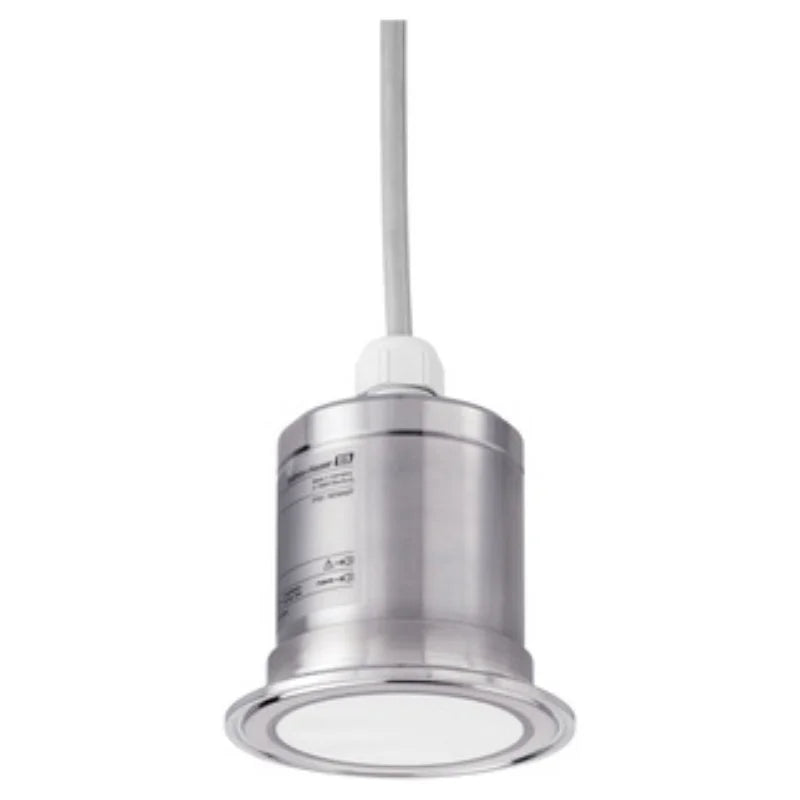

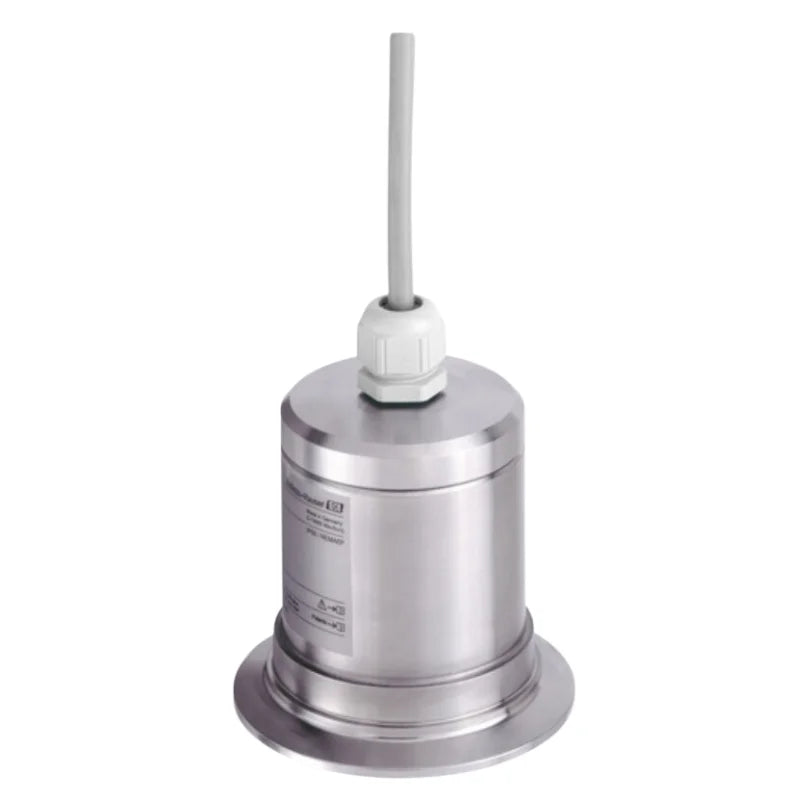

Hygienic sensor for level and flow measurement for connection to FMU9x (measuring range up to 10m)
Specs at a glance
* Accuracy
+/- 2mm + 0.17% of measured distance
* Process temperature
-40 °C ... 105 °C
(-40 °F ... 221 °F)
30 min: 135 °C / 275 °F)
* Process pressure / max. overpressure limit
0.7 bar ... 4 bar abs
(10 psi ... 58 psi)
* Max. measurement distance
Liquids: 10 m (33 ft),
Solids: 5 m (16 ft)
* Main wetted parts
316L (fully welded IP68 / NEMA 6P)
+/- 2mm + 0.17% of measured distance
* Process temperature
-40 °C ... 105 °C
(-40 °F ... 221 °F)
30 min: 135 °C / 275 °F)
* Process pressure / max. overpressure limit
0.7 bar ... 4 bar abs
(10 psi ... 58 psi)
* Max. measurement distance
Liquids: 10 m (33 ft),
Solids: 5 m (16 ft)
* Main wetted parts
316L (fully welded IP68 / NEMA 6P)
Application
The FDU91F ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. Also for flow measurement in open channels and at weirs. Measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Fully welded 316L with hygienic process connection available. Maximum measuring range in liquids 10m (33ft), solids 5m (16ft).
Continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles or in crushers. Also for flow measurement in open channels and at weirs. Used in measurements in low structural heights.
* Process connections: Thread, Tri-Clamp
* Temperature: -40 to +105°C (-40 to +221°F)
* Pressure: 0.7 to 4bar (10 to 58psi)
* Max. measuring range: Liquids 10m (33ft), solids 5m (16ft)
* Blocking distance: 0.3m (1ft)
* International explosion protection certificates, hygienic certificates
Continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles or in crushers. Also for flow measurement in open channels and at weirs. Used in measurements in low structural heights.
* Process connections: Thread, Tri-Clamp
* Temperature: -40 to +105°C (-40 to +221°F)
* Pressure: 0.7 to 4bar (10 to 58psi)
* Max. measuring range: Liquids 10m (33ft), solids 5m (16ft)
* Blocking distance: 0.3m (1ft)
* International explosion protection certificates, hygienic certificates
Benefits
* Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present
* Hermetically welded sensors (316L, 1.4404, 1.4435) for highest chemical resistance
* Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Hygienic process connections available
* Hermetically welded sensors (316L, 1.4404, 1.4435) for highest chemical resistance
* Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)
* Reduced build-up formation because of the self-cleaning effect
* Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning
* Weather resistant and flood-proof (IP 68)
* Hygienic process connections available
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Prosonic FDU91F
|
|
Material
|
316
|
|
Mode
|
Ultrasonic measurement Time-of-Flight
|
|
Measuring Principle
|
Ultrasonic
|
|
Characteristic / Application
|
Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and
transmitter |
|
Supply / Communication
|
4-wire (HART, Profibus DP)
|
|
Accuracy
|
+/- 2mm + 0.17% of measured distance
|
|
Ambient Temperature
|
-40 °C ... 105 °C
(-40 °F ... 221 °F) |
|
Process Temperature
|
-40 °C ... 105 °C
(-40 °F ... 221 °F) CIP: 30 min: 135 °C (30 min: 275 °F) |
|
Process Pressure / Max. Overpressure Limit
|
0.7 bar ... 4 bar abs
(10 psi ... 58 psi) |
|
Main Wetted Parts
|
316L (fully welded IP68 / NEMA 6P)
|
|
Process Connection
|
G / NPT 1", DN80 / 100, ASME 3" / 4"
|
|
Process Connection Hygienic
|
Tri-Clamp ISO2852, DN80 3 1/2", DN100 4"
|
|
Blocking Distance
|
0.3 m (1 ft)
|
|
Max. Measurement Distance
|
Liquids: 10 m (33 ft),
Solids: 5 m (16 ft) |
|
Communication
|
Transmitter:
4 ... 20 mA HART Profibus DP |
|
Certificates / Approvals
|
ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex
|
|
Design Approvals
|
EN 10204-3.1
|
|
Hygienic Approvals
|
3A
|
|
Components
|
Transmitter:
FMU90, FMU95 |
|
Application Limits
|
Foam / high turbulence possible:
FDU92 For tank farms scanner: FMU95 |
