Overview
The standard sensor for highest demands in bulk solids level measurement.
Specs at a glance
* Accuracy
+/- 3 mm (0.12 in)
* Process temperature
-40...+400 °C (-40...+752 °F)
* Process pressure / max. overpressure limit
Vacuum...16 bar (Vacuum...232 psi)
* Max. measurement distance
70 m (230 ft)
* Main wetted parts
316L, PEEK, PTFE, Polyamid
+/- 3 mm (0.12 in)
* Process temperature
-40...+400 °C (-40...+752 °F)
* Process pressure / max. overpressure limit
Vacuum...16 bar (Vacuum...232 psi)
* Max. measurement distance
70 m (230 ft)
* Main wetted parts
316L, PEEK, PTFE, Polyamid
Application

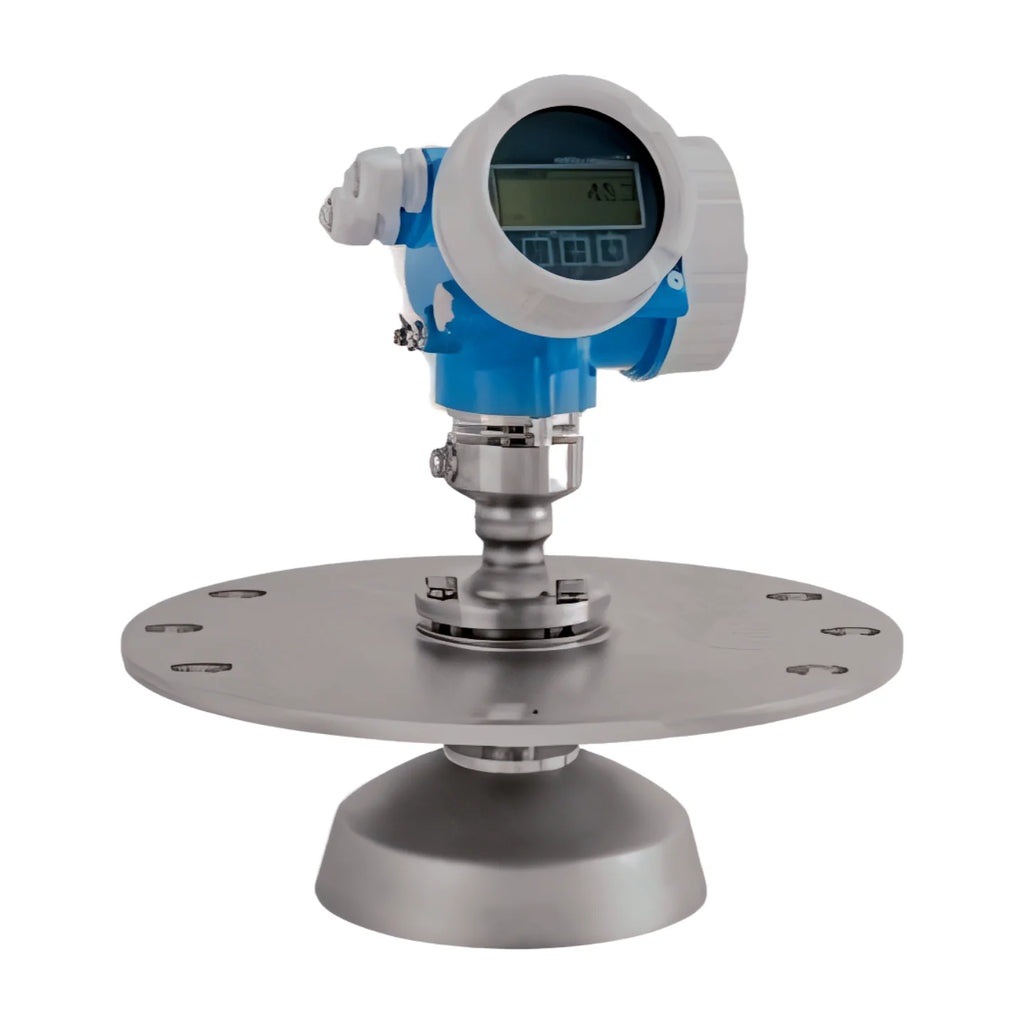

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
Horn or parabolic antenna. Thanks to the additional air purge connection even strongly dusting and build-up forming media do not present any problem.
* Process connections: Thread or flange
* Temperature: -40 to +400°C (–40 to 752°F)
* Pressure: -1 to +16bar (-14.5 to +232psi)
* Maximum measuring range: 70m (230ft)
* K-band: 26GHz
* International explosion protection certificates, SIL, 5-point linearity protocol
Horn or parabolic antenna. Thanks to the additional air purge connection even strongly dusting and build-up forming media do not present any problem.
* Process connections: Thread or flange
* Temperature: -40 to +400°C (–40 to 752°F)
* Pressure: -1 to +16bar (-14.5 to +232psi)
* Maximum measuring range: 70m (230ft)
* K-band: 26GHz
* International explosion protection certificates, SIL, 5-point linearity protocol
Benefits
* Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display
* Most compact radar due to unique radar chip design offering perfect fit in limited space applications
* Best price-performance-ratio radar
* Perfect application fit for water & wastewater, mining, minerals & metals as well as utilities in all industries (IP66, 68 /NEMA4x, 6P)
* Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions
* Easy setup with three main parameters suits for most applications
* Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach
* Most compact radar due to unique radar chip design offering perfect fit in limited space applications
* Best price-performance-ratio radar
* Perfect application fit for water & wastewater, mining, minerals & metals as well as utilities in all industries (IP66, 68 /NEMA4x, 6P)
* Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions
* Easy setup with three main parameters suits for most applications
* Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR57
|
|
Material
|
316L, PEEK, PTFE, Polyamid
|
|
Mode
|
Radar measurement
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
For highest demands in measuring tasks of bulk solids:
Reliable, non-contact level measurement in high silos, bunkers or stockpiles also under extreme conditions like strongly dusting and build-up forming media |
|
Specialities
|
Heartbeat Technology,
Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi- Echo Tracking, HistoROM, RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART), Bluetooth® wireless technology and App (optional) |
|
Frequency
|
K-band (~26 GHz)
|
|
Antenna
|
Parabolic DN200/8", DN250/10"
Horn DN80/3", DN100/4" |
|
Accuracy
|
+/- 3 mm (0.12 in)
|
|
Ambient temperature
|
-40...+80 °C
(-40...+176 °F) |
|
Process Temperature
|
-40...+400 °C
(-40...+752 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...16 bar
(Vacuum...232 psi) |
|
Main Wetted Parts
|
316L, PEEK, PTFE, Polyamid
|
|
Process Connection
|
Thread:
MNPT 1 1/2, R 1 1/2 Flange: DN80...DN100, ASME 3"...4", JIS 10K, UNI DN100/8"...DN250/10" |
|
Max. Measurement Distance
|
70 m (230 ft)
|
|
Communication
|
4...20 mA HART
PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, JPN Ex, EAC, UK Ex
|
|
Safety approvals
|
SIL
|
|
Design approvals
|
EN 10204-3.1
|
|
Marine approval
|
GL/ ABS/ LR/ BV/ DNV
|
|
Options
|
Display,
Customized parameterization, Remote operation via SmartBlue App using Bluetooth®, Antenna extension, PWIS free |
|
ApplicationLimits
|
Dk < 1.6
Reduction of the max. possible measuring range through: Media with poor reflection properties Angle of repose Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling Build-up, above all of moist products |
