Overview
For level measurement in liquids where strong steam or ammonia can occur.
Specs at a glance
* Accuracy
+/- 6 mm (0.24 in)
* Process temperature
-60...+400°C
(-76...+752°F)
* Process pressure / max. overpressure limit
Vacuum...160 bar
(Vacuum...2320 psi)
* Max. measurement distance
Standard: 20 m (65 ft)
Planar antenna in stilling well: 38 m (125 ft)
* Main wetted parts
316L
+/- 6 mm (0.24 in)
* Process temperature
-60...+400°C
(-76...+752°F)
* Process pressure / max. overpressure limit
Vacuum...160 bar
(Vacuum...2320 psi)
* Max. measurement distance
Standard: 20 m (65 ft)
Planar antenna in stilling well: 38 m (125 ft)
* Main wetted parts
316L
Application
Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

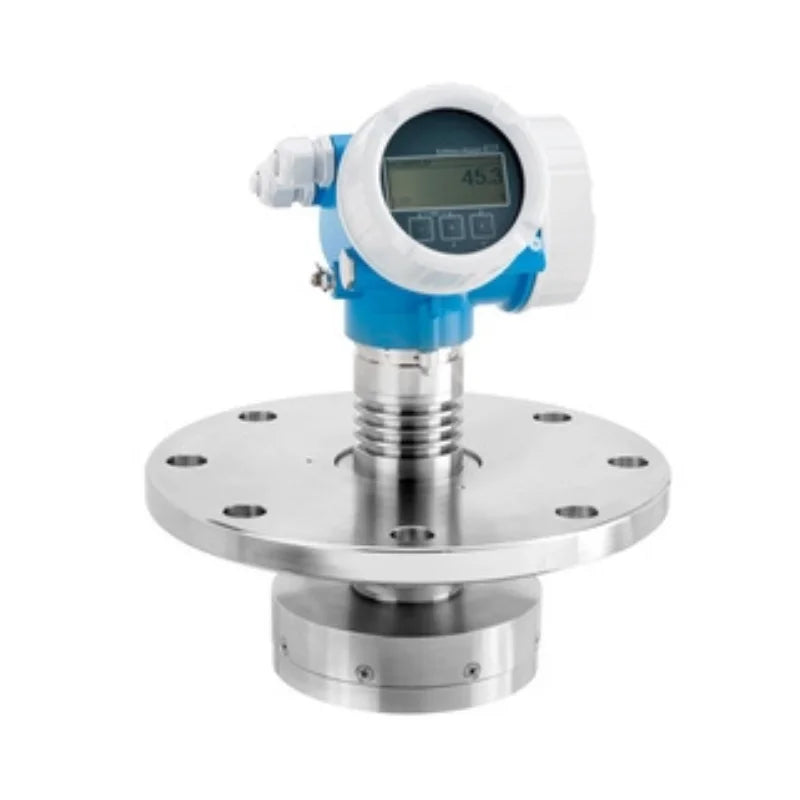

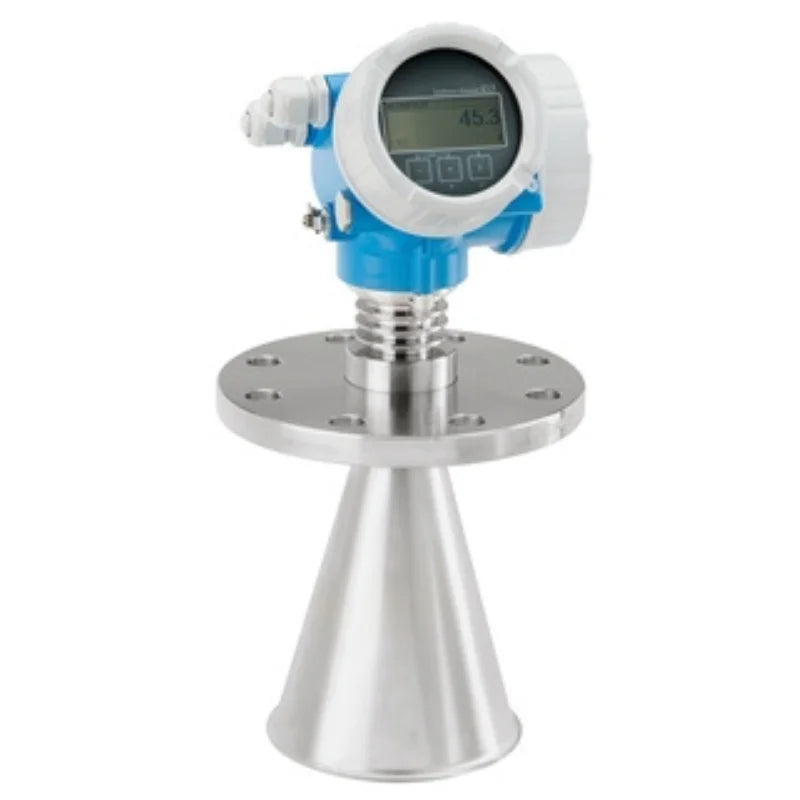

Horn antenna or planar antenna which is particularly suited for stilling well applications.
* Process connection: Flange
* Temperature: -196 to +400°C (-76 to +752°F)
* Pressure: -1 to +160bar (-14.5 to +2,320psi)
* Maximum measuring range: 20m (66ft)
* Accuracy: ±6mm
* C-band: 6GHz
* International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
Horn antenna or planar antenna which is particularly suited for stilling well applications.
* Process connection: Flange
* Temperature: -196 to +400°C (-76 to +752°F)
* Pressure: -1 to +160bar (-14.5 to +2,320psi)
* Maximum measuring range: 20m (66ft)
* Accuracy: ±6mm
* C-band: 6GHz
* International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol
Benefits
* Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
* Reliable measurement even for changing product and process conditions
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* World's easiest proof test concept for SIL and WHG saves time and cost
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
* Reliable measurement even for changing product and process conditions
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* World's easiest proof test concept for SIL and WHG saves time and cost
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR54
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
Continuous non-contact level measurement for use in high-pressure and high-temperature applications,
Horn or planar antenna |
|
Specialities
|
Heartbeat Technology,
SIL 2 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi-Echo Tracking, HistoROM, RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART) Bluetooth® wireless technology and App (optional) |
|
Frequency
|
C-band (~6 GHz)
|
|
Accuracy
|
+/- 6 mm (0.24 in)
|
|
Ambient Temperature
|
-50...+80 °C
(-58...+176 °F) |
|
Process Temperature
|
-60...+400°C
(-76...+752°F) |
|
Process Pressure / max. Overpressure Limit
|
Vacuum...160 bar
(Vacuum...2320 psi) |
|
Main Wetted Parts
|
316L
|
|
Process Connection
|
Flange:
DN80...DN300, ASME 3"...12", JIS 10K, 20K |
|
Max. Measurement Distance
|
Standard: 20 m (65 ft)
Planar antenna in stilling well: 38 m (125 ft) |
|
Communication
|
4...20 mA HART
PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex
|
|
Safety Approvals
|
Overfill protection WHG
SIL |
|
Design Approvals
|
EN 10204-3.1
NACE MR0175, MR0103 ASME B31.3 AD2000 |
|
Marine Approval
|
GL/ ABS/ LR/ BV/ DNV
|
|
Options
|
Display,
Customized parameterization, Remote operation via SmartBlue App using Bluetooth®, PWIS free, Gastight feed through |
|
Application Limits
|
Maximum measuring range is dependent on the tank form and/or
application Free space with nozzle: FMR51, FMR52, FMR53 Stilling well with ball valve: FMR51, FMR52 Hygiene requirements: FMR52, FMR53 316L or Alloy C non-resistant: FMR52, FMR53 |
