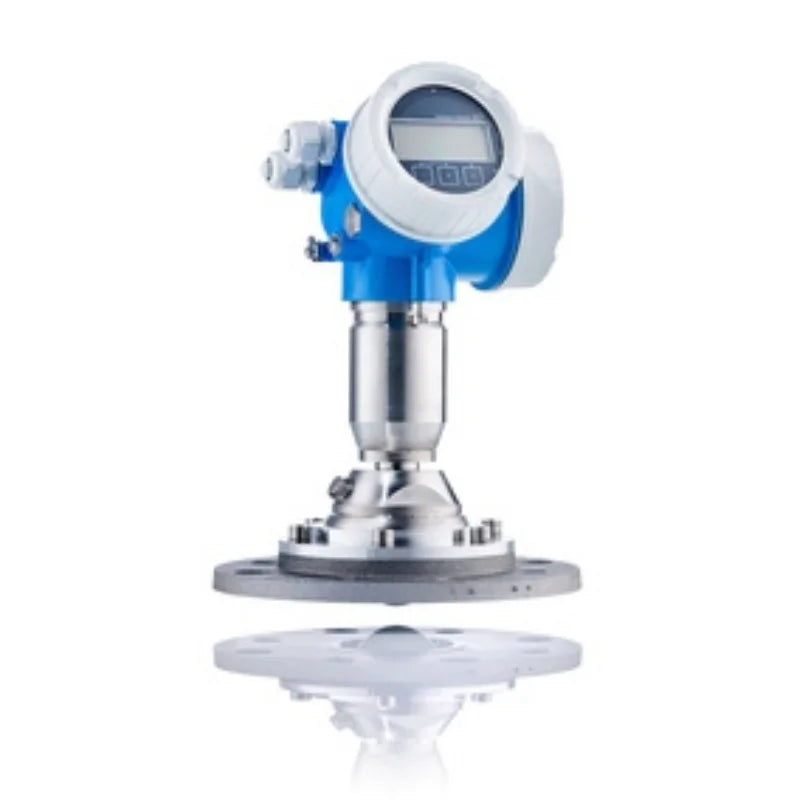

Endress+Hauser Radar Measurement Micropilot FMR67

Availability: In stock

Product type: Level Measurement

Vendor: Endress+Hauser

Regular price ~~$900.00~~ $900.00 Sale

Overview The standard sensor for highest demands in bulk solids level measurement with 80GHz technology. Specs at a glance * Accuracy+/- 3 mm (0.12 in)* Process temperature-40…+200 °C(-40…+392...

Regular price ~~$900.00~~ $900.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

The standard sensor for highest demands in bulk solids level measurement with 80GHz technology.

Specs at a glance

* Accuracy
+/- 3 mm (0.12 in)
* Process temperature
-40…+200 °C
(-40…+392 °F)
* Max. measurement distance
125 m (410 ft)
* Main wetted parts
PTFE, 316L
Alignment device: Alu

Field of application

Micropilot FMR67 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. It offers maximum reliability due to the drip-off antenna, improved focusing and very small emitting angles which is perfect for the measuring in slim silos. FMR67 is used for continuous, non-contact level measurement in powdery to granular bulk solids. FMR67 also possesses the smart sensor functionality Heartbeat Technology.

Micropilot FMR67 is suited for free space applications up to 125m and offers high beam focusing for vessels with many internal fittings.
* Process connections: Threads or flanges
* Temperature: -40 to +200°C (-40 to +392°F)
* Pressure: –1 to +16bar (–14.5 to +232psi)
* Maximum measuring range: 125m (410ft)
* Accuracy: ±3mm (0.12in)
* W-band: 80GHz
* International explosion protection certificates, SIL, marine approvals, 5-point linearity protocol

Benefits

* Hardware and software developed according to IEC 61508 up to SIL3 in homogeneous redundancy
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even with obstructions in vessels due to small beam angle and Multi-Echo Tracking evaluation

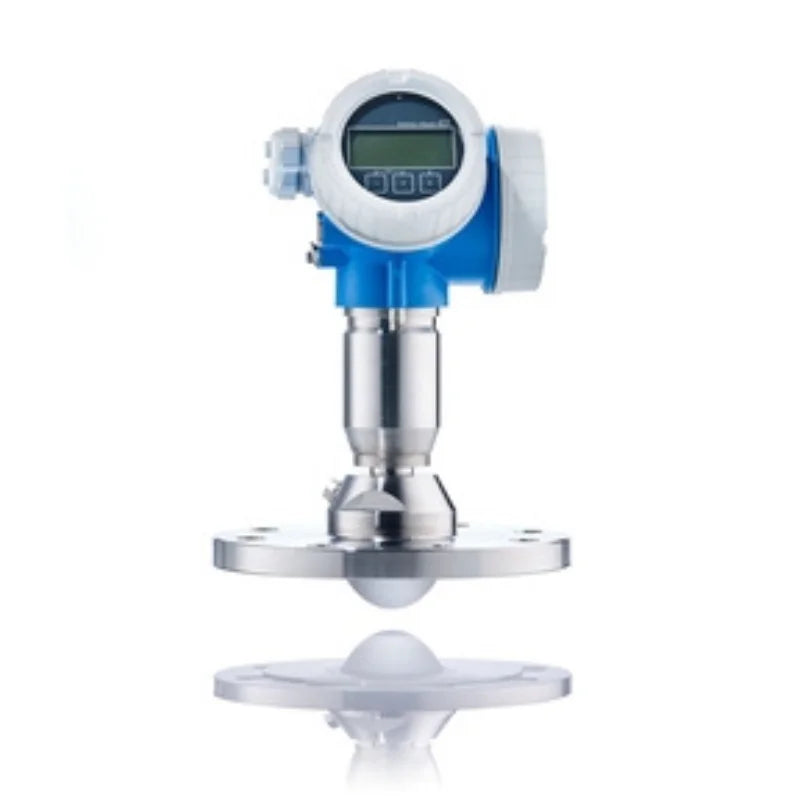

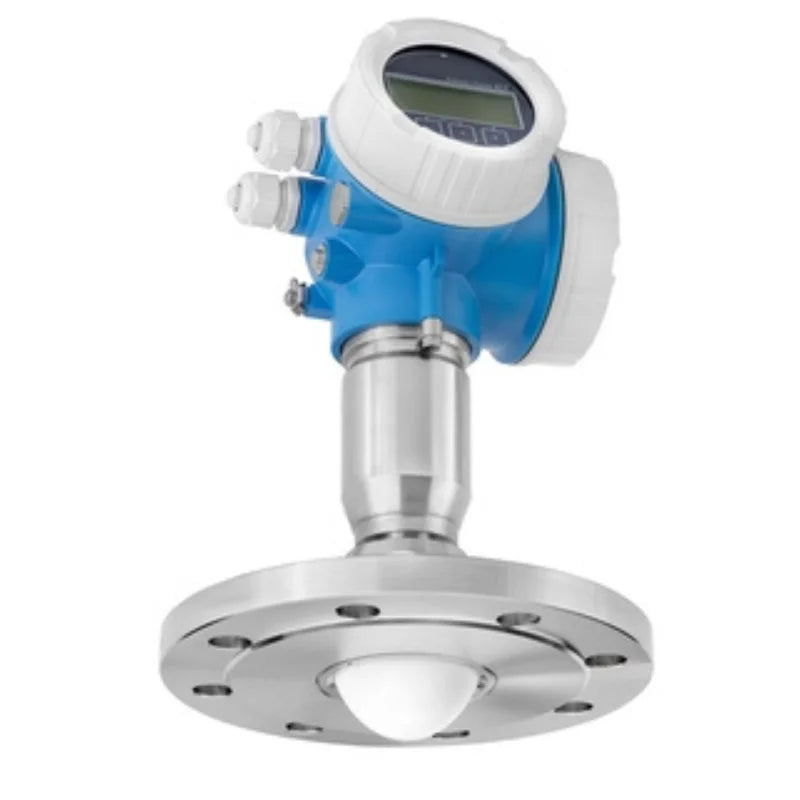

* Innovative drip-off antenna of PTFE for maximum system availability
* Reduction of engineering effort due to an easier integration of the 80GHz radar instrument into the process
* The world's easiest proof test concept for SIL saves time and costs

Specification

item	value
Grade	Industrial
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Micropilot FMR67
Measuring Principle	Level radar solid
Characteristic / Application	Reliable, non-contact level measurement for high silos, bunkers or stockpiles, especially with many obstacles, long measuring range and build-up forming media.
Specialities	Heartbeat Technology, SIL 2/3 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Very small beam angle, Safety and reliability with Multi- Echo Tracking, HistoROM, RFID TAG for easy identification, Air purge connection, Alignment device
Supply / Communication	2-wire (HART), Bluetooth® wireless technology and App (optional)
Frequency	W-band (~80 GHz)
Accuracy	+/- 3 mm (0.12 in)
Ambient Temperature	-40…+80 °C (-40…+176 °F)
Process Temperature	-40…+200 °C (-40…+392 °F)
Main Wetted Parts	PTFE, 316L Alignment device: Alu

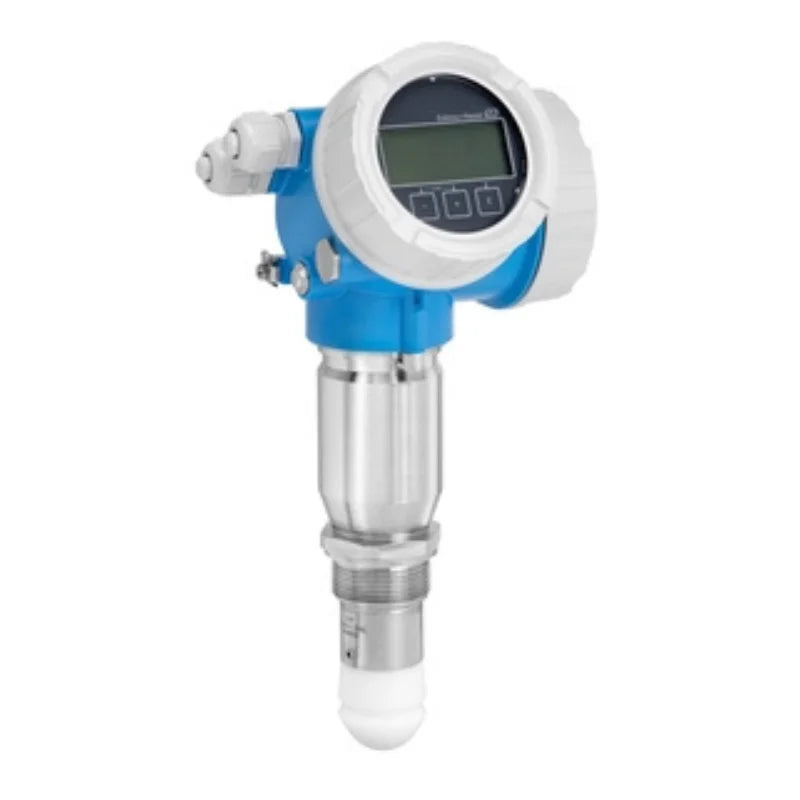

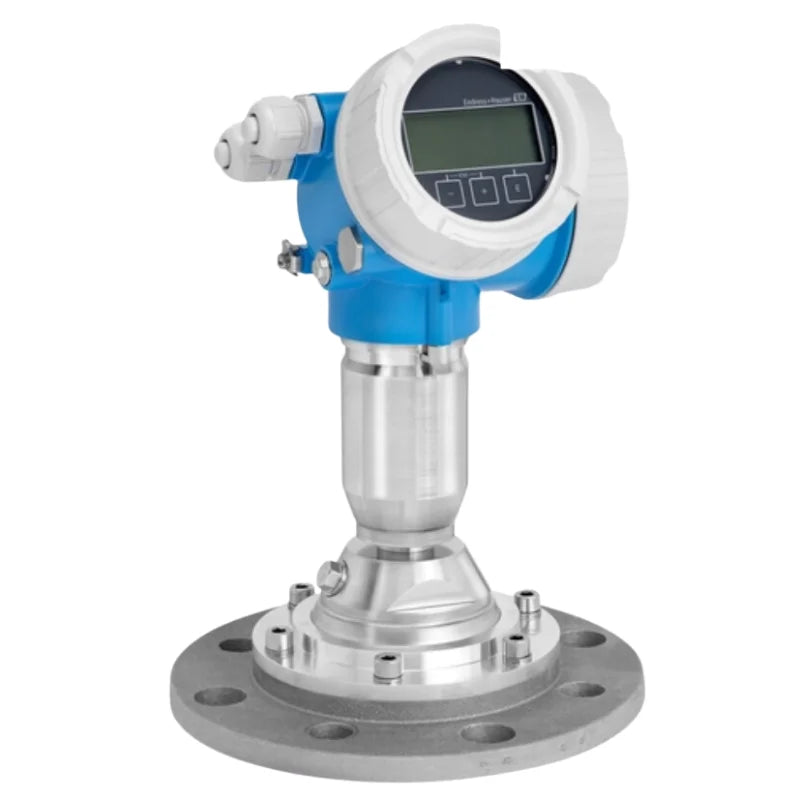

Process Connection	Thread: G1-1/2", MNPT1-1/2"; Flanges: DN80...DN100 ASME 3"...4" UNI DN80...DN250 (3"...10")
Max. Measurement Distance	125 m (410 ft)
Communication	4…20 mA HART Additional switch, Bluetooth® wireless technology
Certificates / Approvals	ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC, JPN Ex, UK Ex
Safety Approvals	SIL2, SIL3
Options	Remote operation via SmartBlue App using Bluetooth®
