Endress+Hauser Radar measurement Micropilot FMR540

Availability: In stock

Product type: Level Measurement

Vendor: Endress+Hauser

Regular price ~~$960.00~~ $960.00 Sale

Overview Horn antenna and parabolic antenna for custody transfer applications. Specs at a glance * Accuracy+/- 1 mm* Process temperature-40°C...200°C(-40°F...392°F)* Process pressure / max. overpressure limitHorn: Vacuum...16 bar...

Regular price ~~$960.00~~ $960.00 Sale

Qty

Details
GLOBAL SHIPPING & DELIVERY

Overview

Horn antenna and parabolic antenna for custody transfer applications.

Specs at a glance

* Accuracy
+/- 1 mm
* Process temperature
-40°C...200°C
(-40°F...392°F)
* Process pressure / max. overpressure limit
Horn: Vacuum...16 bar (232 psi)
Parabolic: Vacuum...6 bar (87 psi)
Use of UNIflange: Vacuum...1 bar (14.5 psi)
* Main wetted parts
316L

Field of application

Micropilot FMR540 is used for custody transfer and inventory control applications with NMi- and PTB-approvals and meets the requirements according to OIML R85 and API 3.1B. FMR540 with parabolic antenna is particularly suited for free space applications up to 40m and with horn antenna for free space applications that disallow the use of a parabolic antenna due to tank/nozzle
geometry. Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

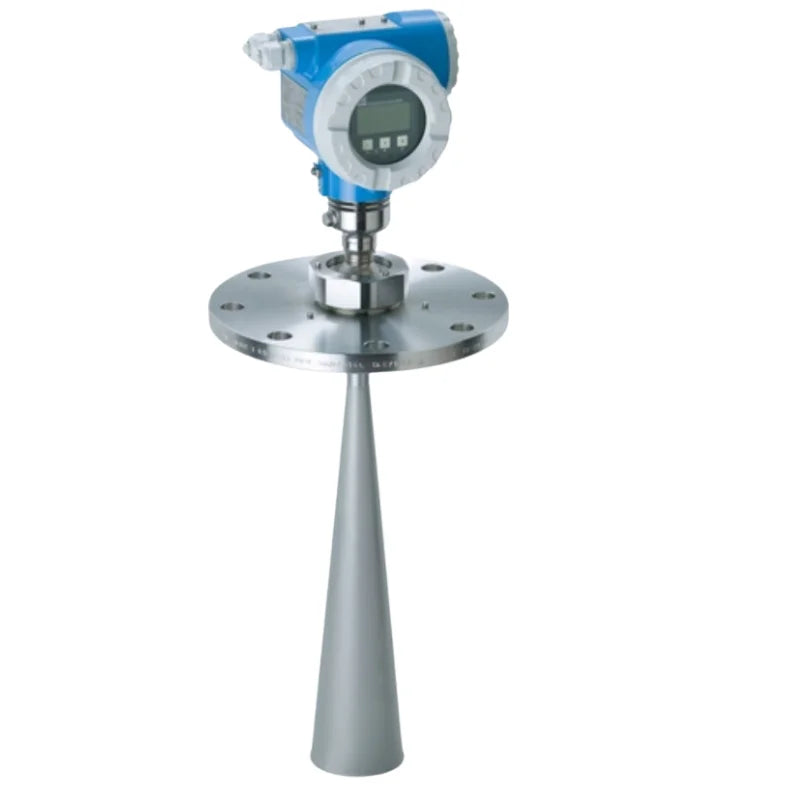

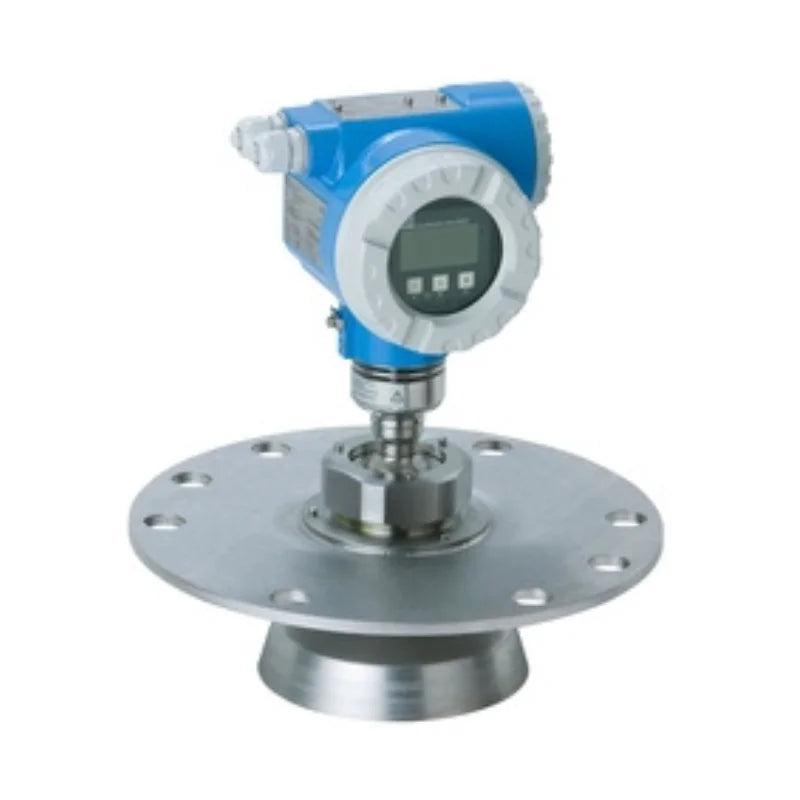

Parabolic antenna suited for free space applications up to 40m offers high beam focusing for applications with nozzle situated close to tank wall, 4"/DN100 horn antenna suited for free space applications.
* Process connection: Flange
* Temperature: -40 to +200°C (-40 to +392°F)
* Pressure: Vacuum to +16bar (Vacuum to +232psi)
* Maximum measuring range: 40m (131ft)
* Accuracy: Better than ±1mm
* K-band: 26GHz
* International explosion protection and custody transfer certificates, overfill prevention WHG, SIL

Benefits

* Better than 1mm accuracy
* National approvals (NMi, PTB) for custody transfer
* Applicable as stand-alone system or integrated into tank gauging systems via the Tank Side Monitor NRF590
* Cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply
* Alignment device to compensate any flange inclination
* Easy on-site operation via menu-driven alphanumeric display
* Easy commissioning, documentation and diagnostics via operating software (FieldCare)

Specification

item	value
Grade	Industrial
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	Micropilot FMR540
Measuring Principle	Level radar
Characteristic / Application	Horn antenna: High precision measurement for for storage tanks up to 20 m (65ft) Parabolic antenna: High precision measurement for free space applications up to 40 m (131 ft)
Supply / Communication	4-wire (HART)
Frequency	K-band (~26 GHz)
Accuracy	+/- 1 mm
Ambient Temperature	Standard: -40°C...80°C (-40°F...176°F) For calibration to regulatory standards: -25°C...60°C (-13°F...131°F)
Process Temperature	-40°C...200°C (-40°F...392°F)
Process Pressure / max. Overpressure Limit	Horn: Vacuum...16 bar (232 psi) Parabolic: Vacuum...6 bar (87 psi) Use of UNIflange: Vacuum...1 bar (14.5 psi)
Main Wetted Parts	316L
Process Connection	Horn Antenna: DN100, DN150 Flange UNIFlange DN150, DN200, DN250 Parabolic antenna: UNIflange with Top Target positioner DN200, DN250 For dk value < 1.9, contact Endress+Hauser
Communication	4...20 mA HART
Certificates / Approvals	ATEX, FM, CSA, IEC Ex, NEPSI
Application Limits	Maximum measuring range is dependent on the tank form and/or application Strong condensate or build-up formation FMR53x Existing stilling wells with non-ideal measuring conditions FMR532
