Overview
More simplicity for your application.
Specs at a glance
* Accuracy
+/-1 mm (0.04 in)
* Process temperature
-40 … +200 °C (-40 … +392 °F)
* Process pressure / max. overpressure limit
Vacuum...20 bar (290 psi)
* Max. measurement distance
50 m (164 ft)
* Main wetted parts
PVDF, PTFE or PEEK
+/-1 mm (0.04 in)
* Process temperature
-40 … +200 °C (-40 … +392 °F)
* Process pressure / max. overpressure limit
Vacuum...20 bar (290 psi)
* Max. measurement distance
50 m (164 ft)
* Main wetted parts
PVDF, PTFE or PEEK
Field of application

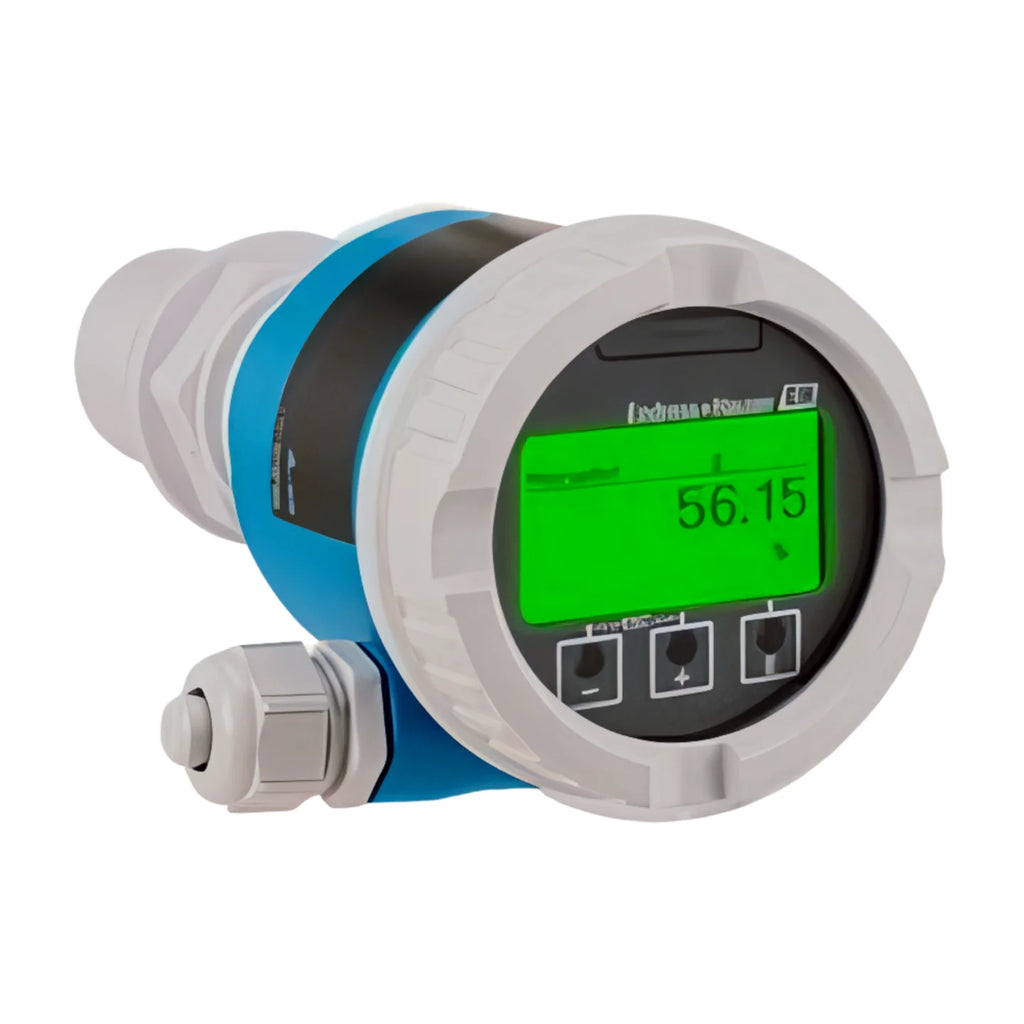

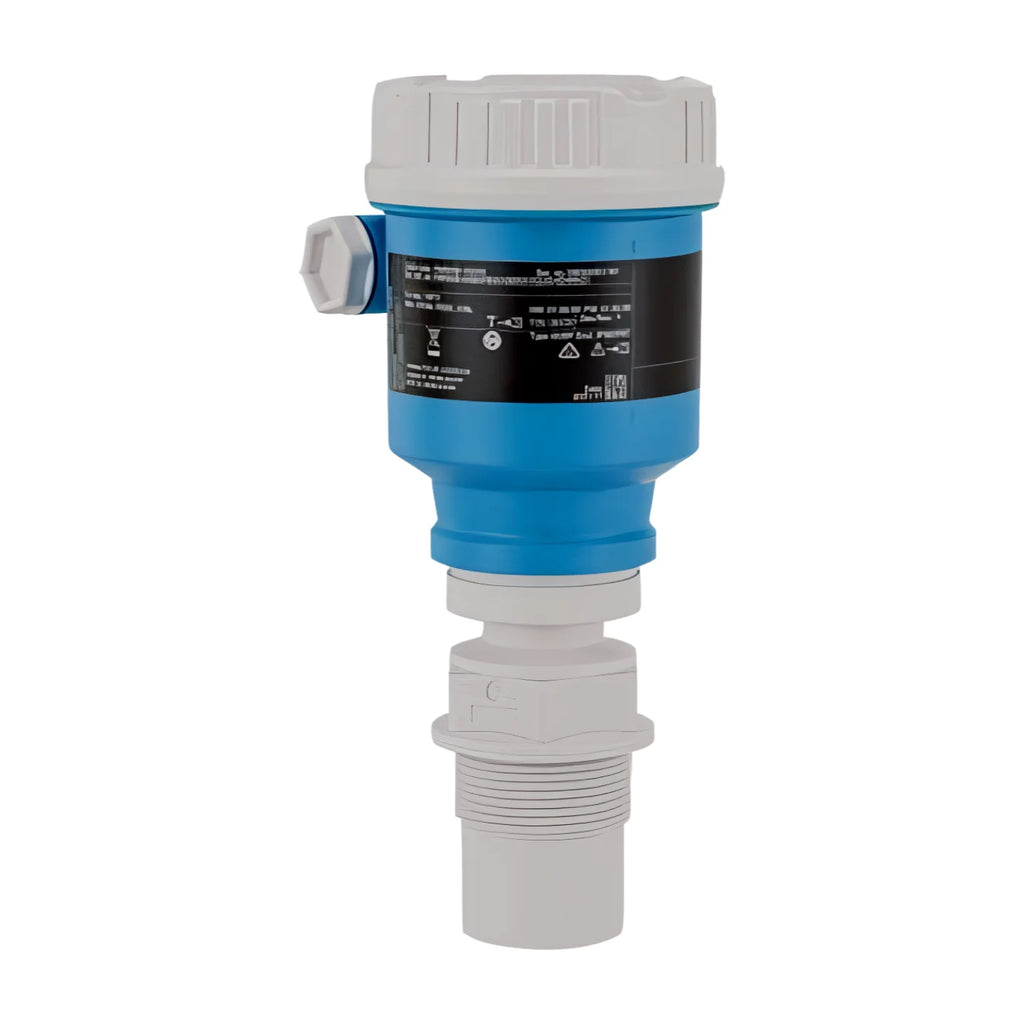

Micropilot FMR60B is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in simple liquid applications with small process connections. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies for more safety and increased productivity.
Micropilot FMR60B is suitable for free-space applications up to 50m and offers high beam focusing for vessels with many internal fittings.
* Process connections: Threads and flanges
* Temperature: –40 to +200 °C (-40 to 392° F)
* Pressure: –1 bis +20 bar (-14.5 to +290 psi)
* Maximum measuring range: 50 m (164 ft)
* Accuracy: ±1 mm (0.04 in)
* W-band: 80 GHz
* International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate
Micropilot FMR60B is suitable for free-space applications up to 50m and offers high beam focusing for vessels with many internal fittings.
* Process connections: Threads and flanges
* Temperature: –40 to +200 °C (-40 to 392° F)
* Pressure: –1 bis +20 bar (-14.5 to +290 psi)
* Maximum measuring range: 50 m (164 ft)
* Accuracy: ±1 mm (0.04 in)
* W-band: 80 GHz
* International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate
Benefits
* Easy handling through intuitive operation and wizards, for commissioning and verification
* Easier troubleshooting through recommended actions shown on the display
* Reduction of systematic errors through guided SIL-locking, verification and proof testing
* Safety by design: Device development according to IEC 61508
* Increased productivity thanks to process monitoring, verification and diagnostics in the running process with Heartbeat Technology
* Easier troubleshooting through recommended actions shown on the display
* Reduction of systematic errors through guided SIL-locking, verification and proof testing
* Safety by design: Device development according to IEC 61508
* Increased productivity thanks to process monitoring, verification and diagnostics in the running process with Heartbeat Technology
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR60B – 80 GHz
|
|
Material
|
316L or PTFE (clad 316L flanges)
|
|
Mode
|
Radar Sensor
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
For simple continuous non-contact level measurements in
liquids, pastes, and slurries; Not influenced by changing media, temperature differences, gas phases or steam; For vessels with many internals |
|
Specialities
|
Heartbeat Technology;
SIL 2 according to IEC 61508; Bluetooth® commissioning; Operation and maintenance with SmartBlue App; HistoROM; RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART/ PROFIBUS PA)
PROFINET with Ethernet-APL Bluetooth® wireless technology |
|
Frequency
|
W-Band (~80 GHz)
|
|
Accuracy
|
+/-1 mm (0.04 in)
|
|
Ambient Temperature
|
-40 … +85 °C (-40 … +185 °F)
|
|
Process Temperature
|
-40 … +200 °C (-40 … +392 °F)
|
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...20 bar (290 psi)
|
|
Main Wetted Parts
|
PVDF, PTFE or PEEK
|
|
Process Connection
|
Thread: G3/4" and 1-1/2", MNPT 3/4" and 1-1/2";
Flange: UNI DN80...DN150; Mounting bracket |
|
Max. Measurement Distance
|
50 m (164 ft)
|
|
Communication
|
HART/ PROFIBUS PA
PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
|
Certificates / Approvals
|
IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex, UK Ex |
|
Safety Approvals
|
Overfill protection WHG;
SIL 2 |
|
Design Approvals
|
Acceptance test certificate 3.1, EN10204;
EU Food Contact Material (EC) 1935/2004; US Food Contact Material FDA CFR 21; Declaration of Conformity ASME B31.3; AD2000; PMI test; CRN approval |
|
Marine Approval
|
ABS, LR, BV, RINA, DNV
|
|
Options
|
Display,
Customized settings, App 'SmartBlue' for commissioning and operation via Bluetooth Gas-tight implementation; Overvoltage protection; PWIS free |
|
ApplicationLimits
|
Process temp. <-40°C (-40°F) or > 200°C (392°F) -> FMR62B
Very aggressive media -> FMR62B Turbulences, stilling well and bypass -> FMR62B Strong foam and interfaces --> FMP5x |
