Overview
The Multiparameter device is the innovation in interface measurement.
Specs at a glance
* Accuracy
Rod probe :+/- 2 mm (0.08 in) Rope probe:+/- 2 mm (0.08 in) Coaxial probe:+/- 2 mm (0.08 in)
* Process temperature
-40...+200 °C(-40...+392 °F)
Rod probe :+/- 2 mm (0.08 in) Rope probe:+/- 2 mm (0.08 in) Coaxial probe:+/- 2 mm (0.08 in)
* Process temperature
-40...+200 °C(-40...+392 °F)
* Process pressure / max. overpressure limit
Vacuum...40 bar (Vacuum...580 psi)
* Max. measurement distance
Rod: 4 m (13 ft)Min DK >1.4 Rope: 10 m (33 ft) Min DK >1.4 Coaxial: 6 m (20 ft) Min DK >1.4
* Main wetted parts
Rod probe:316L, PTFE, PFA
Rope probe:316, 316L, PTFE, PFA
Coaxial probe:316L, PTFE, PFA
Vacuum...40 bar (Vacuum...580 psi)
* Max. measurement distance
Rod: 4 m (13 ft)Min DK >1.4 Rope: 10 m (33 ft) Min DK >1.4 Coaxial: 6 m (20 ft) Min DK >1.4
* Main wetted parts
Rod probe:316L, PTFE, PFA
Rope probe:316, 316L, PTFE, PFA
Coaxial probe:316L, PTFE, PFA
Field of application

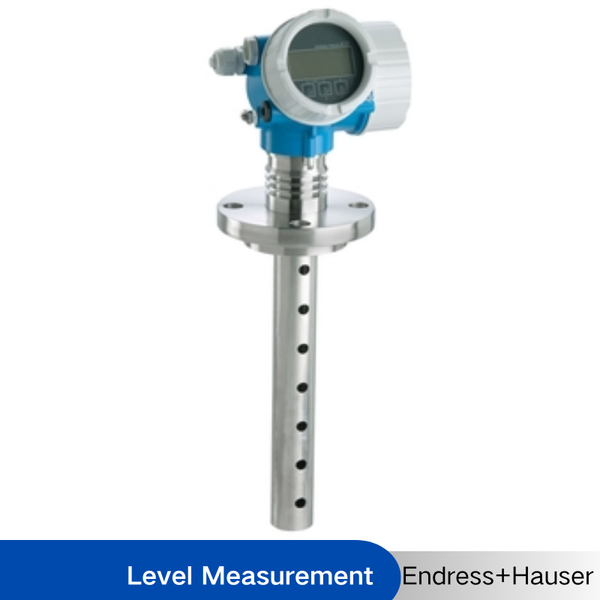

Levelflex FMP55 guided radar with SensorFusion offers the worldwide first combination of the capacitance and guided radar measuring principle in one device. The instrument guarantees safe measured value acquisition even in emulsion layers and issues level and interface layer signals simultaneously. This makes the FMP55 Multiparameter the new standard in interface measurement especially in the oil & gas, chemical and petrochemical industry.
Version with rod or rope probe.
* Process connections: Thread or flange
* Temperature: -50 to +200°C (-58 to +392°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Maximum measuring range: Rod 4m (13t), rope 10m (33ft), coax 6m (20ft)
* Accuracy: Rod ±2mm (0.08")
* International explosion protection certificates, overfill prevention WHG, SIL, marine approval
Version with rod or rope probe.
* Process connections: Thread or flange
* Temperature: -50 to +200°C (-58 to +392°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Maximum measuring range: Rod 4m (13t), rope 10m (33ft), coax 6m (20ft)
* Accuracy: Rod ±2mm (0.08")
* International explosion protection certificates, overfill prevention WHG, SIL, marine approval
Benefits
* Reliable measurement even for changing product and process conditions
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability due to new Multi-Echo Tracking evaluation
* Hardware and software developed according to IEC 61508 up to SIL3
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* Worlds easiest proof test for SIL and WHG saves time and costs
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability due to new Multi-Echo Tracking evaluation
* Hardware and software developed according to IEC 61508 up to SIL3
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* Worlds easiest proof test for SIL and WHG saves time and costs
Specification
|
Measuring Principle
|
Guided radar
|
|
Characteristic / Application
|
Premium device Multiparameter (capacitance and guided radar)
Rod probe, Rope probe, Coaxial probe Integrated data memory, Factory precalibrated, Reliable measuring: for interface with emulsion, in case of moved surface + foam, for changing medias. |
|
Interface measurement
|
Interfaces liquid / liquid also with emulsion layers;
Simultaneous measurement of interface and overall level |
|
Specialities
|
Heartbeat Technology,
Bluetooth® commissioning, Operation and maintenance SmartBlue App, HistoROM, RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART) Bluetooth® wireless technology and App (optional) |
|
Accuracy
|
Rod probe :
+/- 2 mm (0.08 in) Rope probe: +/- 2 mm (0.08 in) Coaxial probe: +/- 2 mm (0.08 in) |
|
Ambient temperature
|
-40...+80 °C
(-40...+176 °F) |
|
Process temperature
|
-40...+200 °C
(-40...+392 °F) |
|
Process pressure / max. overpressure limit
|
Vacuum...40 bar
(Vacuum...580 psi) |
|
Main wetted parts
|
Rod probe:
316L, PTFE, PFA Rope probe: 316, 316L, PTFE, PFA Coaxial probe: 316L, PTFE, PFA |
|
Process connection
|
Flange:
ASME 1 1/2"...6", DN50...DN150, JIS 10K |
|
Sensor length
|
Rod probe: 4 m (13 ft)
Rope probe: 10 m (33 ft) Coaxial probe: 6 m (20 ft) |
|
Max. measurement distance
|
Rod: 4 m (13 ft)
Min DK >1.4 Rope: 10 m (33 ft) Min DK >1.4 Coaxial: 6 m (20 ft) Min DK >1.4 |
|
Communication
|
4...20 mA HART
PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex
|
|
Safety Approvals
|
SIL
|
|
Design Approvals
|
EN 10204-3.1
NACE MR0175, MR0103 ASME B31.1, B31.3 AD2000 |
|
Marine approval
|
GL/ ABS/ LR/ BV/ DNV/ KR
|
|
Options
|
Sensor remote with 3 m/ 9 ft cable,
Remote operation via SmartBlue App using Bluetooth® |
