Overview
Product Description

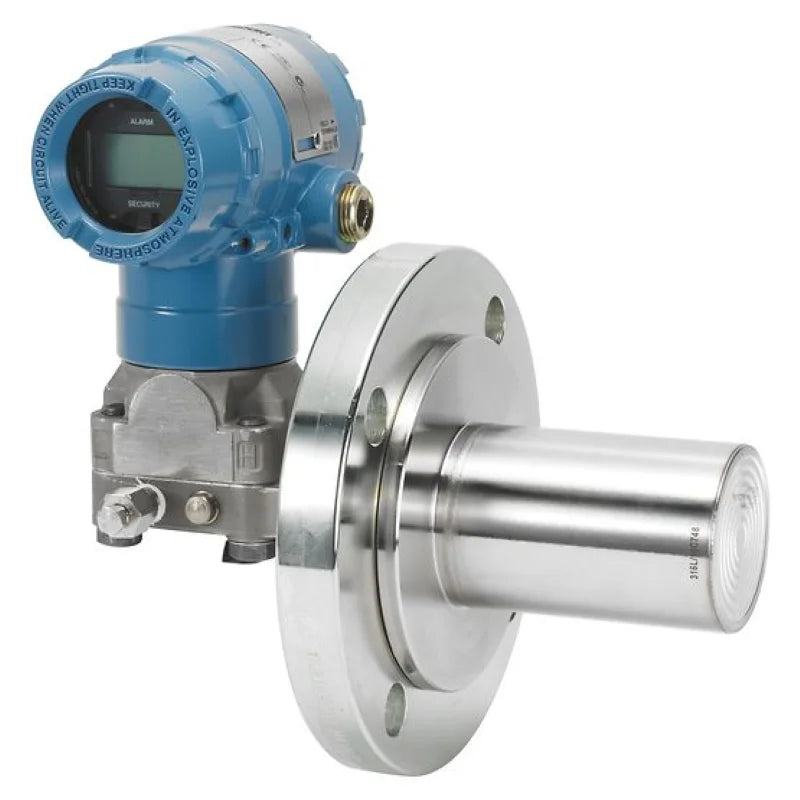

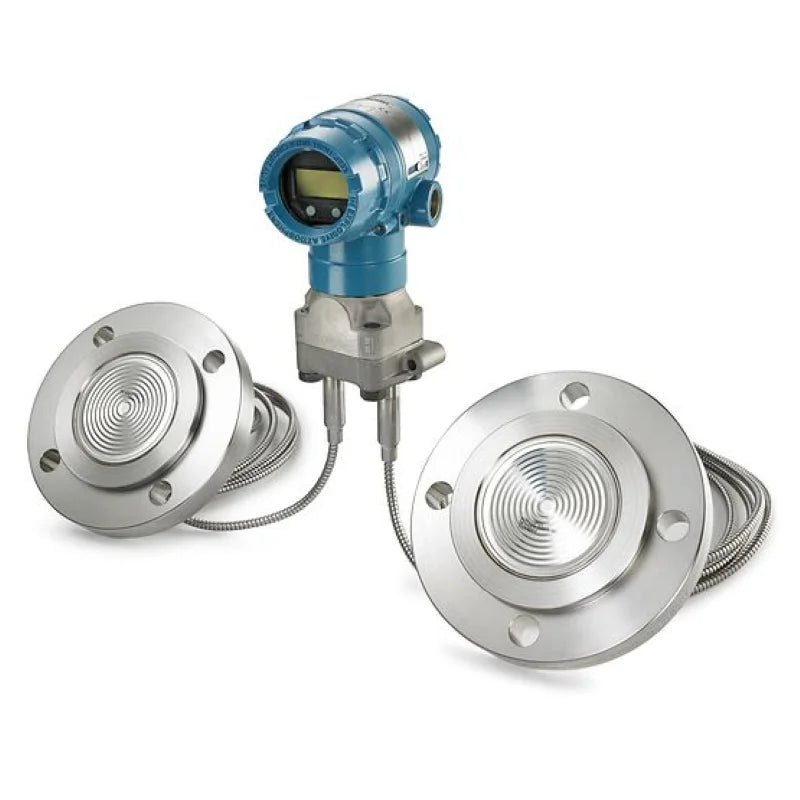

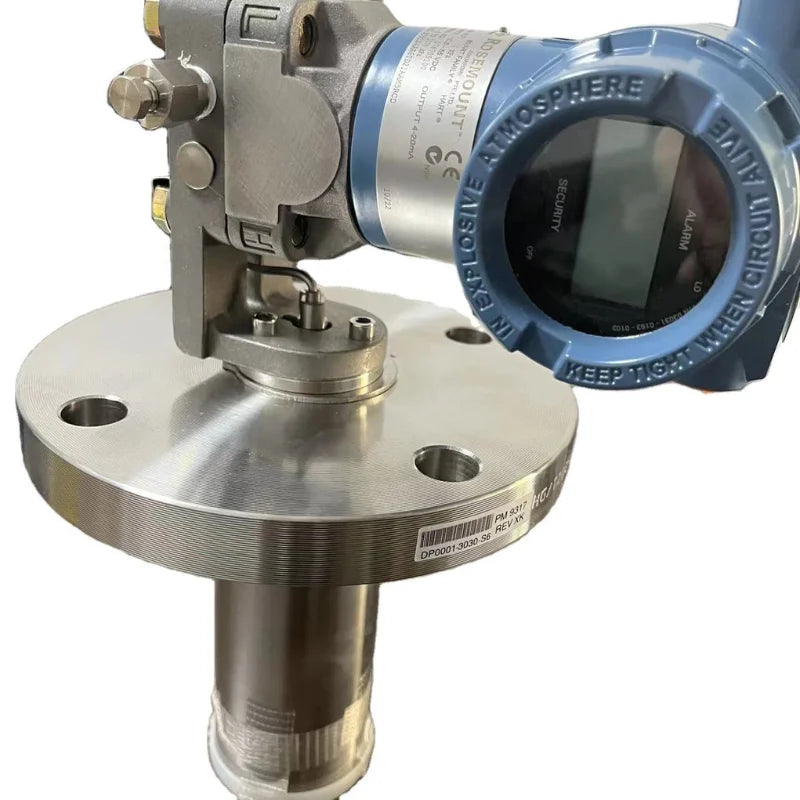

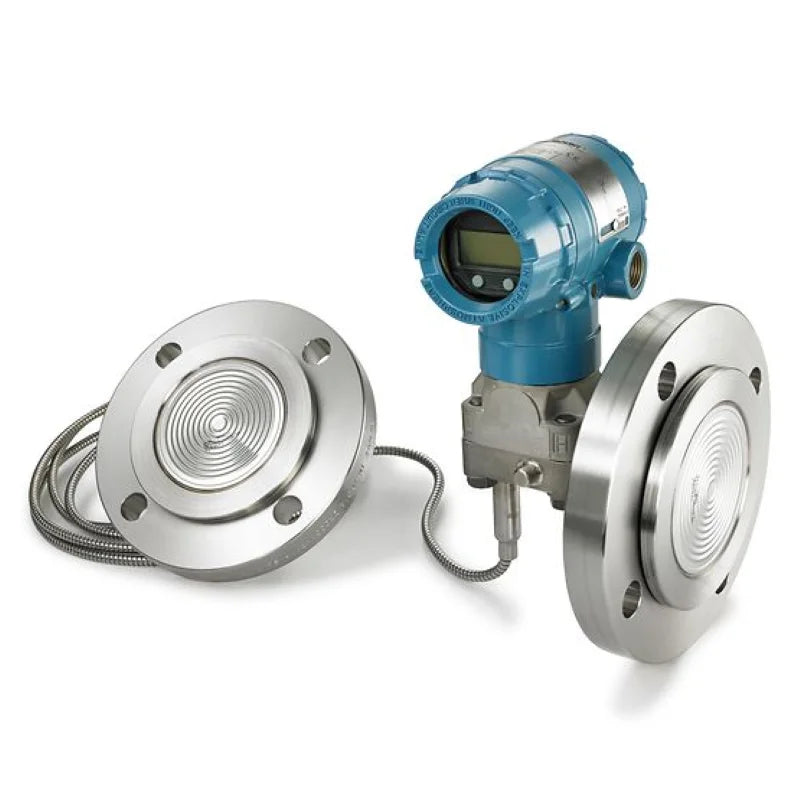

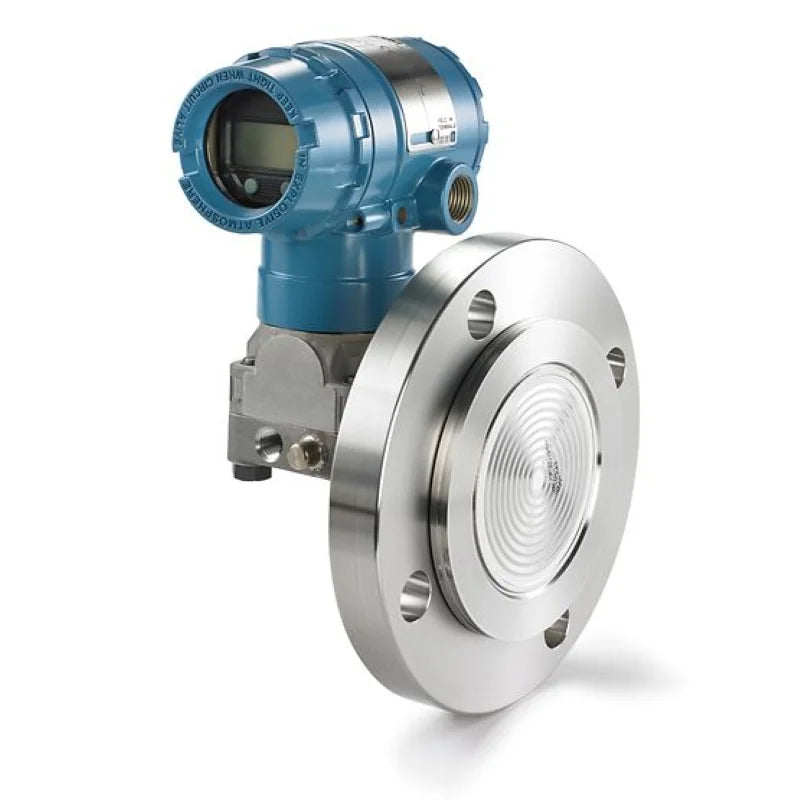

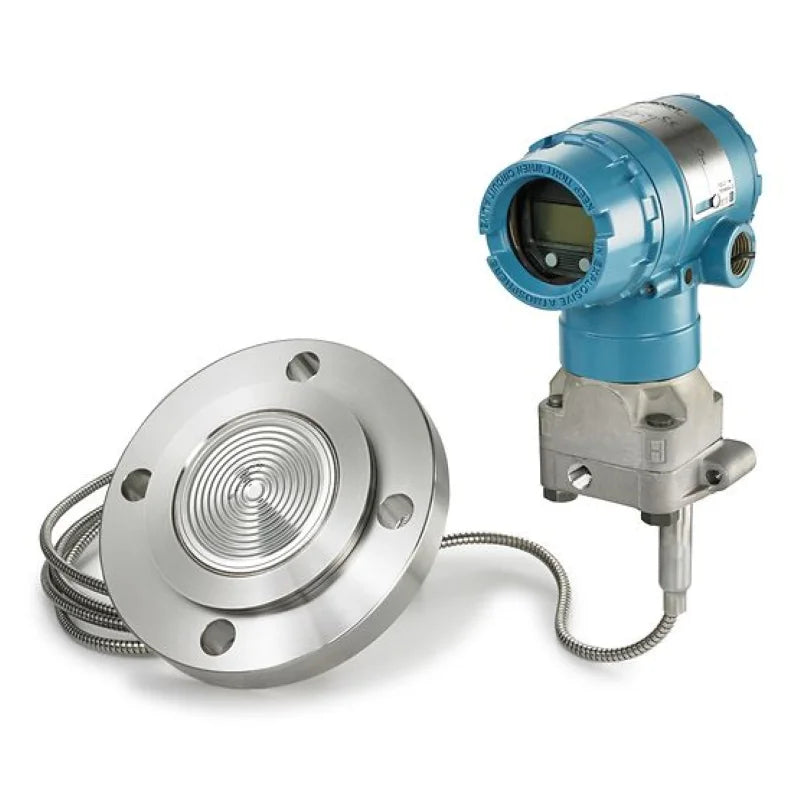

Gain confidence with the reliable performance of the Rosemount 2051L Level Transmitter, a transmitter that provides level measurements with a variety of process connections, materials and output protocols. This transmitter is safety certified, and
allows for Tuned-System™ Level assembly and direct mounting. Engineered with a Local Operator Interface (LOI), this device offers easy, on-site commissioning.
allows for Tuned-System™ Level assembly and direct mounting. Engineered with a Local Operator Interface (LOI), this device offers easy, on-site commissioning.
Features
* Designed with a variety of process connections, materials and output protocols to meet diverse application requirements
* Tuned-System Level assembly and direct mounting produce optimal performance for level applications
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools or training
* Optimized seal system construction ensures a quality measurement in harsh process conditions
* Tuned-System Level assembly and direct mounting produce optimal performance for level applications
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools or training
* Optimized seal system construction ensures a quality measurement in harsh process conditions
![]()
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
Emerson/Rosemount
|
|
Model Number
|
2051L
|
|
Material
|
316/316L
|
|
Max. Operating Pressure
|
Up to 300 psi (20,68 bar)
|
|
Process Temperature Range
|
Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)
|
|
Communication Protocol
|
4-20 mA HART
|
|
Seal System Type
|
Direct Mount, Tuned-System
|
|
Transmitter Connection
|
Welded-Repairable
|
|
Process Connection
|
ANSI/ASME, EN/DIN, JIS
|
|
Process Wetted Material
|
316L SST, Alloy C-276, Tantalum
|
|
Diagnostics
|
Basic Diagnostics
|
|
Certifications/Approvals
|
SIL 2/3 certified to IEC 61508
|
|
Wireless Update Rate
|
1 sec. to 60 min., user selectable
|
