Overview
Product overview: Fluke 378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex
Voltage and current measurements with FieldSense™ technology
The Fluke 378 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
Power quality indicator shows whether a problem is in the equipment or the power line
The 378 FC clamp meter includes a unique PQ function that senses power quality issues automatically. When making FieldSense measurements, the 378 FC will detect and display power quality issues, relating to current, voltage, power factor or any combination of the three. Now you can quickly determine if an upstream supply problem exists, or if there is a downstream equipment problem.
Complete 3-phase measurements in quick, easy steps
- Complete 3-phase voltage and current tests in 3 easy steps
- Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
- Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software
- Phase rotation auto-calculated and shown on the Fluke Connect software
- No more hand-written notes or complicated math.
Measure extremely high current with iFlex® probe
The included iFlex flexible current probe lets you measure ac current as high as 2500 A. Crowded wiring cabinets and large conductors are easily measured with the iFlex probe.
Easy to see, easy to use with included tools
Your job will get easier when you use the 378 FC clamp meter. The display turns green when a stable FieldSense measurement is detected. Visual Continuity also provides a bright green screen for easy detection of continuity in noisy work areas.
Record, analyze, share results with Fluke Connect® software
With Fluke Connect software you can remotely log, trend and monitor measurements to pinpoint intermittent faults. Fluke Connect also allows you to gather data as the basis for a preventive maintenance program.
Special features
- Measures AC current with included 18-inch or 36-inch iFlex current probe
- VFD low pass filter for accurate measurements of non-linear signals
- Remotely log, trend and monitor to pinpoint intermittent faults
- Inrush measurement to filter out noise and capture starting current

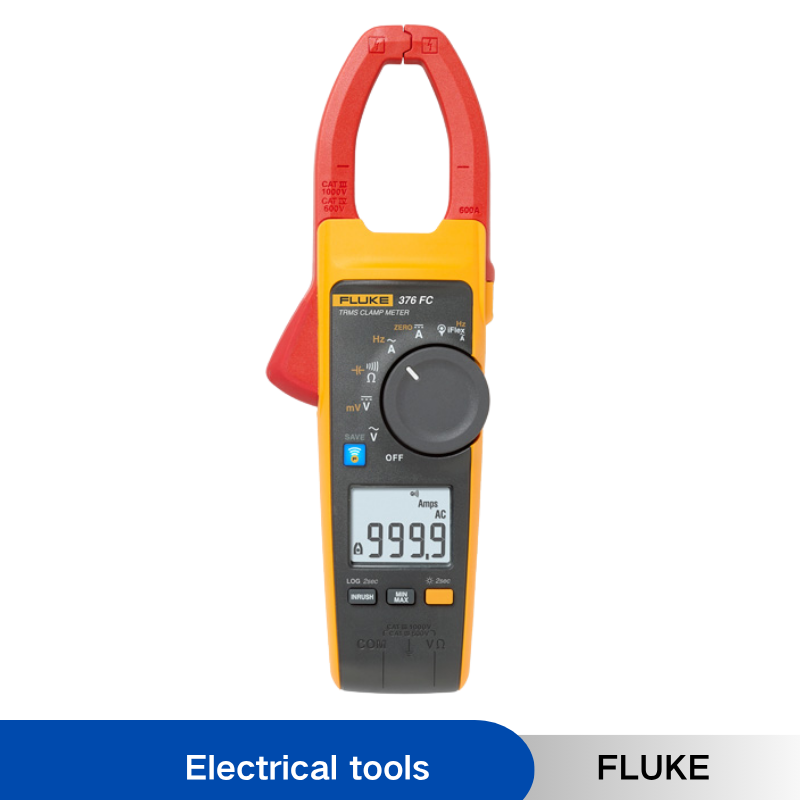

Models: Fluke 376 FC True-RMS Clamp Meter with iFlex
Fluke 376 FC True-RMS Clamp Meter
UPC#: 0 95969 79839 6
Includes:
- Fluke 376 FC True-RMS Clamp Meter
- 18-inch iFlex® Flexible Current Probe
- TPAK magnetic hanging strap
- TL75 Test Leads
- Two AA batteries (Installed)
- Soft carrying case
- Coated instruction card
- Safety information sheet
Fluke 376 FC True-RMS Clamp Meter
UPC#: 1 95112 02098 2
Includes:
- Fluke 376 FC True-RMS Clamp Meter
- 36-inch iFlex® Flexible Current Probe
- TPAK magnetic hanging strap
- TL75 Test Leads
- Two AA batteries (Installed)
- Soft carrying case
- Coated instruction card
- Safety information sheet
Specification
| General Specifications | ||||||
| AC Current via Jaw | ||||||
| Range | 999.9 A | |||||
| Resolution | 0.1 A | |||||
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz) | |||||
| 2.5% ±5 digits (100-500 Hz) | ||||||
| Crest Factor (50 Hz/60 Hz) | 3 @ 500 A | |||||
| 2.5 @ 600 A | ||||||
| Add 2% for C.F. >2 | ||||||
| AC Current via Flexible Current Probe | ||||||
| Range | 2500 A | |||||
| Resolution | 0.1 A (≤ 600 A) | |||||
| 1 A (≤ 2500 A) | ||||||
| Accuracy | 3% ±5 digits (5 – 500 Hz) | |||||
| Crest Factor (50/60Hz) | 3.0 at 1100 A | |||||
| 2.5 at 1400 A | ||||||
| 1.42 at 2500 A | ||||||
| Add 2% for C.F. > 2 | ||||||
 |
||||||
| i2500-10 Flex | i2500-18 Flex | i2500-36 Flex | ||||
| A | ||||||
| Distance from Optimum | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | 4.8 in (122.2 mm) | |||
| Error | ±0.5 % | ±0.5 % | ±0.5 % | |||
| B | ||||||
| Distance from Optimum | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | 5.3 in (133.6 mm) | |||
| Error | ±1.0 % | ±1.0 % | ±1.0 % | |||
| C | ||||||
| Distance from Optimum | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | 5.8 in (147.6 mm) | |||
| Error | ±2.0 % | ±2.0 % | ±2.0 % | |||
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | ||||||
| DC Current | ||||||
| Range | 999.9 A | |||||
| Resolution | 0.1 A | |||||
| Accuracy | 2% ±5 digits | |||||
| AC Voltage | ||||||
| Range | 1000 V | |||||
| Resolution | 0.1 V (≤600.0 V) | |||||
| 1 V (≤1000 V) | ||||||
| Accuracy | 1% ±5 digits (20 Hz to 500 Hz) | |||||
| DC Voltage | ||||||
| Range | 1000 V | |||||
| Resolution | 0.1 V (≤600.0 V) | |||||
| 1 V (≤1000 V) | ||||||
| Accuracy | 1% ±5 digits | |||||
| mV dc | ||||||
| Range | 500.0 mV | |||||
| Resolution | 0.1 mV | |||||
| Accuracy | 1% ±5 digits | |||||
| Frequency via Jaw | ||||||
| Range | 5.0 Hz to 500.0 Hz | |||||
| Resolution | 0.1 Hz | |||||
| Accuracy | 0.5% ±5 digits | |||||
| Trigger level | 5 Hz to 10 Hz, ≥10 A | |||||
| 10 Hz to 100 Hz, ≥5 A | ||||||
| 100 Hz to 500 Hz, ≥10 A | ||||||
| Frequency via Flexible Current Probe | ||||||
| Range | 5.0 Hz to 500.0 Hz | |||||
| Resolution | 0.1 Hz | |||||
| Accuracy | 0.5% ±5 digits | |||||
| Trigger level | 5 Hz to 20 Hz, ≥25 A | |||||
| 20 Hz to 100 Hz, ≥20 A | ||||||
| 100 Hz to 500 Hz, ≥25 A | ||||||
| Resistance | ||||||
| Range | 60 kΩ | |||||
| Resolution | 0.1 Ω (≤600 Ω) | |||||
| 1 Ω (≤6000 Ω) | ||||||
| 10 Ω (≤60 kΩ) | ||||||
| Accuracy | 1% ±5 digits | |||||
| Capacitance | ||||||
| Range | 1000 μF | |||||
| Resolution | 0.1 μF (≤ 100 μF) | |||||
| 1 μ F (≤ 1000 μF) | ||||||
| Accuracy | 1% ±4 digits | |||||
| Mechanical Specifications | ||||||
| Maximum voltage between any terminal and earth ground | 1000 V | |||||
| Batteries | 2 AA, NEDA 15A, IEC LR6 | |||||
| Operating temperature | -10 °C to +50 °C | |||||
| Storage temperature | -40 °C to +60 °C | |||||
| Operating humidity - non-condensing (< 10°C) |
≤90% RH (at 10 °C to 30 °C) | |||||
| ≤75% RH (at 30 °C to 40 °C) | ||||||
| ≤45% RH (at 40 °C to 50 °C) | ||||||
| Operating altitude | 2000 m | |||||
| Storage altitude | 12,000 m | |||||
| Size (L x W x H) | 249 x 85 x 45 mm | |||||
| Weight | 395 g | |||||
| Jaw opening | 34 mm | |||||
| Flexible current probe diameter | 7.5 mm | |||||
| Flexible current probe cable length (head to electronics connector) |
1.8 m | |||||
| Safety | IEC 61010-1, Pollution Degree 2 | |||||
| IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V | ||||||
| IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V | ||||||
| IP rating | IEC 60529: IP30, non-operating | |||||
| Radio Frequency Certification FCC ID | T68-FBLE IC:6627A-FBLE | |||||
| Electromagnetic Compatibility (EMC) | ||||||
| International | IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 | |||||
| CISPR 11: Group 1, Class A | ||||||
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. | ||||||
| Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. | ||||||
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication Equipment) | |||||
| Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. | ||||||
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. | |||||
| Temperature coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C | |||||
