Overview
VortexMaster flowmeters are used for accurate measurement of the flow of gas, liquid, and steam over a wide temperature range. Vortex meters are ideal for measuring low viscose liquids, demineralized water, and direct steam mass flow, and they are ideal for cost-effective, integral temperature measurement.

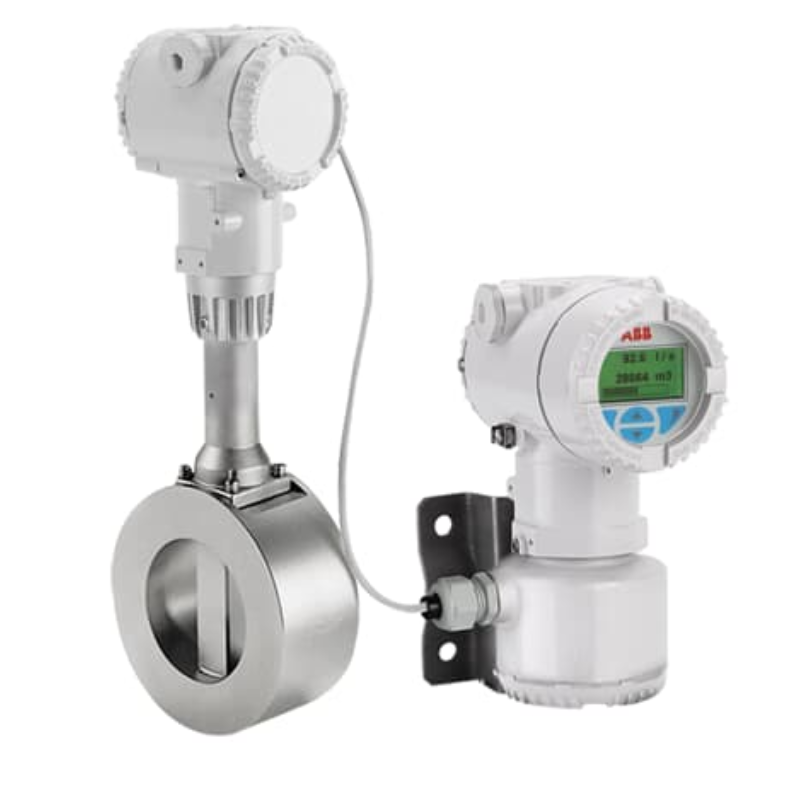

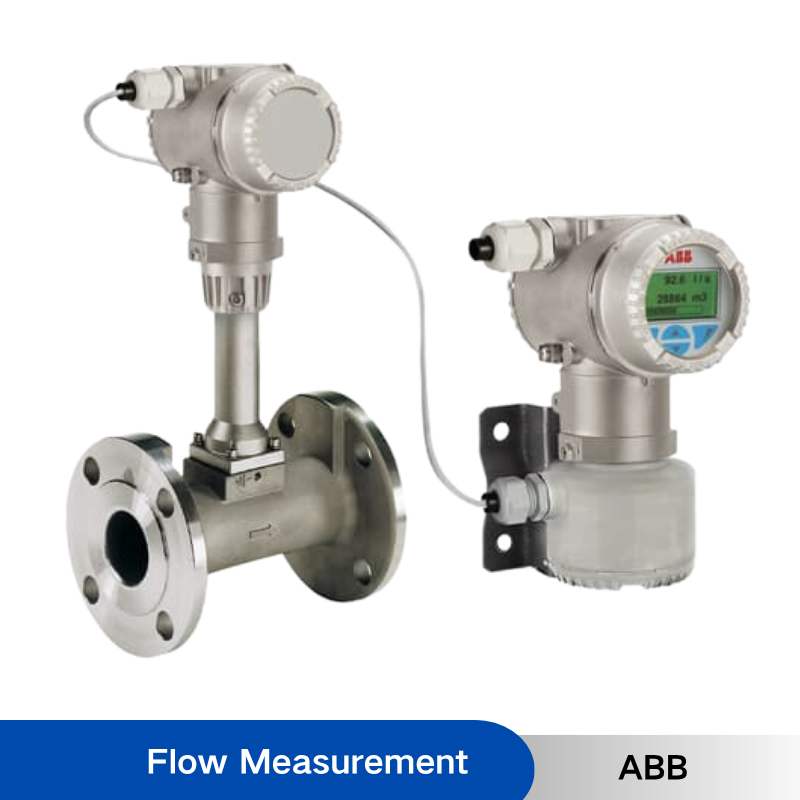

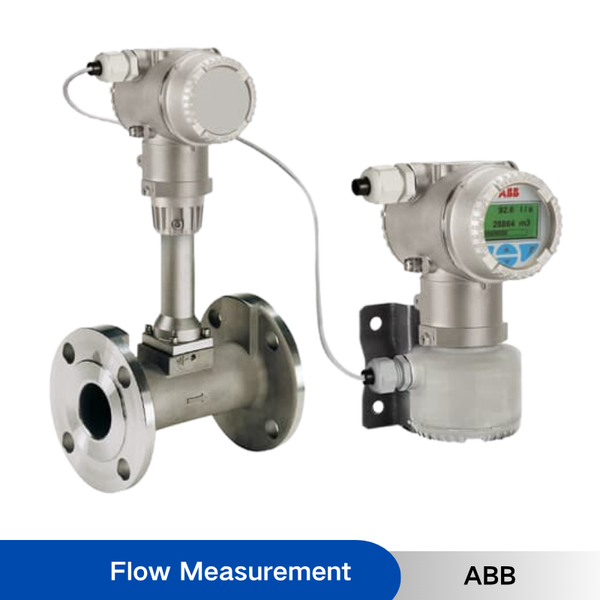

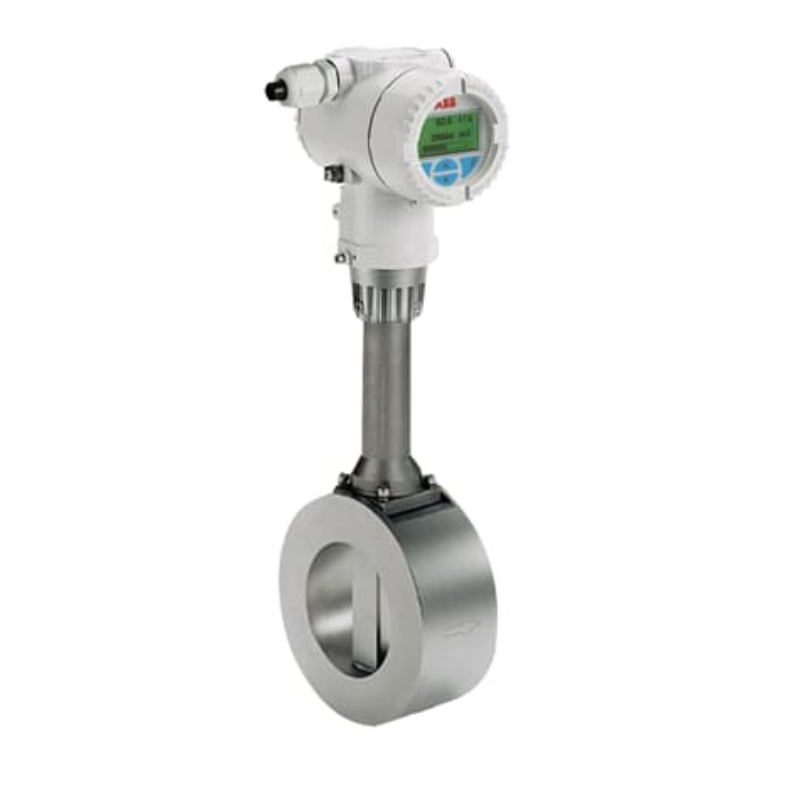

VortexMaster FSV450 is the advanced version with additional analog input for mass or energy flow measurement, available with an integral or remote transmitter with up to 30 m (98 ft.) cable length. Because of the optional inputs, discrete-flow computers are no longer needed in many applications.
VortexMaster FSV450 is available with multiple communication protocols, such as
- 4 to 20mA / HART 7
- Modbus TCP and Profinet via Ethernet -APL
- Modbus RTU.
Optionally available:
- Smart HMI with backlight and Bluetooth functionality for easy meter setup (Ethernet-APL device only)
- Remote transmitter with up to 30m (98 ft.) cable length
- Stainless steel transmitter housings
- SIL 2
Benefits
Flexible Connectivity
Choose from a wide range of communication options to fit your system:
• Analog and digital protocols: 4–20 mA/HART®, Modbus RTU®, PROFIBUS®, FOUNDATION Fieldbus®
• Modern Ethernet-APL™: Modbus TCP®, PROFINET®, Webserver
• Optional Bluetooth via SMART HMI for wireless access
Reliable Performance in Demanding Conditions
Built to deliver stable and accurate results across applications:
• Drift-free sensor design ensures long-term measurement stability
• Standardized installation lengths for easy replacement (NAMUR-compliant)
• High resistance to pipe vibrations and process noise
Fast Setup & Intuitive Operation
Save time during commissioning and daily use:
• Easy Set-up menu for guided configuration
• Autozero function for quick adaptation to changing environments
• Capacitive buttons for operation through the front glass
• Tool-free, programming-free electronics module exchange via Integrated SensorMemory
Smart Diagnostics & Support
Stay in control with built-in intelligence:
• Real-time self-diagnostics with clear text messages
• 24/7 support via “My Measurement Assistant”: error codes, tutorials, checklists
Integrated Energy Measurement
Measure more than just flow:
• Built-in temperature sensor
• Easy connection of external pressure transmitters
• Direct mass and energy calculation for steam and water
Specification
| Item | Value |
|---|---|
| Brand Name | ABB |
| Model Number | FSV450 |
| Product Type | VortexMaster Intelligent Vortex Flowmeter |
| Measurement Technology | Vortex Shedding Flow Measurement |
| Measurement Principle | Kármán Vortex Street Principle |
| Measured Media | Liquids, Gases and Steam |
| Measurement Parameters | Volume Flow, Standard Volume Flow, Mass Flow and Energy Flow |
| Accuracy | Liquids: ±0.65% of Rate; Gases and Steam: ±0.9% of Rate |
| Nominal Diameter | Flange Type: DN15 to DN300 (1/2 to 12 in.); Wafer Type: DN25 to DN150 (1 to 6 in.) |
| Process Connection | Flange Mount and Wafer Type Design |
| Output Signal | 4 to 20 mA; Pulse/Frequency Output (Optional) |
| Communication Protocols | HART 7; Modbus RTU; Modbus TCP / PROFINET via Ethernet-APL (Configuration Dependent) |
| Transmitter Design | Integral Mount or Remote Mount Version (Up to 30 m Cable) |
| Power Supply | Two-Wire Loop Powered |
| Flow Computer Function | Integrated Flow Computer for Gas, Liquid and Steam Calculations |
| Mass Flow Calculation | Direct Mass Flow Measurement for Gases, Liquids and Steam |
| Energy Measurement | Direct Energy Flow Calculation for Steam and Water |
| Temperature Measurement | Integrated RTD for Temperature Compensation and Saturated Steam Mass Flow Calculation |
| External Inputs | Analog Input for Pressure, Temperature, Density or Gas Composition Sensors |
| Display | Graphical Display with Easy Setup Function |
| Configuration | Configuration Through Front Glass Without Opening Housing |
| Diagnostics | Device Diagnostics and Condition Monitoring Functions |
| Vibration Compensation | Advanced DSP Technology with Vibration Compensation |
| Housing Material | Aluminum or Stainless Steel Housing (Configuration Dependent) |
| Explosion Protection | ATEX, IECEx, cFMus, NEPSI (Configuration Dependent) |
| Safety Certification | SIL2 Certified According to IEC 61508 |
| Key Features | Enhanced Flow Computer Functionality, Direct Mass/Energy Flow Measurement, Two-Wire Design, High Vibration Immunity, Flexible Communication Options |
| Applications | Steam Measurement, Compressed Air, Natural Gas, Process Gas, Demineralized Water, Chemical Processing and Energy Management Applications |
