Overview
VortexMaster flowmeters accurately measure the flow of gases, liquids and steam over a wide range of temperatures. Vortex meters are ideal for use on all kinds of gases, low viscose liquids, and demineralized water, and they are ideal for direct, cost-effective steam mass flow measurement.
VortexMaster FSV430 is available with multiple communication protocols, such as
- 4 to 20mA / HART 7
- Modbus TCP and Profinet via Ethernet -APL
- Modbus RTU
Optionally available:
- Smart HMI with backlight and bluetooth functionality for easy meter set up (Ethernet APL-device only)
- Integrated RTD for temperature compensation and saturated steam mass flow calculation
- Digital outputs for pulses, frequency and alarm signalization

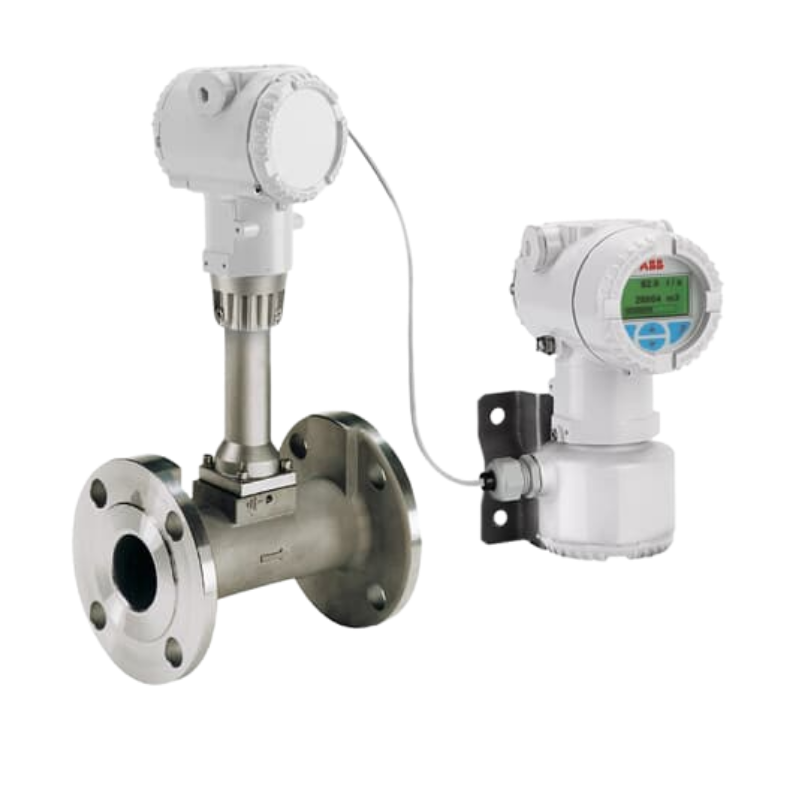

- Remote transmitter with up to 30m (98 ft.) cable length
- Stainless steel transmitter housings
Benefits
Flexible Connectivity
Choose from a wide range of communication options to fit your system:
• Analog and digital protocols: 4–20 mA/HART®, Modbus RTU®, PROFIBUS®, FOUNDATION Fieldbus®
• Modern Ethernet-APL™: Modbus TCP®, PROFINET®, Webserver
• Optional Bluetooth via SMART HMI for wireless access
Reliable Performance in Demanding Conditions
Built to deliver stable and accurate results across applications:
• Drift-free sensor design ensures long-term measurement stability
• Standardized installation lengths for easy replacement (NAMUR-compliant)
• High resistance to pipe vibrations and process noise
Fast Setup & Intuitive Operation
Save time during commissioning and daily use:
• Easy Set-up menu for guided configuration
• Autozero function for quick adaptation to changing environments
• Capacitive buttons for operation through the front glass
• Tool-free, programming-free electronics module exchange via Integrated SensorMemory
Smart Diagnostics & Support
Stay in control with built-in intelligence:
• Real-time self-diagnostics with clear text messages
• 24/7 support via “My Measurement Assistant”: error codes, tutorials, checklists
Integrated Energy Measurement
Measure more than just flow:
• Built-in temperature sensor
• Easy connection of external pressure transmitters
• Direct mass and energy calculation for steam and water
Specification
| Item | Value |
|---|---|
| Brand Name | ABB |
| Model Number | FSV430 |
| Product Type | VortexMaster Vortex Flowmeter |
| Measurement Technology | Vortex Shedding Flow Measurement |
| Measurement Principle | Kármán Vortex Street Principle |
| Measured Media | Liquids, Gases and Steam |
| Measurement Parameters | Volume Flow Measurement |
| Accuracy | Liquids: ±0.65% of Rate; Gases and Steam: ±0.9% of Rate |

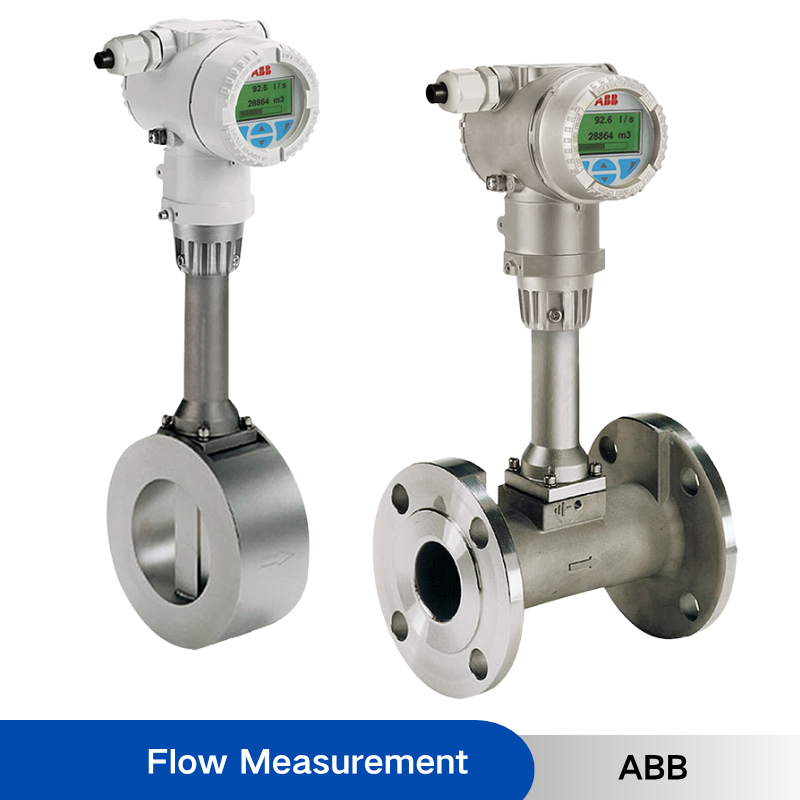

| Nominal Diameter | Flange Type: DN15 to DN300 (1/2 to 12 in.); Wafer Type: DN25 to DN150 (1 to 6 in.) |

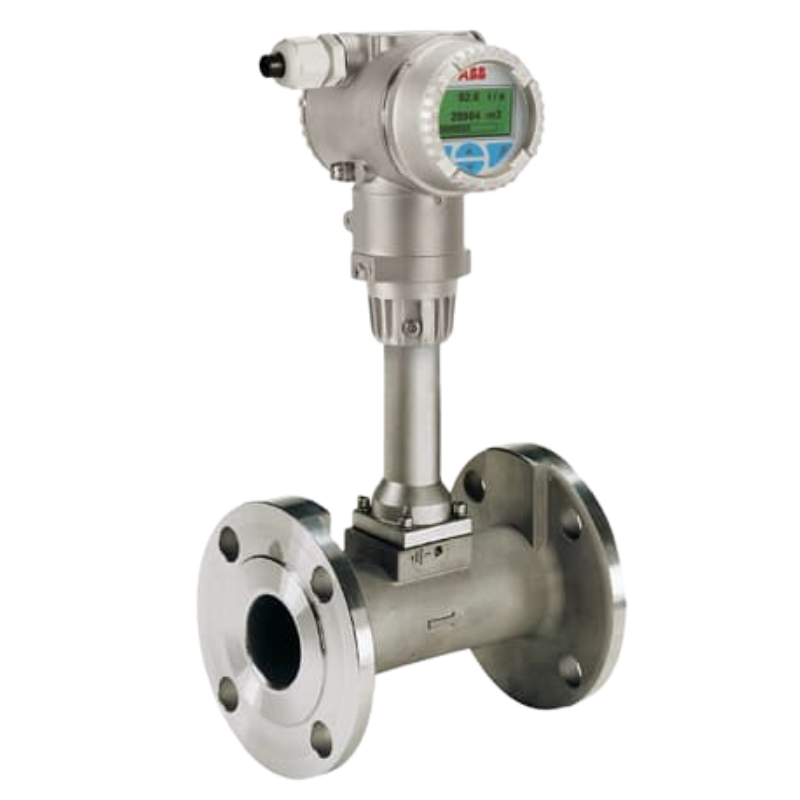

| Process Connection | Flange Mount and Wafer Type Design |
| Output Signal | 4 to 20 mA |
| Communication Protocols | HART 7; Modbus RTU RS485; Ethernet-APL Communication (Configuration Dependent) |
| Display | Graphical Display (Configuration Dependent) |
| Transmitter Design | Integral Mount or Remote Transmitter with Cable up to 30 m |
| Power Supply | Two-Wire Loop Powered |
| Temperature Measurement | Optional Integrated RTD for Temperature Compensation |
| Steam Measurement | Saturated Steam Mass Flow Calculation (With Integrated Temperature Measurement Option) |
| Digital Outputs | Optional Pulse, Frequency and Alarm Outputs |
| Vibration Compensation | Advanced DSP Technology with Vibration Compensation |
| Diagnostics | Device Diagnostics and Condition Monitoring Functions |
| Housing Material | Aluminum or Stainless Steel Housing (Configuration Dependent) |
| Fluid Temperature | Configuration Dependent |
| Ambient Temperature | Configuration Dependent |
| Protection Rating | Configuration Dependent |
| Explosion Protection | ATEX, IECEx, cFMus, NEPSI (Configuration Dependent) |
| Safety Certification | SIL2 Certified According to IEC 61508 |
| Key Features | High Vibration Immunity, Two-Wire Design, Easy Configuration Through Glass Display, Reliable Measurement of Gas/Liquid/Steam |
| Applications | Steam Measurement, Compressed Air, Gas Measurement, Process Liquids, Demineralized Water, Chemical and Industrial Applications |
