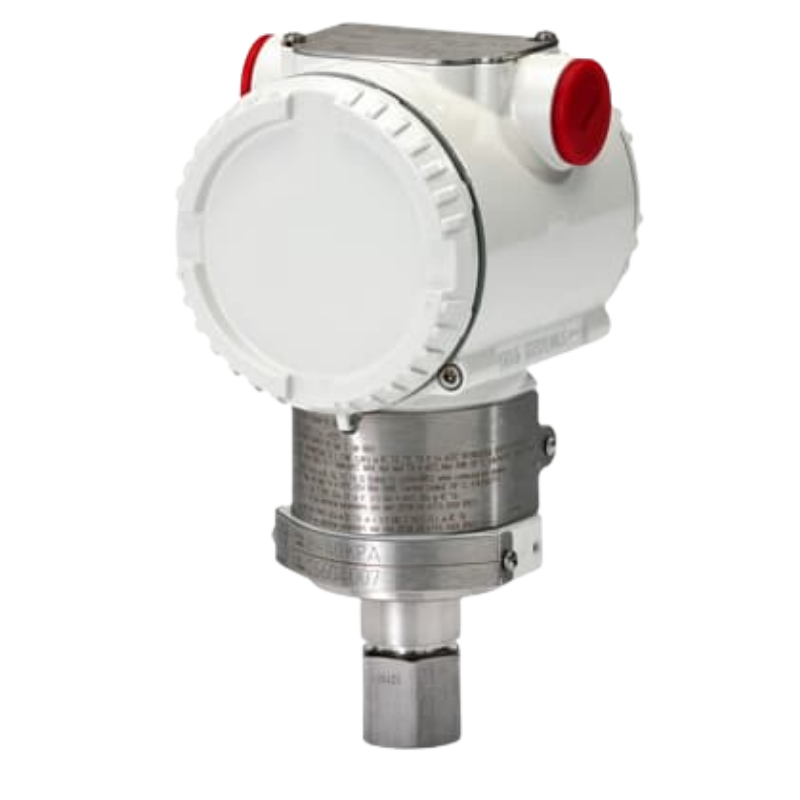

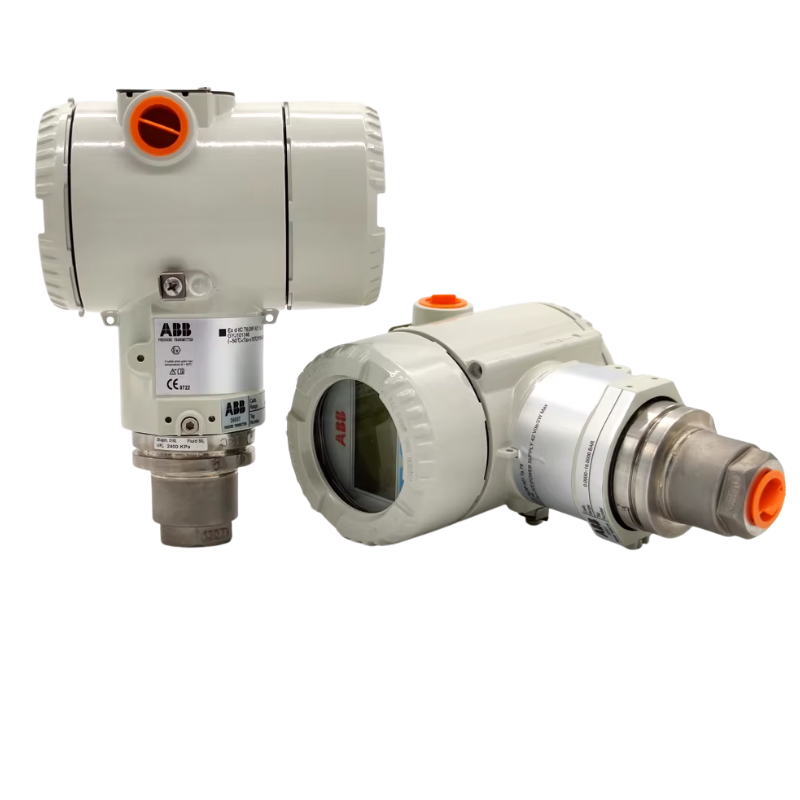

Overview
With a long-term stability, 266GSH grants lasting performances even in extreme ambient and process conditions. In addition to the traditional configuration tool (provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration tools) the innovative TTG (Through The Glass) technology allow users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time, highlighting ABB commitment to satisfy users’ needs of simplicity and flexibility.
This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.
SIL2/SIL3 certification issued by TÜV Nord according to IEC 61508 represents another key-feature within 266 pressure transmitter portfolio. This certification is a real guarantee of protection and makes of 266GSH the smartest fit in Safety-critical loops.
266GSH: smartness beyond performances.
Benefits
• High Accuracy – Base accuracy from ±0.06%• Wide Measurement Range – Span limits from 0.2 kPa to 105 MPa
• Excellent Long-Term Stability – Reliable performance for demanding process conditions
• Easy Field Configuration – TTG technology enables configuration without opening the housing
• Reduced Maintenance – Field-replaceable electronics with automatic configuration
• Flexible Communication – HART, PROFIBUS PA and FOUNDATION Fieldbus options
• Safety-Critical Applications – SIL2/SIL3 certification according to IEC 61508
Specification
| item | value | ||
|---|---|---|---|
| accuracy | From ±0.06% | ||
| type | Gauge Pressure Transmitter | ||
| brand name | ABB | ||
| model number | 266GSH | ||
| measurement type | Gauge Pressure | ||
| measurement media | Liquid, Gas or Steam | ||
| level measurement | Liquid Level in Open Tanks | ||
| span limits | 0.2 kPa to 105 MPa; 0.8 inH₂O to 15,228 psi | ||
| output signal | 4 to 20 mA | ||
| communication protocols | HART, PROFIBUS PA, FOUNDATION Fieldbus | ||

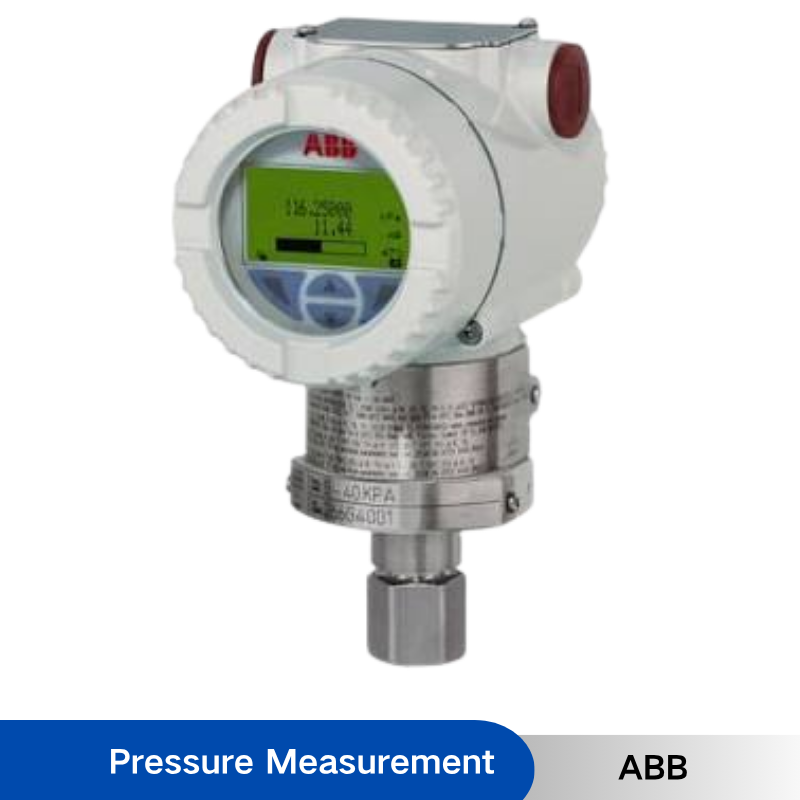

| display | Optional LCD Display | ||
| display technology | TTG (Through-The-Glass) | ||
| turndown ratio | Up to 100:1 | ||
| long-term stability | 0.15% of URL over 10 years | ||
| electronics | Field-Replaceable Electronics Module with Auto-Configuration | ||
| terminal block | Plug-In Terminal Block | ||
| process connection | 1/2 in. - 14 NPT Male or Female; DIN EN837-1 G 1/2 B | ||
| electrical connection | 1/2 in. - 14 NPT or M20 × 1.5 | ||
| mounting | Pipe or Wall Mounting | ||
| mounting bracket | 60 mm (2 in.) Pipe or Wall Mounting | ||
| housing | Standard Housing; AISI Housing Option Available | ||
| communication connector | HART, FOUNDATION Fieldbus and PROFIBUS PA Options | ||
| safety certification | SIL2 / SIL3 according to IEC 61508 | ||
| pressure equipment compliance | PED Category III | ||
| surge protection | Optional | ||
| features | Long-Term Stability, TT |
