Overview
The vibronic level switch in basic applications reduces complexities in your plant;
Specs at a glance
* Process temperature
-40 °C...+150 °C
(-40 °F...+302 °F)
* Process pressure / max. overpressure limit
Vacuum...40 bar
(Vacuum...580 psi)
* Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional)
-40 °C...+150 °C
(-40 °F...+302 °F)
* Process pressure / max. overpressure limit
Vacuum...40 bar
(Vacuum...580 psi)
* Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional)
Field of application
Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device.
With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.

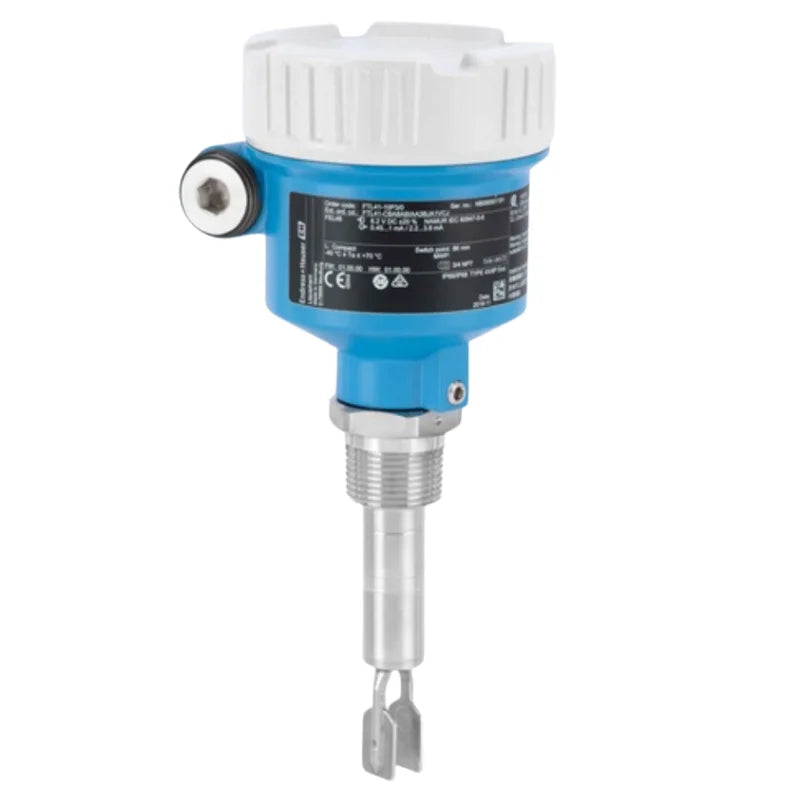

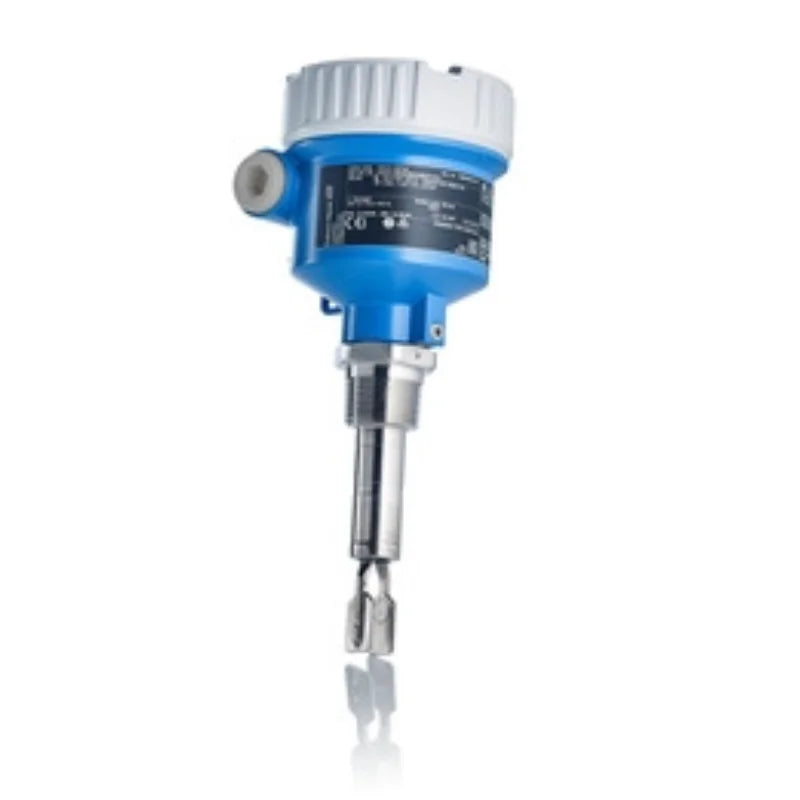

Point level switch with extension tube for all liquids.
* Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
* Temperature: -40 to +150°C (-40 to +302°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Sensor material: 316L
* International explosion protection certificates, WHG
With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.
Point level switch with extension tube for all liquids.
* Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
* Temperature: -40 to +150°C (-40 to +302°F)
* Pressure: -1 to +40bar (-14.5 to +580psi)
* Sensor material: 316L
* International explosion protection certificates, WHG
Benefits
* One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technology
* Better long-term stability compared to float switches due to no mechanically moving parts
* Repeatability of switching point
* Universal use in all pumpable liquids
* No need of maintenance
* Better long-term stability compared to float switches due to no mechanically moving parts
* Repeatability of switching point
* Universal use in all pumpable liquids
* No need of maintenance
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquiphant FTL41
|
|
Material
|
316L
|
|
Mode
|
Point Level Switch
|
|
Measuring Principle
|
Vibration Liquids
|
|
Characteristic / Application
|
Compact vibronic device with an optional pipe extension up to 2 m;
Modular housing concept; Wide range of certificates |
|
Specialities
|
RFID TAG for easy identification,
Plug and play functionalities |
|
Supply / Communication
|
10...55V / DC-PNP 3-wire
19...253V AC or 19...55V DC / relays NAMUR |
|
Ambient Temperature
|
-50°C ... 70°C
(-60°F ... 160 °F) |
|
Process Temperature
|
-40 °C...+150 °C
(-40 °F...+302 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...40 bar
(Vacuum...580 psi) |
|
Min. Density Of Medium
|
0.5 g/cm³
(0.4 g/cm³ optional) |
|
Main Wetted Parts
|
316L
|
|
Process Connection
|
Threads:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1 Flanges: DN25...DN100 ASME 1"...4" JIS 25A...50A |
|
Process Connection Hygienic
|
Tri-Clamp ISO2852
|
|
Sensor Length
|
Up to 2 m
|
|
Communication
|
DC-PNP 3-wire
Relays NAMUR |
|
Certificates / Approvals
|
ATEX, IEC Ex, CSA, NEPSI
|
|
Safety Approvals
|
Overfill protection WHG
|
|
Design Approvals
|
EN 10204-3.1
ASME B31.3 Process Piping CRN |
|
Marine Approval
|
ABS/ LR/ BV/ DNV
|
|
Components
|
FTL325N Interface NAMUR
|
