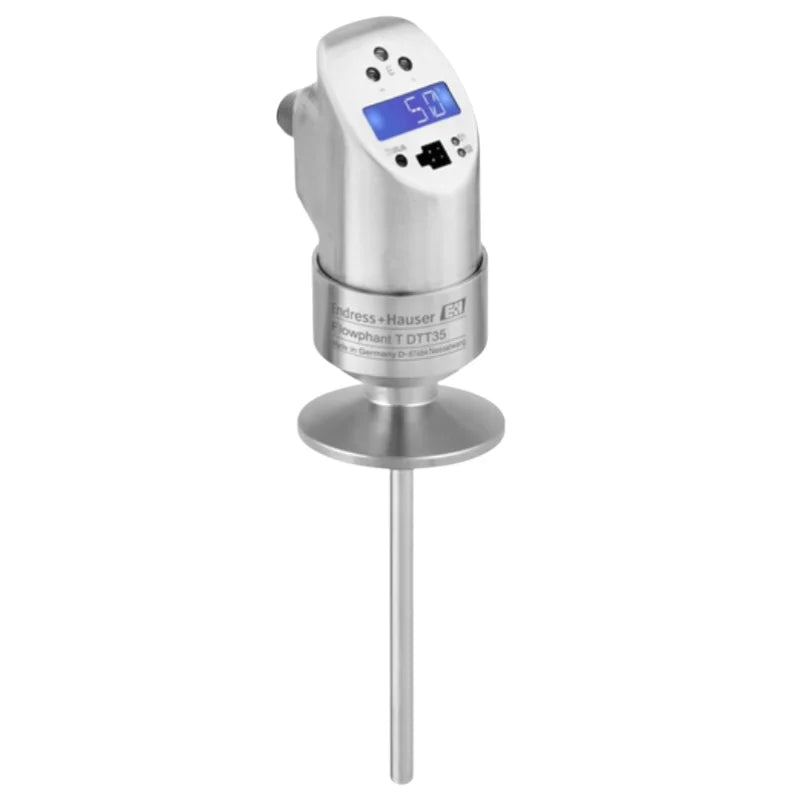

Endress+Hauser Flowphant T DTT35 Flow Switch

Endress+Hauser Flowphant T DTT35 Flow Switch

: В наличии

: Flow Measurement

: Endress+Hauser

Распродажа

Overview Safe monitoring of flow rates and temperature in hygienic processes. Compact and cost-saving. Specs at a glance * Max. measurement error2% - 10% (per measurement range)* Measuring...

Overview

Safe monitoring of flow rates and temperature in hygienic processes. Compact and cost-saving.
Specs at a glance

* Max. measurement error
2% - 10% (per measurement range)
* Measuring range
1"...40"
* Medium temperature range
-20...+85°C
(-4...+185°F)
CIP able to 130°C / 266°F
* Max. process pressure
100 bar (1.740 psi)

Field of application

The switch is designed for the safe monitoring and display of relative mass flow rates of liquid media in hygienic applications,for example the monitoring of cooling water circulation systems and filter monitoring in the beverage industry. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperaturevalues. A variety of hygienic process connections leads to a flexible use.
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT35 − with process connections for hygienic applications.
Application examples:
* Monitoring cooling water circulation systems of pumps, turbines, compressors and heat exchangers
* Leak monitoring in process lines
* Monitoring pump functionality
* Monitoring lubrication systems
* Filter monitoring in the beverage industry

Benefits

 * Practically no pressure loss
* Configuration software FieldCare for quick configuration and reliable storage of device settings
* Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage

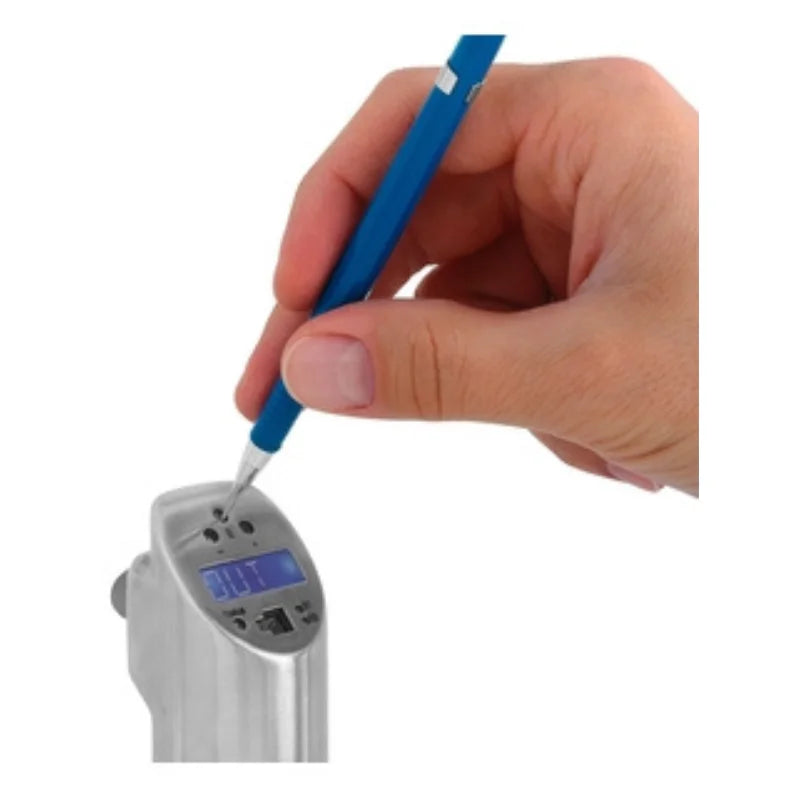

* Function check and process information onsite thanks to digital display at device
* Top housing section which can be rotated 310° and rotatable display make it possible to read the measured values in all orientations
* 3-A approval

Specification

item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Germany
Brand Name
Endress+Hauser
Model Number
Flowphant T DTT31
Type
Flow switch
Measuring Principle
Thermal
Product Headline
Flow switch for hygenic liquid applications, intelligent / programmable; insertion style
Nominal Diameter Range
DN 25...1000
Measuring Range
1"...40"
Max. Process Pressure
100 bar (1.740 psi)
Max. Measurement Error
2% - 10% (per measurement range)
Medium Temperature Range
-20...+85°C
(-4...+185°F)
CIP able to 130°C / 266°F
Degree Of Protection
IP66
Display/Operation
LED
LCD-Display
Outputs
1 x PNP switchable output + 1 x 4...20 mA analog output
