Overview
For continuous level and interface measurement in liquids.
Specs at a glance
* Process temperature
-80 °C ... +200 °C
(-112 °F ... +392 °F)
* Process pressure / max. overpressure limit
Vacuum ... 100 bar
(Vacuum ... 1450 psi)
-80 °C ... +200 °C
(-112 °F ... +392 °F)
* Process pressure / max. overpressure limit
Vacuum ... 100 bar
(Vacuum ... 1450 psi)
Application

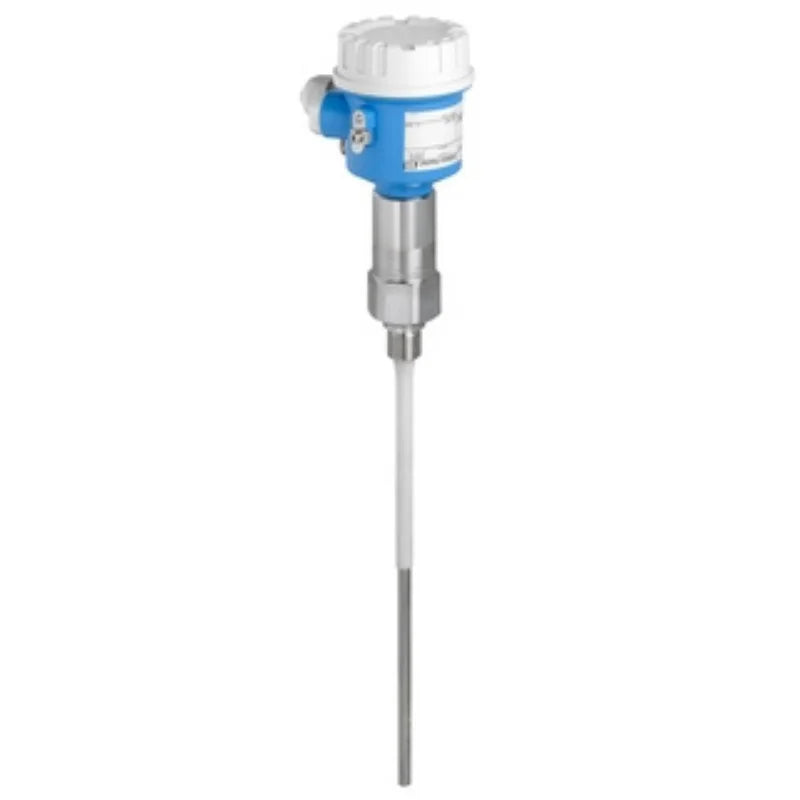

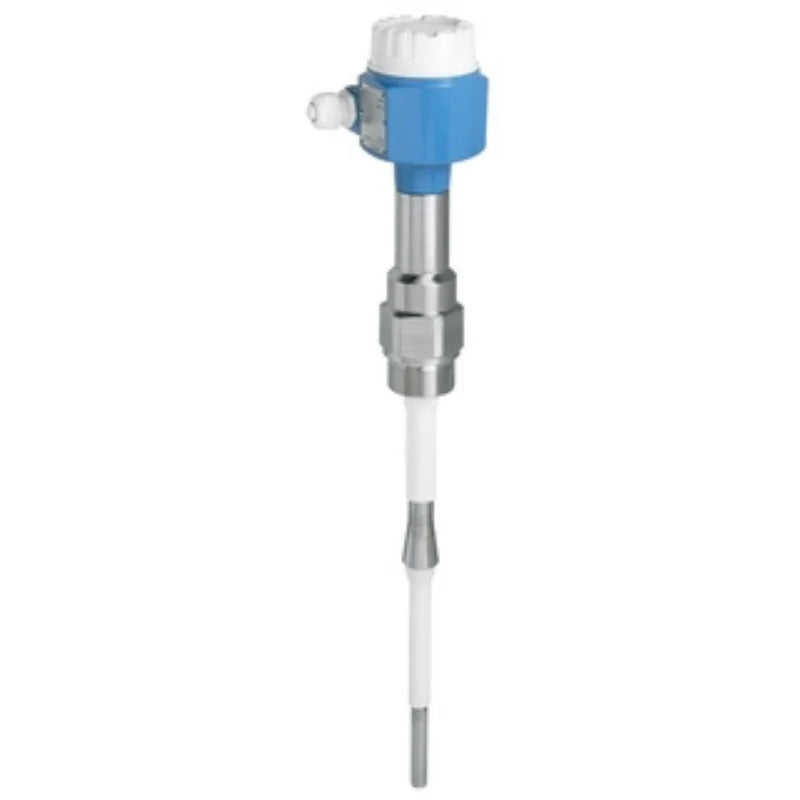

Liquicap FTI51 is a rod probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI51 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials - this guarantees a high safety standard.
For liquids that tend to form build-up. Interface detection of different liquids. Two-point control (pump control) with just one process connection. Foam detection of conductive liquids.
* Process connections: Flanges, threads, special hygienic process connections
* Temperature: -80 to +200°C (-112 to +392°F)
* Pressure: Vacuum to +100bar (vacuum to +1,450psi)
* Sensor length: 6m (20ft)
* International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
For liquids that tend to form build-up. Interface detection of different liquids. Two-point control (pump control) with just one process connection. Foam detection of conductive liquids.
* Process connections: Flanges, threads, special hygienic process connections
* Temperature: -80 to +200°C (-112 to +392°F)
* Pressure: Vacuum to +100bar (vacuum to +1,450psi)
* Sensor length: 6m (20ft)
* International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Benefits
* Cost savings thanks to easy and fast commissioning as calibration takes place at the press of a button
* Reliable and safe measurement due to active build-up compensation
* Reliable and universal application thanks to wide range of certificates and approvals
* Short reaction time
* Material in contact with the process made of corrosion-resistant and FDA-listed materials
* Two-stage overvoltage protection
* No need for recalibration after replacing electronics
* Reliable and safe measurement due to active build-up compensation
* Reliable and universal application thanks to wide range of certificates and approvals
* Short reaction time
* Material in contact with the process made of corrosion-resistant and FDA-listed materials
* Two-stage overvoltage protection
* No need for recalibration after replacing electronics
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Liquicap FTI51
|
|
Material
|
Sensor: 316L
Sensor isolation: PEEK |
|
Mode
|
Capacitance Point Level Detection
|
|
Measuring Principle
|
Capacitive Liquid
|
|
Characteristic / Application
|
Capacitive rod probe
|
|
Specialities
|
Interface detection
Foam detection |
|
Ambient Temperature
|
-50 °C ... +70 °C
(-58 °F ... +158 °F) With separate housing: -50 °C ... +120 °C (-58 °F ... +248°F) |
|
Process Temperature
|
-80 °C ... +200 °C
(-112 °F ... +392 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum ... 100 bar
(Vacuum ... 1450 psi) |
|
Main Wetted Parts
|
Insulation material: PTFE, PFA
316L |
|
Process Connection
|
G 1/2 ... 1 1/2
NPT 1/2 ... 1 1/2 Flange from DN25.../ASME 1".../JIS 10K... |
|
Process Connection Hygienic
|
Tri-Clamp ISO2852 gap free plated
Dairy coupling Flush mount |
|
Sensor Length
|
Total length of probe: max 6 m (20 ft)
|
|
Communication
|
2- wire 19-253 VAC
3-wire PFM Relay DPDT DC-PNP 8/16 mA |
|
Certificates / Approvals
|
ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, EAC
|
|
Safety Approvals
|
Overfill prevention WHG
SIL |
|
Design Approvals
|
EN 10204-3.1
NACE MR0175 |
|
Marine Approval
|
GL/ ABS/ DNV
|
|
Options
|
Inactive length
Fully isolated active build-up compensation Ground tube Separate housing |
|
Components
|
Transmitter
PFM: FTC325, FTC625, FTC470Z, FTC471Z 3-wire: FTC325 |
|
Application Limits
|
Notice the pressure and temperature derating.
Notice for non conductive medium the DK. |
