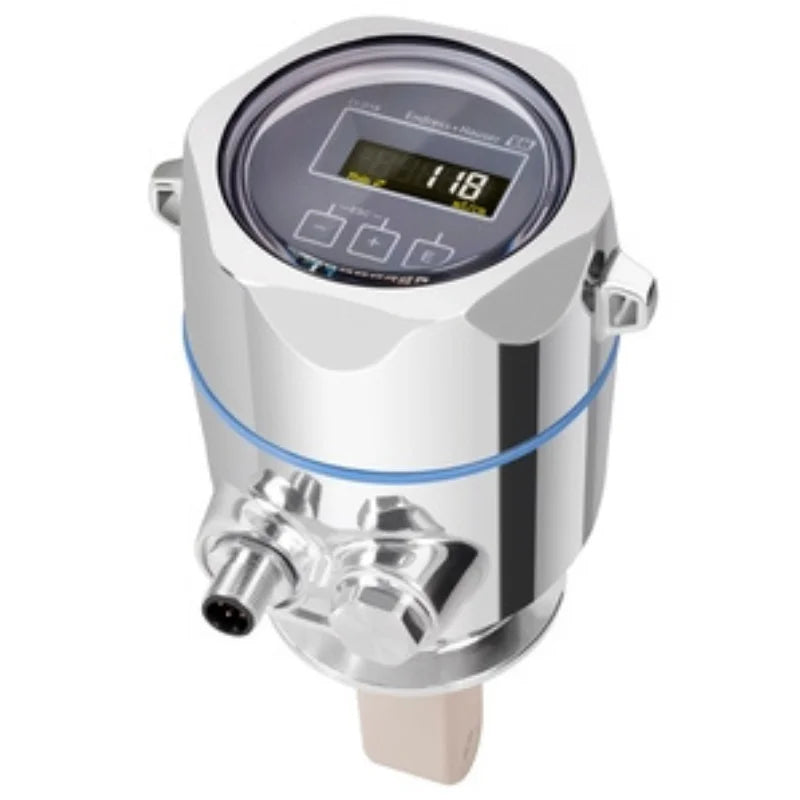

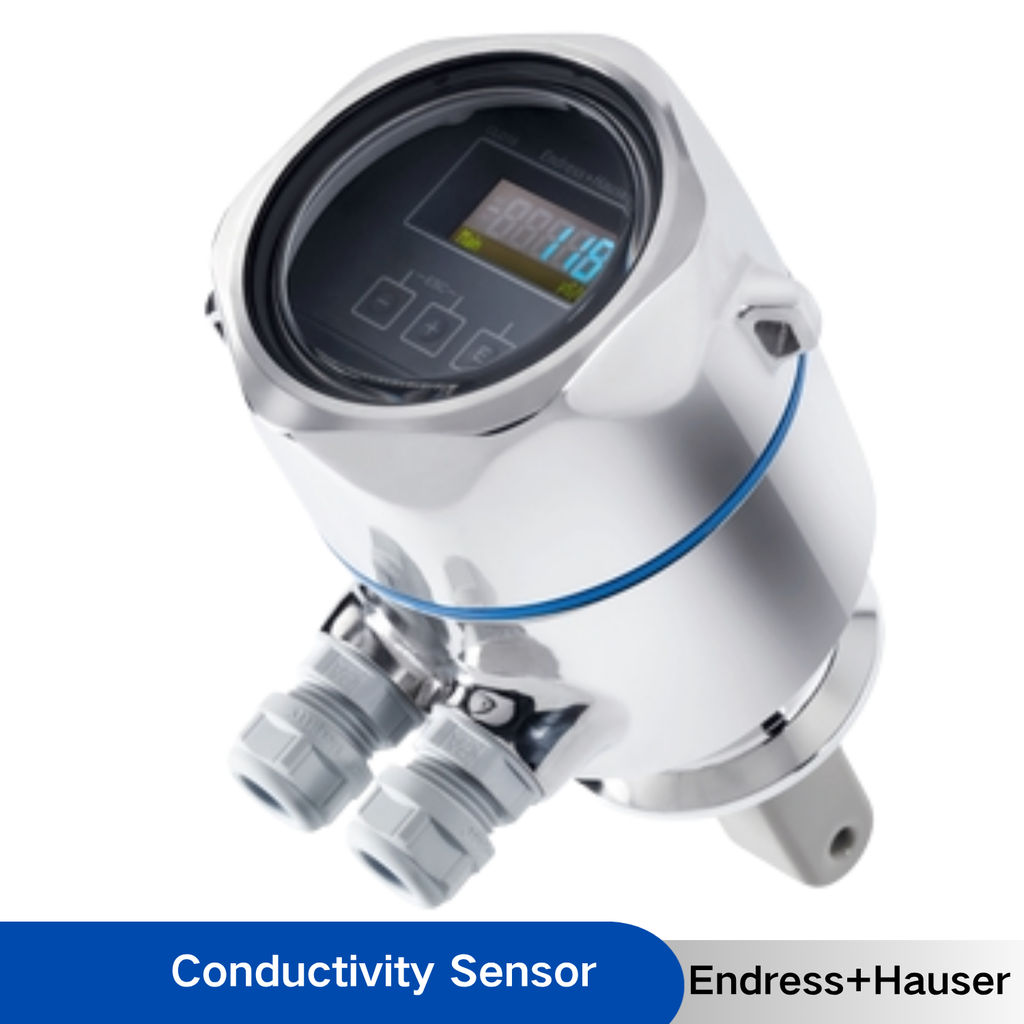

Endress+Hauser Compact Conductivity Device Smartec CLD18

Доступность: В наличии

Тип продукта: Liquid Analyzers

Обычная цена ~~$1,100.00~~ $1,225.00 Распродажа

Overview Toroidal conductivity measuring system for hygienic applications Application Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where...

Обычная цена ~~$1,100.00~~ $1,225.00 Распродажа

Кол-во

Application

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and optional IO-Link protocol.

The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

Control of CIP processes in the return channel
Concentration control in remaking of CIP cleaning agents
Product monitoring in pipe systems, bottling plants
Beer - Push water interphase
Beer - Water cut for brewing lines
Leakage monitoring

It features the following protocols and interfaces:

0/4...20mA
IO-Link (optional)

Condumax CLS21 measures conductivity in all process and environmental applications, such as:

Potable water treatment
Desalination plants
Industrial water treatment
River/lake monitoring
Phase separation in medium conductivities (e.g. milk/water)

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

Unique hygienic design avoids contamination

3-A approval

Compliant with EG 2023/2006 and 1935/2004

Suitable for cleaning-in-place (CIP)

Smart and easy integration into your plant infrastructure thanks to optional IO-Link protocol

Compact design permits installation in small tubes without restricting the flow

Specification

item	value
Grade	Industrial
Warranty	1 Year
Customized support	OEM
Place of Origin	Germany
Brand Name	Endress+Hauser
Model Number	CLD18
Measuring Principle	Inductive
Application	Specifically intended for use in beverage industry applications and especially suitable for: Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring
Measuring range	200 µS/cm to 1000 mS/cm Cell constant k: 11.0 1/cm
Measuring principle	Inductive conductivity measurement
Design	Hygienic design with FDA certified virgin PEEK
Material	Sensor: PEEK Process connection 1.4435 (316L) Seal: EPDM
Process temperature	-10 °C to 110 °C (14 °F to 230 °F) Sterilization: max. 130 °C at 6 bar abs up to 60 min (Max. 266 °F at 87 psi up to 60 min)
Process pressure	13 bar abs up to 50 °C (188.5 psi up to 122 °F) 7.75 bar abs at 110 °C (112 psi at 230 °F) 6.0 bar abs at 130 °C for max. 60 minutes (87 psi at 266 °F for max. 60 minutes)
Temperature sensor	Pt 1000 (class B)
Connection	Dairy pipe, aseptic-fitting DN40 and DN50, Clamp 2" ISO 2852, SMS-2", Varivent N DN 40-125 Thread G1 1/2 SS, G1 1/2 PVC , Union nut 2 1/4 Inch PVC
Ingress protection	IP69
Output / communication	0/4...20mA IO-Link (option)
Certificates, declarations and approvals	Inspection certificate 3.1, EN10204 US Food Contact Materials FDA CFR 21 EU Food Contact Materials (EG) 1935/2004 CN Food Contact Materials GB 4806 EHEDG EL Class I, 3-A
