Overview
Product Description

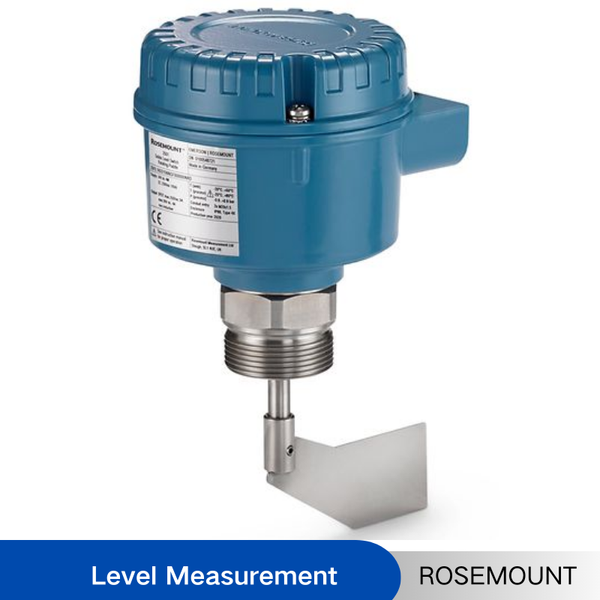

The Rosemount 2501 Solids Level Switch withstands heavy loads and extreme temperatures, and is suitable for full, demand or empty detection for all bulk media in all types of vessel. It is a simple, robust and reliable technology that is insensitive to dust,
electrical charge, adhesion, extreme temperature and pressure. It is simple to install and can be mounted in a vertical, horizontal or oblique position.
electrical charge, adhesion, extreme temperature and pressure. It is simple to install and can be mounted in a vertical, horizontal or oblique position.
Benefits
■ Ideal for point level detection of most bulk solids materials
■ Simple to install, maintenance-free measurement principle
■Reliable technology, unaffected by dust, electrostatic charge and clogging/caking
■ Robust NEMA® Type 4X housing(1), which is suitable for use in extreme process conditions
■ Designed for operation in temperature extremes of -40 °F to 2012 °F (-40 °C to 1100 °C)
■ Different models to suit different sizes/types of process vessels and storage silos
■ Generous space within housing with rotatable electronics, enabling easy wiring for quick installation
■ Encapsulated ball bearing with shaft sealing, ideal for dusty applications
■ Versatile installation in many types of vessel— It can be installed in vertical, horizontal, or angled positions with various extensions options available.
■ Compact boom length from 2¾ in. (70 mm) is particularly suited for small process vessels
Features
* Robust paddle design able to withstand heavy loads and extreme temperatures
* Mechanically stable shaft bearing design
* Unaffected by dust, electrostatic charging and caking
* From compact boom length of 2.76" up to 158" (70 mm up to 4000 mm)
* Wide range of process connections and supply voltages available
* Rotatable electronics housing for easy installation
* Mechanically stable shaft bearing design
* Unaffected by dust, electrostatic charging and caking
* From compact boom length of 2.76" up to 158" (70 mm up to 4000 mm)
* Wide range of process connections and supply voltages available
* Rotatable electronics housing for easy installation
![]()
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
Emerson/Rosemount
|
|
Model Number
|
2511
|
|
Material
|
316/316L
|
|
Mode
|
Vibrating Fork Solids Level Switch
|
|
Operating Pressure
|
145psi (10 bar)
|
|
Operating Temperature
|
-40 to 1100 °C -40 to 2012 °F
|
|
Certifications/Approvals
|
CE, ATEX, IECEx, FM, CSA
|
|
Material of construction
|
Aluminum or stainless stee
|
|
Output
|
Relay
|
|
Material Properties
|
Granulate/powder,Prone to caking,Abrasive material
|
|
Sensitivity
|
≥ 15 g/l
|
|
Process Temperature
|
-40 to 1100 °C -40 to 2012 °F
|
|
Process Pressure
|
10 bar
|
|
Housing (powder coated)
|
Aluminum IP66
|
