Overview

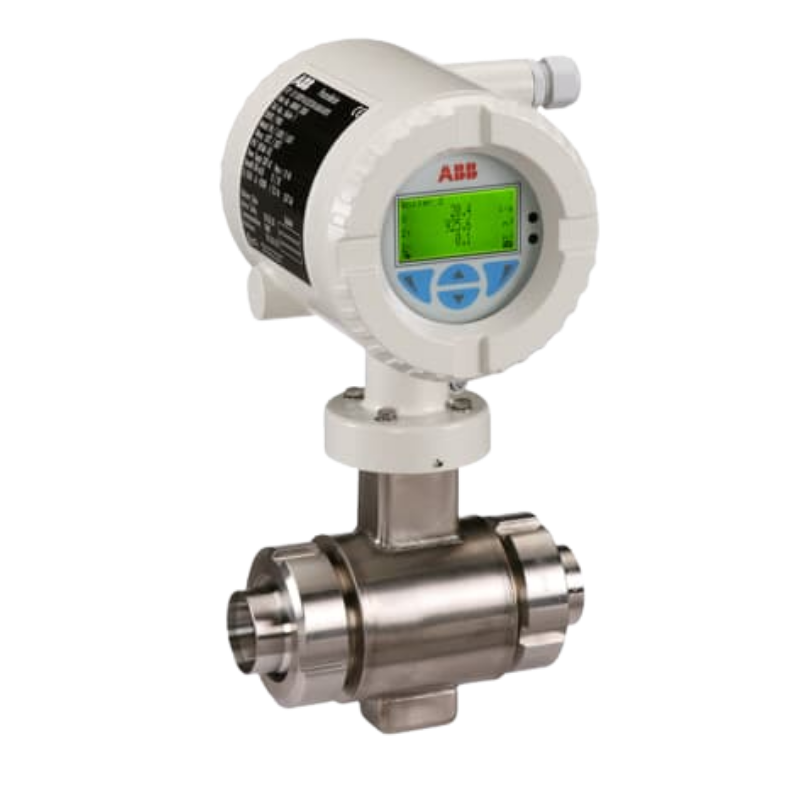

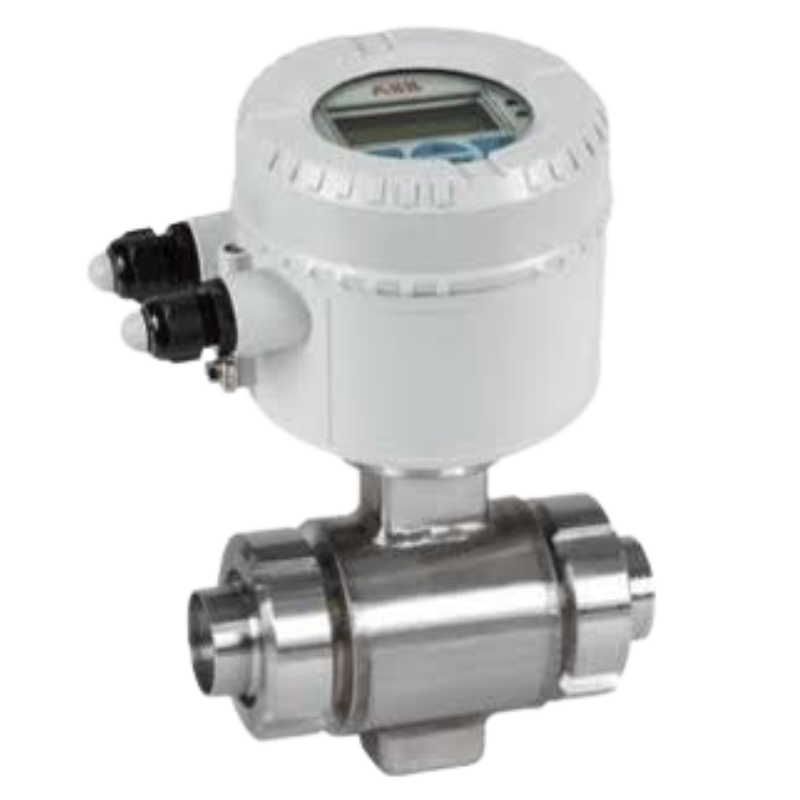

The HygienicMaster FEH500 enhanced version is designed specifically for the food & beverage, pharmaceutical and biotechnical industries. Manufactured from FDA approved materials and certified in accordance with 3-A.
Available as integral mount design or remote mount design system.
The stainless steel exterior, the variable process connection, the advanced signal processing and the state-of-the-art data storage provide a complete and cost effective flow solution.
HygienicMaster FEH500 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with extended functionality and options, short delivery and a simple and clearly understandable documentation.
- Intuitive and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– "Easy Set-up" function - State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration - Diagnostics for real-life-situations
– Status messages in accordance with NAMUR
– Help texts in LCD display - Extended diagnostic and monitoring functions
– Electrode coating detection
– Gas bubble detection
– Conductivity and sensor temperature monitoring
– Grounding verification
- ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant
Benefits
-
High Accuracy for Hygienic Processes
Provides precise and stable flow measurement for demanding food, beverage and pharmaceutical applications. -
Improved Process Reliability
Advanced diagnostics help identify process conditions and reduce unexpected downtime. -
Easy Commissioning and Maintenance
Sensor data storage and self-configuration simplify installation and transmitter replacement. -
Reduced Cleaning Effort
Hygienic design supports CIP/SIP cleaning procedures. -
Flexible Process Integration
Multiple hygienic connection options allow easy installation into different process systems. -
Efficient Batch Processing
Integrated batch functions support filling and dosing applications.
Specification
| item | value | |
|---|---|---|
| accuracy | ±0.3% of rate (Optional ±0.2% of rate) | |
| type | Hygienic Electromagnetic Flowmeter | |
| brand name | ABB | |
| model number | FEH500 | |
| measurement type | Magnetic Inductive Flow Measurement | |
| measurement media | Conductive Liquids | |
| flow measurement | Volume Flow Measurement of Hygienic Liquid Media | |
| measuring principle | Faraday's Law of Electromagnetic Induction | |
| nominal diameter | DN 1 to DN 100 (1/25 to 4 in.) | |
| output signal | 4 to 20 mA; Pulse/Frequency Output | |
| communication protocols | HART; PROFIBUS PA; FOUNDATION Fieldbus | |
| display | Graphic LCD Display | |
| display technology | Through-The-Glass (TTG) Configuration | |
| local operation | Configuration without Opening the Housing via Soft Keys and Easy Set-up Function | |
| electronics | Universal Modular Transmitter with Sensor Data Storage | |
| transmitter design | Compact Mount Design or Remote Mount Design | |
| diagnostics | Electrode Coating Detection, Gas Bubble Detection, Conductivity Monitoring, Sensor Temperature Monitoring, Grounding Verification | |
| batch function | Preset Counter, Overrun Correction, External Start/Stop and Batch End Contact | |
| verification function | ScanMaster In-Situ Verification Option | |
| process connection | Tri-Clamp, Weld Stubs, Threaded Pipe Connection, Flange and Hygienic Process Connections | |
| liner material | PFA (Vacuum Tight) | |
| electrode materials | Configuration Dependent | |
| fluid temperature | Up to 150 °C (302 °F) for CIP/SIP Cleaning | |
| pressure rating | Configuration Dependent | |
| protection rating | IP67 / IP68 (Configuration Dependent) | |
| certification | 3-A Sanitary Standard; FDA Approved Materials; EHEDG (Configuration Dependent) | |
| housing | Configuration Dependent (Compact or Remote Version) | |
| features | High Accuracy, Hygienic Design, Advanced Diagnostics, Batch Function, TTG Operation and Data Storage | |
| applications | Food & Beverage, Pharmaceutical, Biotechnology and Hygienic Process Industries |
