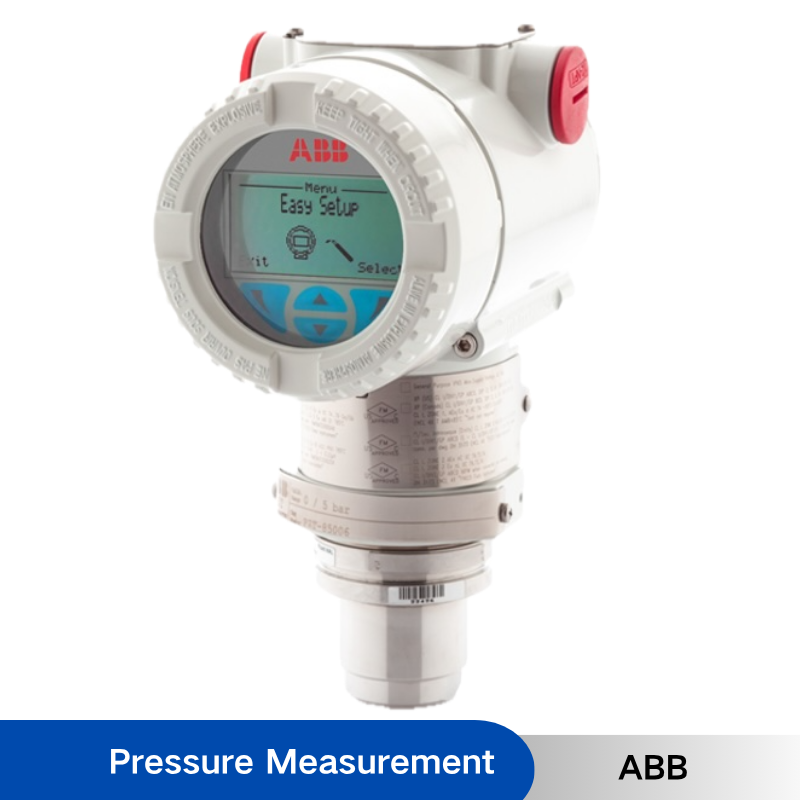

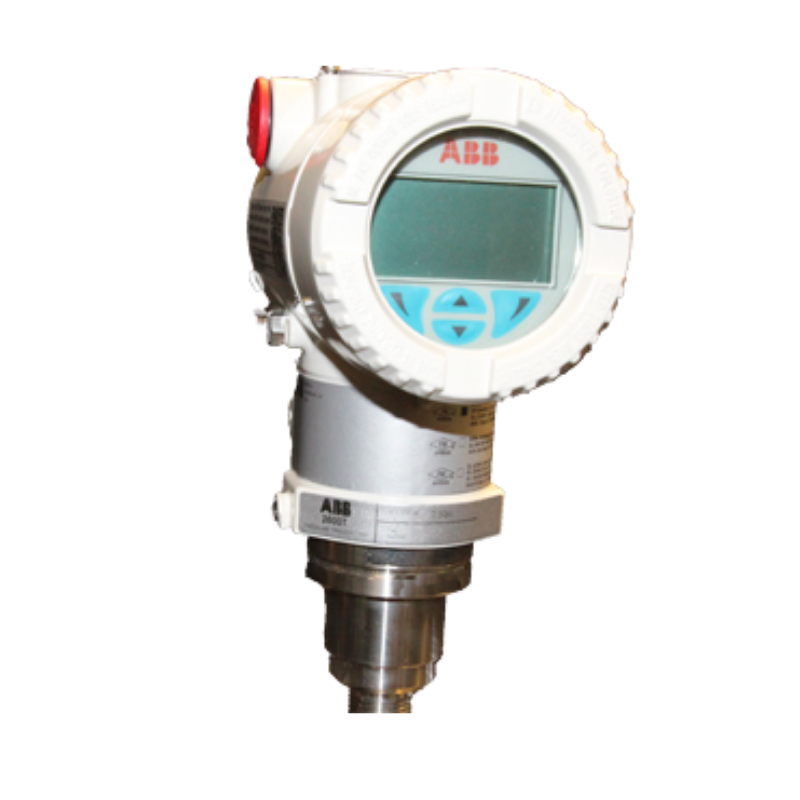

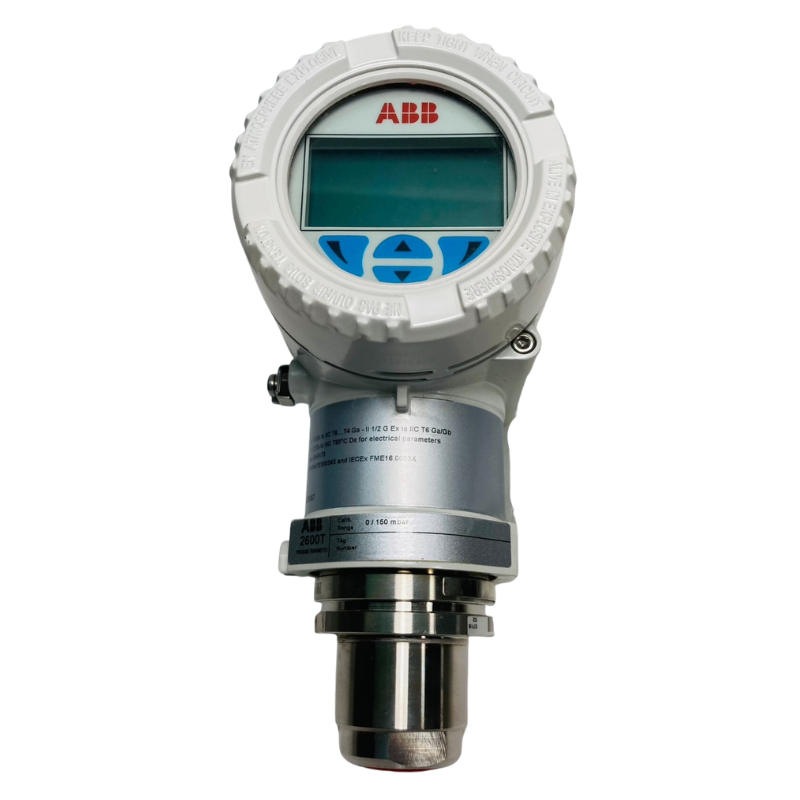

Overview
With a long-term stability, 266HSH grants lasting performances even in extreme ambient and process conditions. In addition to the traditional configuration tool (provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration tools) the innovative TTG (Through The Glass) technology allows users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time, highlighting ABB commitment to satisfy users’ needs of simplicity and flexibility.
This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.
SIL2/SIL3 certification issued by TÜV Nord according to IEC 61508 represents another key-feature within 266 pressure transmitter portfolio. This certification is a real guarantee of protection and makes of 266HSH the smartest fit in Safety-critical loops.
266HSH features WirelessHART communication protocol allowing a shorter installation times by eliminating complex wired infrastructures, and lower overall implementation costs of process measurement.
266HSH battery life is about 10 years at 32 sec. update rates, delivering a very cost effective and reliable solution to monitor your process assets.
Benefits
• from 0.06 % of calibrated span
Reliable sensing system coupled with very latest digital technologies
• provides large turn down ratio up to 100:1
Comprehensive sensor choice
• optimize in-use total performance and stability
10–year stability
• 0.15 % of URL
Flexible configuration facilities
• provided locally via local LCD keypad
TTG (Through-The-Glass) keypad technology
• allows quick and easy local configuration without opening the cover, even in explosion proof environments
IEC 61508 certification
• version for SIL2 (1oo1) and SIL3 (1oo2) applications
PED compliance
• Category III for PS > 20 MPa, 200 bar
• Sound Engineering Practice (SEP) for PS ≤ 20 MPa, 200 bar
WirelessHART version
• the battery powered solution compliant to IEC 62591
Best-in-class battery life
• up to 10 years @ 32 s update time
• in-field replaceable
Product in compliance with Directive 2011/65/UE (RoHS II)
In-built advanced diagnostics
Specification
| item | value | |
|---|---|---|
| accuracy | ±0.06% (Base Accuracy) | |
| type | High Overload Gauge Pressure Transmitter | |
| brand name | ABB | |
| model number | 266HSH | |
| measurement type | Gauge Pressure | |
| measurement media | Liquid, Gas or Steam | |
| level measurement | Liquid Level Measurement in Open Tanks (Configuration Dependent) | |
| span limits | 16 to 105000 kPa; 64 inH₂O to 15228 psi | |
| maximum working pressure | Up to 105 MPa; 1050 bar; 15225 psi | |
| output signal | 4 to 20 mA + HART | |
| communication protocols | HART; PROFIBUS PA 3.01; FOUNDATION Fieldbus; WirelessHART; Modbus® | |
| display | LCD | |
| display technology | TTG (Through The Glass) | |
| local operation | Configuration without opening the housing | |
| electronics | Field-Replaceable Electronics Module with Auto-Configuration | |
| terminal block | Plug-In Terminal Block | |
| turndown ratio | Up to 100:1 | |
| long-term stability | Excellent Long-Term Stability and Reliable Performance | |
| safety certification | SIL2 / SIL3 according to IEC 61508 | |
| pressure equipment compliance | PED Category III | |
| configuration | Local Keys, Handheld Terminal or PC Configuration Tools | |
| features | High Overload Capability, High Accuracy, TTG Technology, Field-Replaceable Electronics and Plug-and-Play Display | |
| applications | High Pressure Measurement for Liquid, Gas and Steam Applications | |
| process connection | Configuration Dependent | |
| electrical connection | Configuration Dependent | |
| wetted materials | Configuration Dependent (AISI 316L Stainless Steel, Hastelloy C-276 Options) | |
| housing | Configuration Dependent |
