Overview
For level measurement in aggressive liquids or applications with hygiene requirements.
Specs at a glance
* Accuracy
+/- 2 mm (0.08 in)
* Process temperature
-196...+200 °C(-321...+392 °F)
* Process pressure / max. overpressure limit
-Vacuum...25 bar (Vacuum...363 psi)
* Max. measurement distance
Standard: 40 m (131 ft)
With advanced dynamics: 60 m (197 ft)
* Main wetted parts
PTFE
+/- 2 mm (0.08 in)
* Process temperature
-196...+200 °C(-321...+392 °F)
* Process pressure / max. overpressure limit
-Vacuum...25 bar (Vacuum...363 psi)
* Max. measurement distance
Standard: 40 m (131 ft)
With advanced dynamics: 60 m (197 ft)
* Main wetted parts
PTFE
Application
For applications in aggressive liquids Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

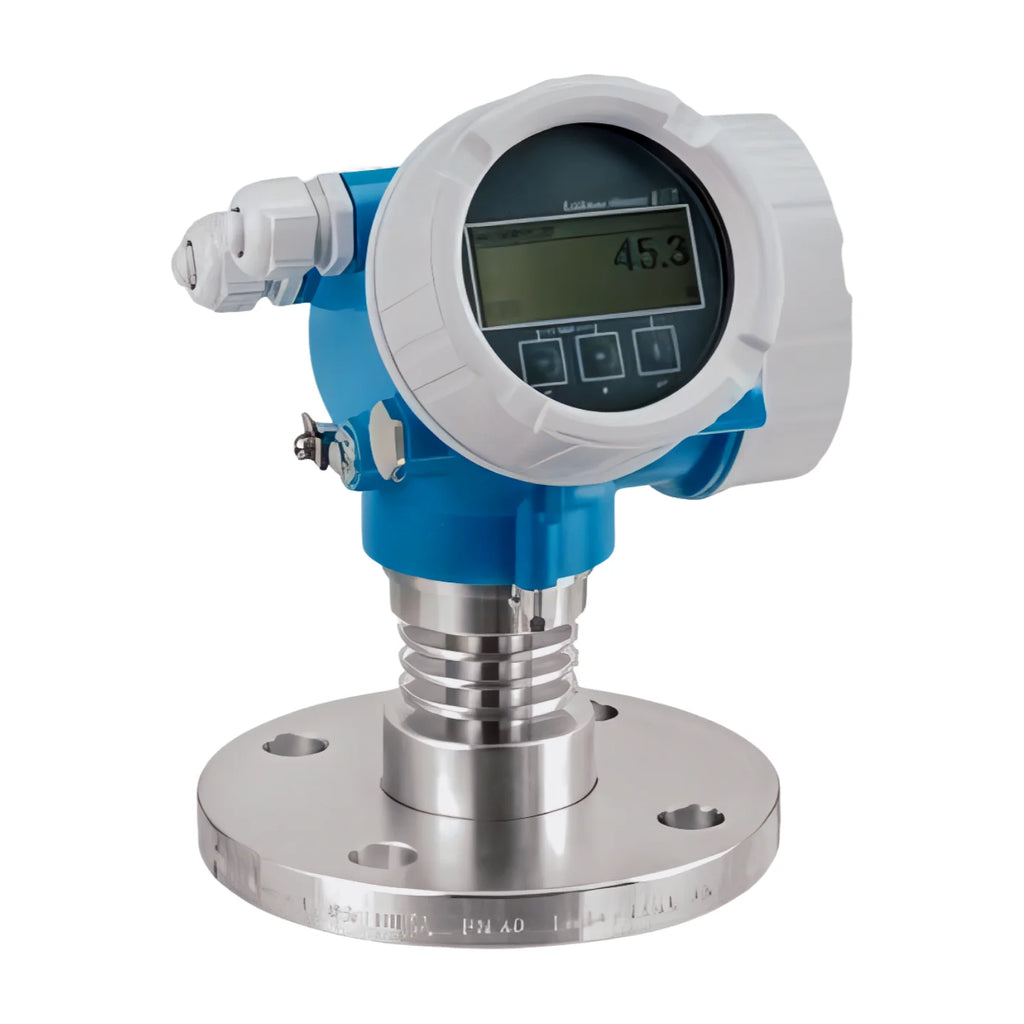

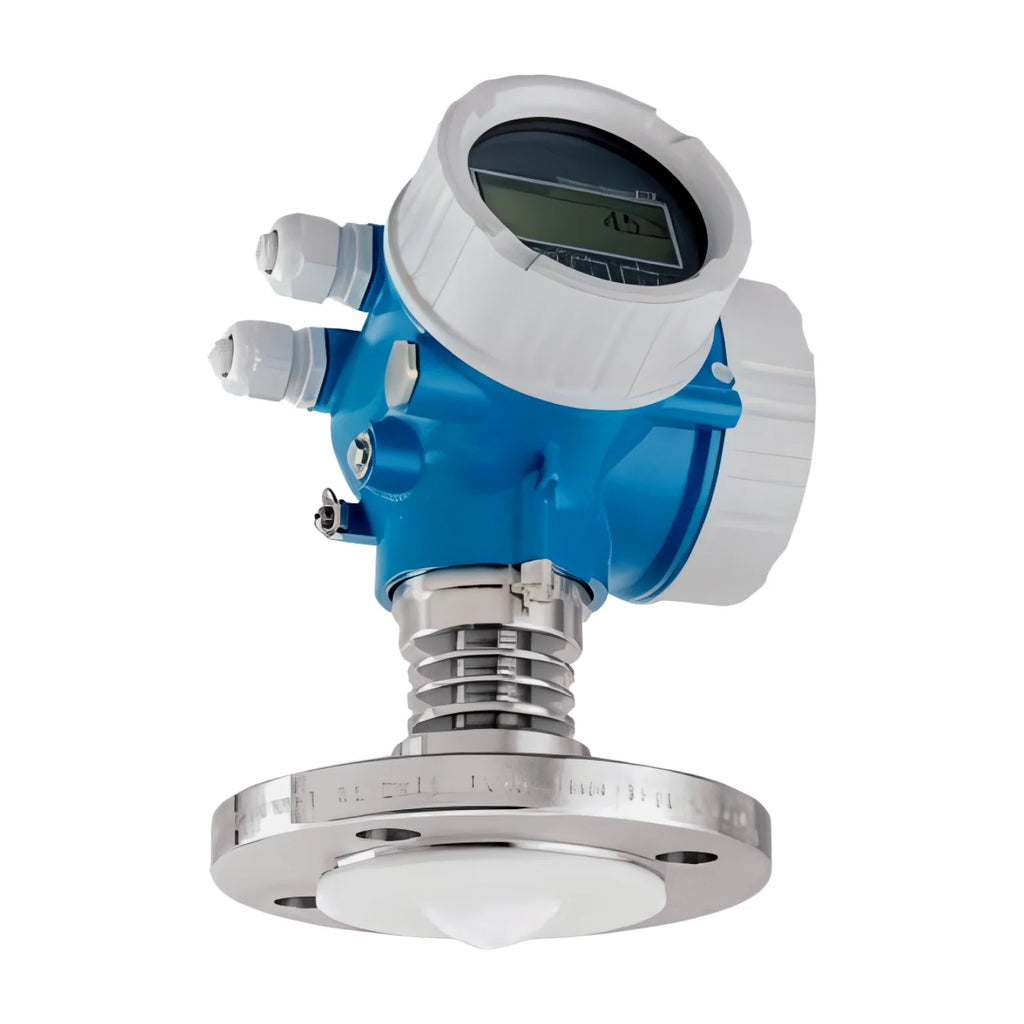

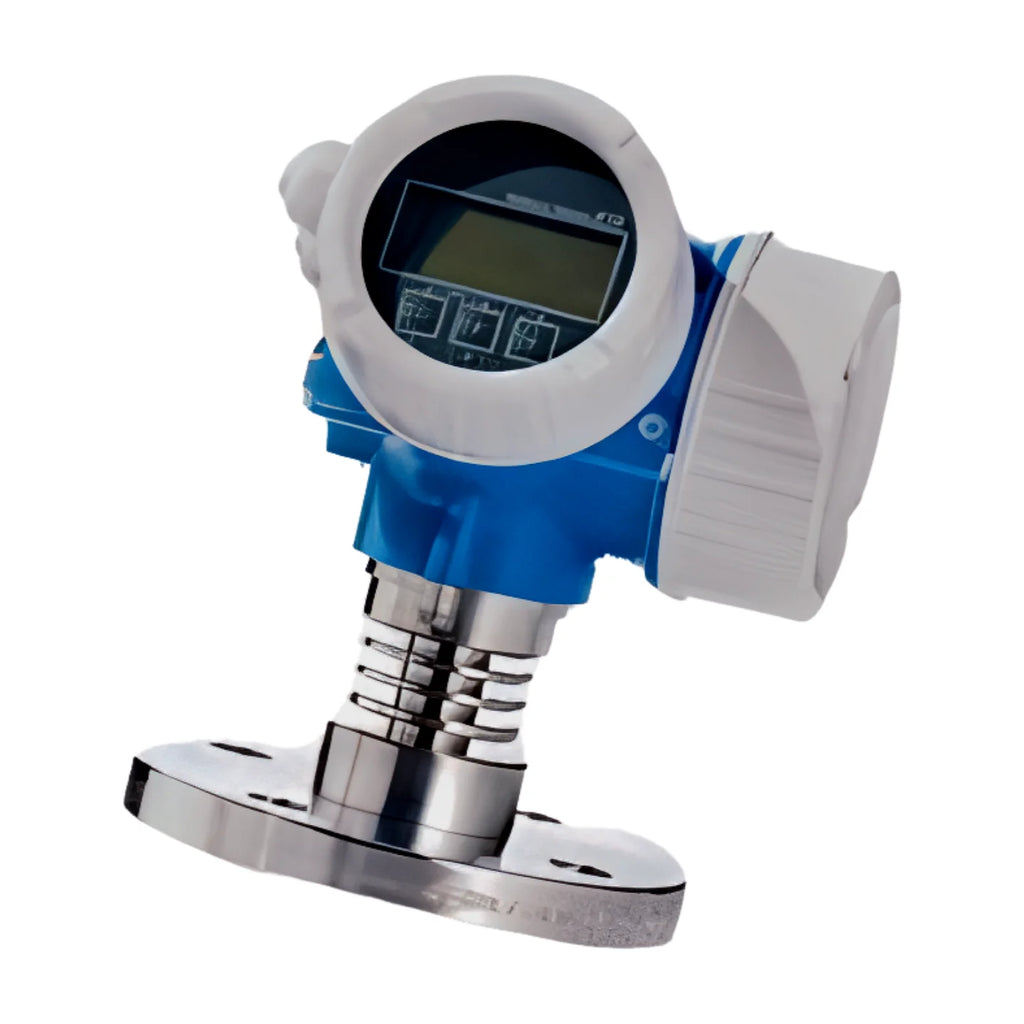

Flush-mounted, completely PTFE-encapsulated horn antenna.
* Process connections: Flush-mounted with cladded flange, process connections for hygiene requirements (Tri-Clamp, 11851)
* Temperature: -196 to +200°C (-320,8 to +392°F)
* Pressure: -1 to +25bar (-14.5 to +362psi)
* Maximum measuring range: 40m (131ft), 60m (197ft) for enhanced dynamics
* Accuracy: ±2mm
* K-band: 26GHz
* International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Flush-mounted, completely PTFE-encapsulated horn antenna.

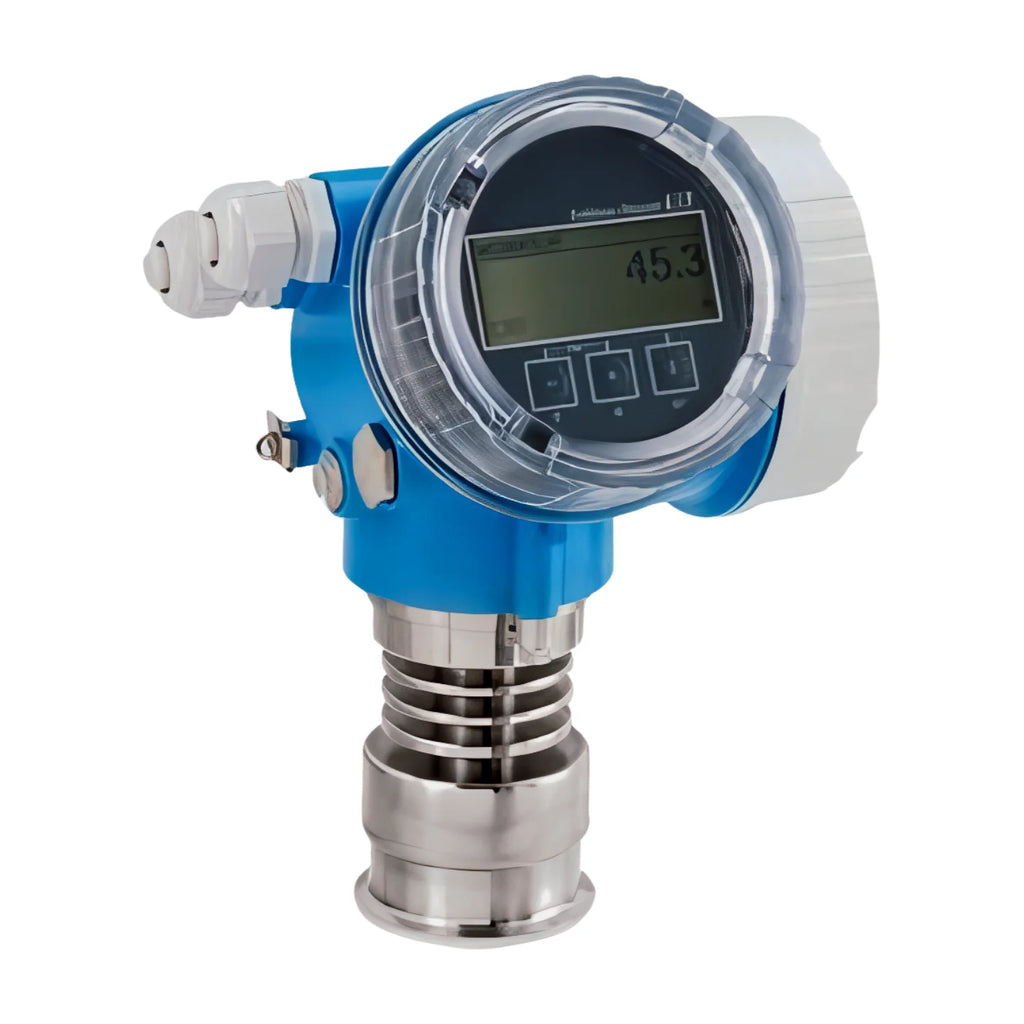

* Process connections: Flush-mounted with cladded flange, process connections for hygiene requirements (Tri-Clamp, 11851)
* Temperature: -196 to +200°C (-320,8 to +392°F)
* Pressure: -1 to +25bar (-14.5 to +362psi)
* Maximum measuring range: 40m (131ft), 60m (197ft) for enhanced dynamics
* Accuracy: ±2mm
* K-band: 26GHz
* International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Benefits
* Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
* Reliable non-contact measurement even for changing product and process conditions
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* World's easiest proof test concept for SIL and WHG saves time and cost
* Reliable non-contact measurement even for changing product and process conditions
* HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
* Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
* Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
* Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
* World's easiest proof test concept for SIL and WHG saves time and cost
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Micropilot FMR52
|
|
Material
|
PTFE
|
|
Mode
|
Radar measurement
|
|
Measuring Principle
|
Level radar
|
|
Characteristic / Application
|
Premium device for continuous non-contact level measurement, in which aggressive media are used as well as for highest hygiene
requirements (ASME BPE, USP Class VI); Flush mounted, fully PTFE filled horn antenna |
|
Specialities
|
Heartbeat Technology,
SIL 2 according to IEC 61508, Bluetooth® commissioning, Operation and maintenance SmartBlue App, Safety and reliability with Multi-Echo Tracking, HistoROM, RFID TAG for easy identification |
|
Supply / Communication
|
2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART) Bluetooth® wireless technology and App (optional) |
|
Frequency
|
K-band (~26 GHz)
|
|
Accuracy
|
+/- 2 mm (0.08 in)
|
|
Ambient temperature
|
-50...+80 °C
(-58...+176 °F) |
|
Process Temperature
|
-196...+200 °C
(-321...+392 °F) |
|
Process Pressure / Max. Overpressure Limit
|
Vacuum...25 bar
(Vacuum...363 psi) |
|
Main Wetted Parts
|
PTFE
|
|
Process Connection
|
Flange:
DN50...DN150 ASME 2"...6" JIS 10K |
|
Process connection hygienic
|
Tri-Clamp ISO2852
DIN11851 |
|
Max. Measurement Distance
|
Standard: 40 m (131 ft)
With advanced dynamics: 60 m (197 ft) |
|
Communication
|
4...20 mA HART
PROFIBUS PA FOUNDATION Fieldbus Bluetooth® wireless technology |
|
Certificates / Approvals
|
ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex
|
|
Safety approvals
|
Overfill protection WHG
SIL |
|
Design approvals
|
EN 10204-3.1
ASME B31.3 AD2000 |
|
Hygienic approvals
|
3A, EHEDG
CoC ASME-BPE |
|
Marine approval
|
GL/ ABS/ LR/ BV/ DNV
|
|
Options
|
Display,
Customized parameterization, Remote operation via SmartBlue App using Bluetooth®, Gas-tight feed through, PWIS free |
|
Application limits
|
Maximum measuring range is dependent on the tank form and/or application
Ammoniacal gas phase: FMR54 in stilling well Strong build-up formation: FMR54 with air purge Custody transfer measurement: FMR5xx |
