Overview

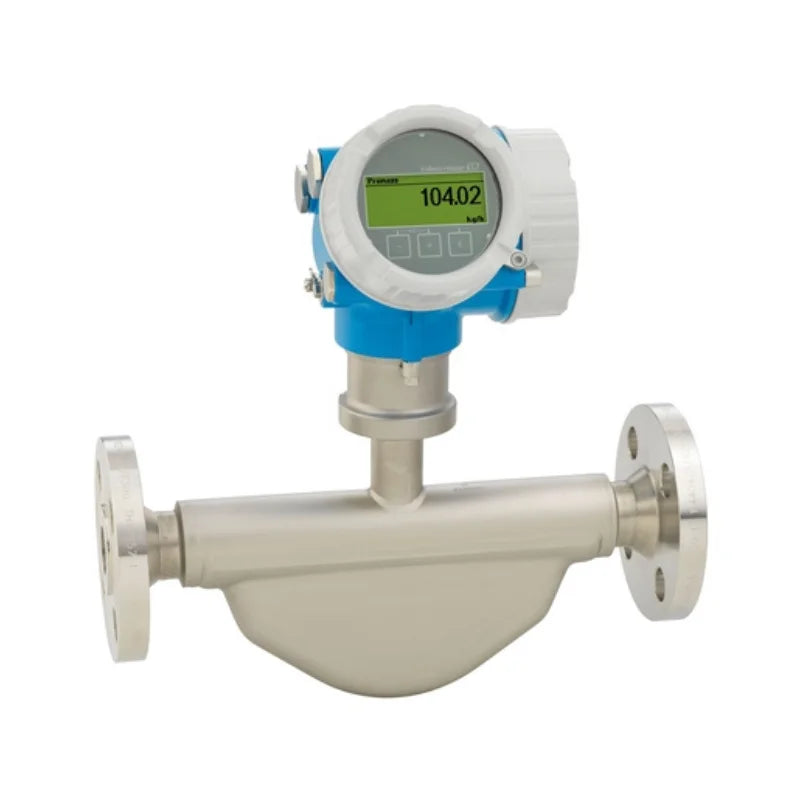

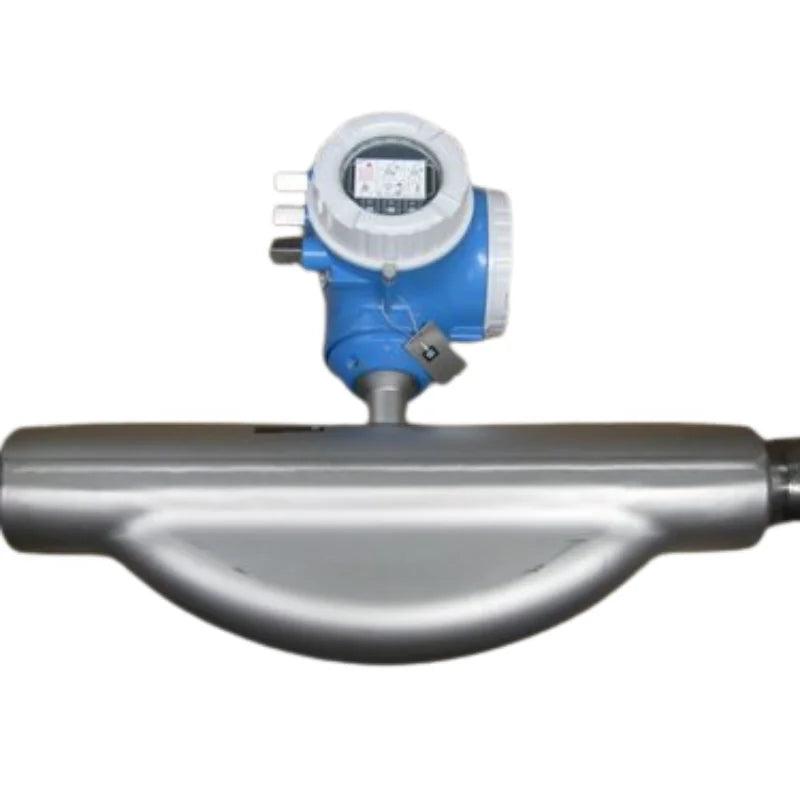

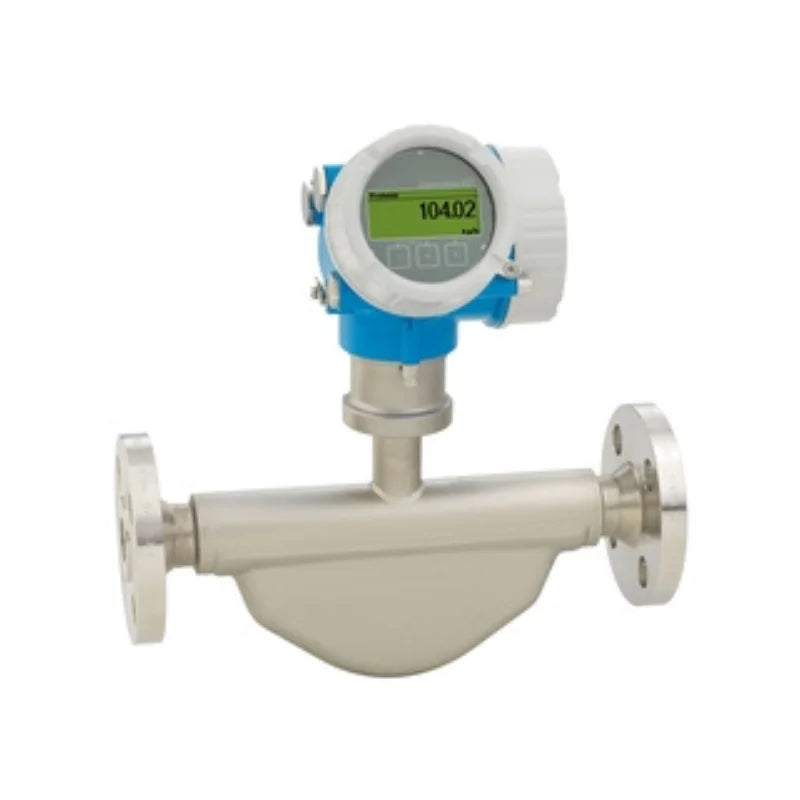

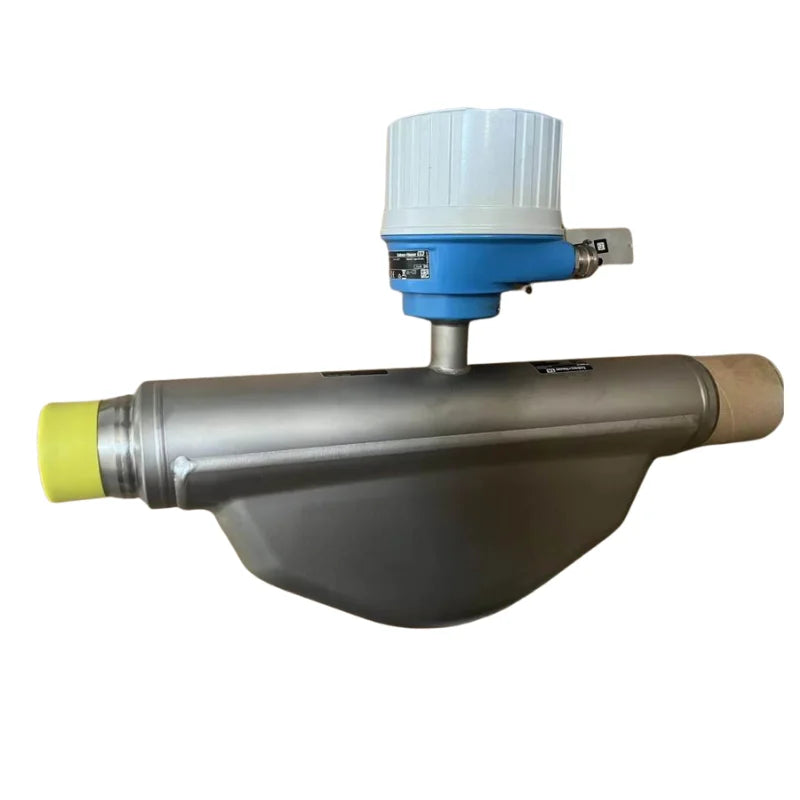

Genuine loop-powered mid-range Coriolis flowmeter.
Specs at a glance
* Max. measurement error
Mass flow (liquid): ±0.25 % (standard)
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min
* Medium temperature range
–40 to +150 °C (–40 to +302 °F)
* Max. process pressure
PN 100, Class 600, 63
* Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Mass flow (liquid): ±0.25 % (standard)
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³
* Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min
* Medium temperature range
–40 to +150 °C (–40 to +302 °F)
* Max. process pressure
PN 100, Class 600, 63
* Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Application
The robust Promass E has a long-standing reputation as a reliable solution accurately measuring liquids and gases in a wide range of standard applications in the chemical industry. With genuine loop-powered technology, Proline E 200 enables cost-effective and seamless integration into existing infrastructures. The flowmeter offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Accurate measurement of liquids and gases for a wide range of standard applications.
Device properties
* Compact dual-tube sensor
* Medium temperature up to +150 °C (+302 °F)
* Process pressure: up to 100 bar (1450 psi)
* Loop-powered technology
* Robust dual-compartment housing
* Plant safety: worldwide approvals (SIL, Haz. area)
* Measuring principle operates independently of physical fluid properties such as viscosity or density
* Accurate measurement of liquids and gases for a wide range of standard applications.
Device properties
* Compact dual-tube sensor
* Medium temperature up to +150 °C (+302 °F)
* Process pressure: up to 100 bar (1450 psi)
* Loop-powered technology
* Robust dual-compartment housing
* Plant safety: worldwide approvals (SIL, Haz. area)
Benefits
* Cost-effective – multipurpose device; an alternative to conventional volumetric flowmeters
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Convenient device wiring – separate connection compartment
* Safe operation – no need to open the device due to display with touch control, background lighting
* Integrated verification – Heartbeat Technology
* Fewer process measuring points – multivariable measurement (flow, density, temperature)
* Space-saving installation – no in-/outlet run needs
* Convenient device wiring – separate connection compartment
* Safe operation – no need to open the device due to display with touch control, background lighting
* Integrated verification – Heartbeat Technology
Specification
|
item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Switzerland
|
|
Brand Name
|
Endress+Hauser
|
|
Model Number
|
Promass E200
|
|
Type
|
Coriolis meters, Coriolis flowmeter
|
|
Measuring Principle
|
Coriolis
|
|
Product Headline
|
Genuine loop-powered flowmeter for minimized cost of ownership.
Accurate measurement of liquids and gases for a wide range of standard applications. |
|
Sensor Features
|
Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points –
multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi). |
|
Transmitter Features
|
Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch
control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area). |
|
Nominal Diameter Range
|
DN 8 to 50 (⅜ to 2")
|
|
Wetted Materials
|
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L) |
|
Measured Variables
|
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
|
|
Max. Measurement Error
|
Mass flow (liquid): ±0.25 % (standard)
Volume flow (liquid): ±0.25 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³ |
|
Measuring Range
|
0 to 70 000 kg/h (0 to 2570 lb/min)
|
|
Max. Process Pressure
|
PN 100, Class 600, 63K
|
|
Medium Temperature Range
|
–40 to +150 °C (–40 to +302°F)
|
|
Ambient Temperature Range
|
–40 to +60 °C (–40 to +140 °F)
|
|
Sensor Housing Material
|
1.4301 (304), corrosion resistant
|
|
Transmitter Housing Material
|
AlSi10Mg, coated
|
|
Degree Of Protection
|
IP66/67, type 4X enclosure
|
|
Display/Operation
|
4‐line backlit display with touch control
(operation from outside) Configuration via local display and operating tools possible Remote display available |
|
Outputs
|
4‐20 mA HART (passive)
4‐20 mA (passive) Pulse/frequency/switch output (passive) |
|
Inputs
|
None
|
|
Digital Communication
|
HART, PROFIBUS PA, FOUNDATION Fieldbus
|
|
Power Supply
|
DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch) DC 18 to 30 V (20 mA HART, 4‐20 mA) DC 9 to 32 V (PROFIBUS PA) |
|
Hazardous Area Approvals
|
ATEX, IECEx, cCSAus, JPN, UK Ex
|
|
Product Safety
|
CE, C-Tick
|
|
Functional Safety
|
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
|
|
Metrological Approvals And Certificates
|
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
|
|
Pressure Approvals And Certificates
|
PED, CRN
|
|
Material Certificates
|
3.1 material
|
|
Hygienic Approvals And Certificates
|
3-A, EHEDG, cGMP
|
