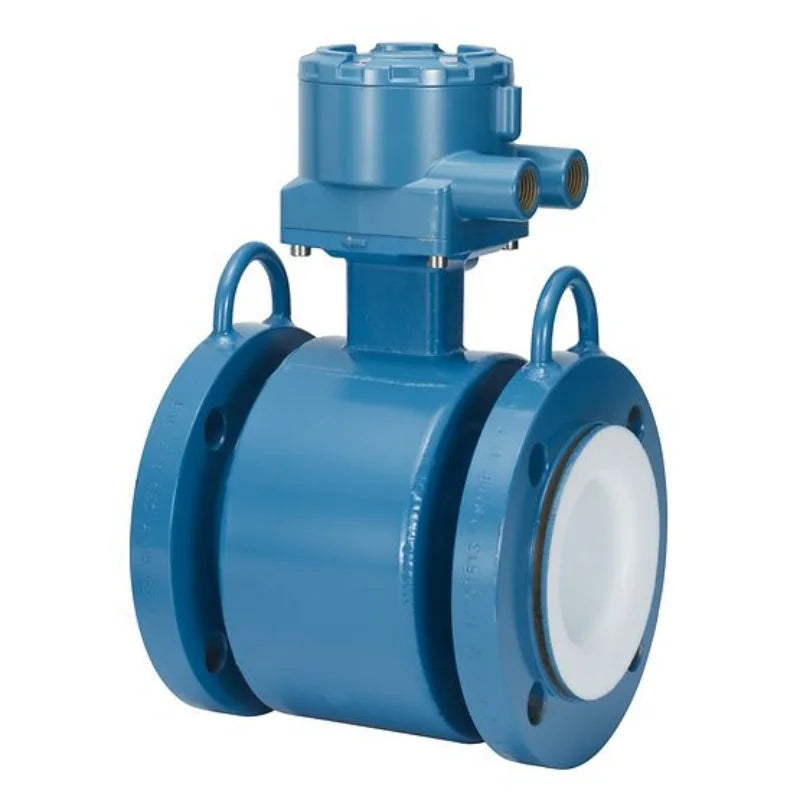

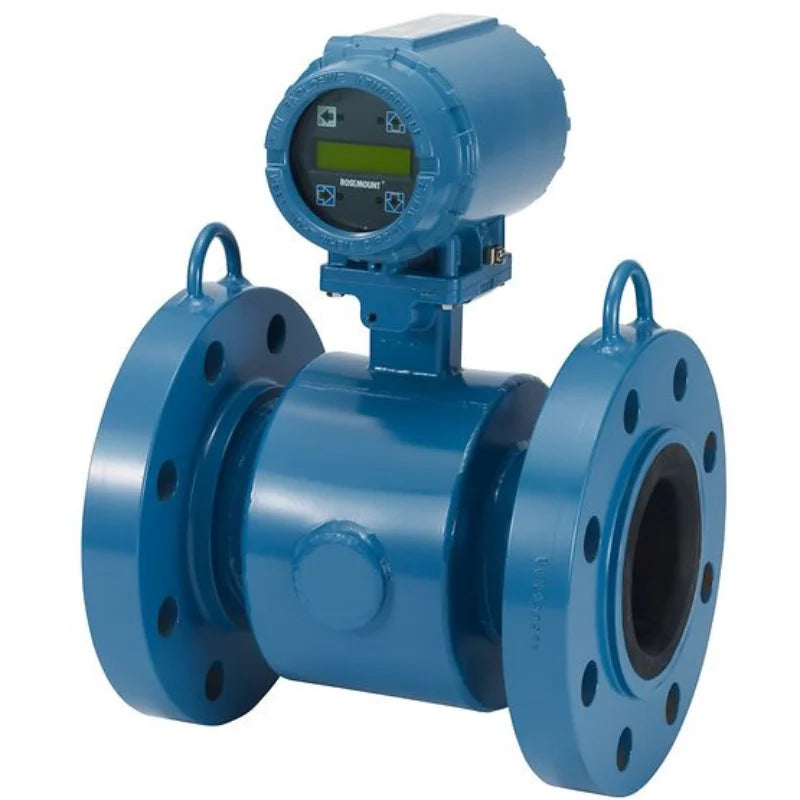

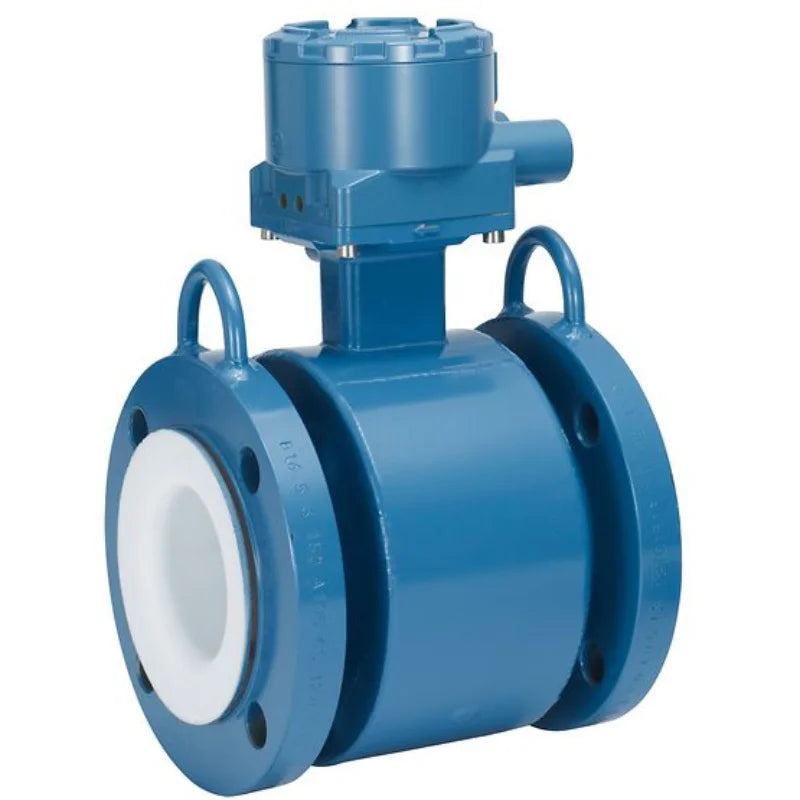

ROSEMOUNT 8705 Flanged Magnetic Flow Meter Sensors

ROSEMOUNT 8705 Flanged Magnetic Flow Meter Sensors

: In stock

: Flow Measurement

: ROSEMOUNT

Sale

Overview  Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture...

Overview

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The
sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire
meter.

Benefits

*For maximum protection, a fully welded sensor housing provides a hermetic seal

*Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

*Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes

*Ensure reliability in the harshest environments with an all-welded sensor housing

*Guard against installation damage and leading-edge wear with an optional lining protector

*Minimize maintenance and repair with an obstructionless design featuring no moving parts

Specification

Item
value
Warranty
1 Year
Customized support
OEM, ODM, OBM
Place of Origin
United States
Brand Name
ROSEMOUNT
Model Number
8705
Type
Electromagnetic meters
Accuracy
Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns
Liner Materials
PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber
Electrode Materials
316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
Flange Ratings
ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D
Submergence Protection
IP68 (Recommended with sealed cable glands)
Interchangeability
Compatible with all 8700 Series transmitters
Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C
