Overview

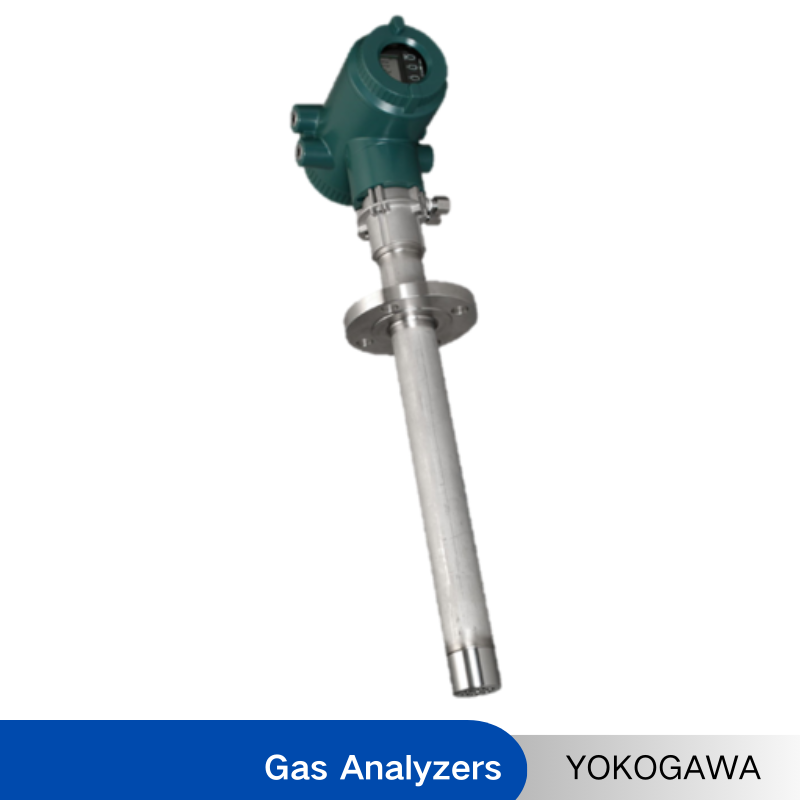

Integral Oxygen Analyzer ZR202
The EXAxt ZR202 transmitter / detector combines benefits of the ZR402 remote analyzer and the ZR22 detector into an intelligent, rebuildable, low-cost measurement device for in-situ humidity measurement. This smart probe features a local LCD display and
infrared push-button operation for local adjustment of the instrument and calibration control.
infrared push-button operation for local adjustment of the instrument and calibration control.
HART communication protocol allows easy configuration of the instrument as well as up to the second information on all process variables and diagnostic tools. The Yokogawa ZR202 smart probe offers customers a lower cost of product ownership by significantly reducing installation costs from tubing, wiring and conduit.
* Infra-red switch operation
* HART communication for configuration
* Integrated automatic calibration available
* Integral design can reduce installation costs
* Allows replacement of Zirconia cell and heater in the field
* Can measure either oxygen concentration or humidity
Explosion-proof Approval:
* ZR202S-A (ATEX); Ex d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db
* ZR202S-B (FM); Class I, Division1, Groups B, C and D
* ZR202S-C (CSA); Class I, Division1, Groups B, C and D
* ZR202S-D (IECEx); Ex d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db
* ZR202S-K (KOSHA); Ex d IIB + H2, T2
* HART communication for configuration
* Integrated automatic calibration available
* Integral design can reduce installation costs
* Allows replacement of Zirconia cell and heater in the field
* Can measure either oxygen concentration or humidity
Explosion-proof Approval:
* ZR202S-A (ATEX); Ex d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db
* ZR202S-B (FM); Class I, Division1, Groups B, C and D
* ZR202S-C (CSA); Class I, Division1, Groups B, C and D
* ZR202S-D (IECEx); Ex d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db
* ZR202S-K (KOSHA); Ex d IIB + H2, T2
Specification
|
Item
|
value
|
|
Warranty
|
1 Year
|
|
Type
|
Oxygen detector
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Place of Origin
|
Japan
|
|
Brand Name
|
YOKOGAWA
|
|
Model Number
|
ZR202
|
|
Product name
|
Integral Oxygen Analyzer
|
|
Power Supply Voltage
|
100 to 240 V AC
|
|
Measurement Object
|
Oxygen concentration in combustion exhaust gas and mixed gas (excluding inflammable gases, may not be applicable corrosive gas
such as ammonia or chlorine is present.) |
|
Measurement System
|
Zirconia system
|
|
Oxygen Concentration
|
0.01 to 21 vol%O2
|
|
Measurement Range
|
0.01 to 100 vol%O2
|
|
Display
|
6-digit LCD
|
|
Switch
|
Three optical switches
|
|
Output Signal
|
4 to 20 mA DC, one point (maximum load resistance 550 Ω)
|
|
Digital Communication (HART)
|
250 to 550 Ω, depending on quantity of f ield devices connected to the loop (multi drop mode).
|
|
Contact Input Signal
|
Two points
|
|
Gas Temperature
|
0 to 700°C
|
