Overview

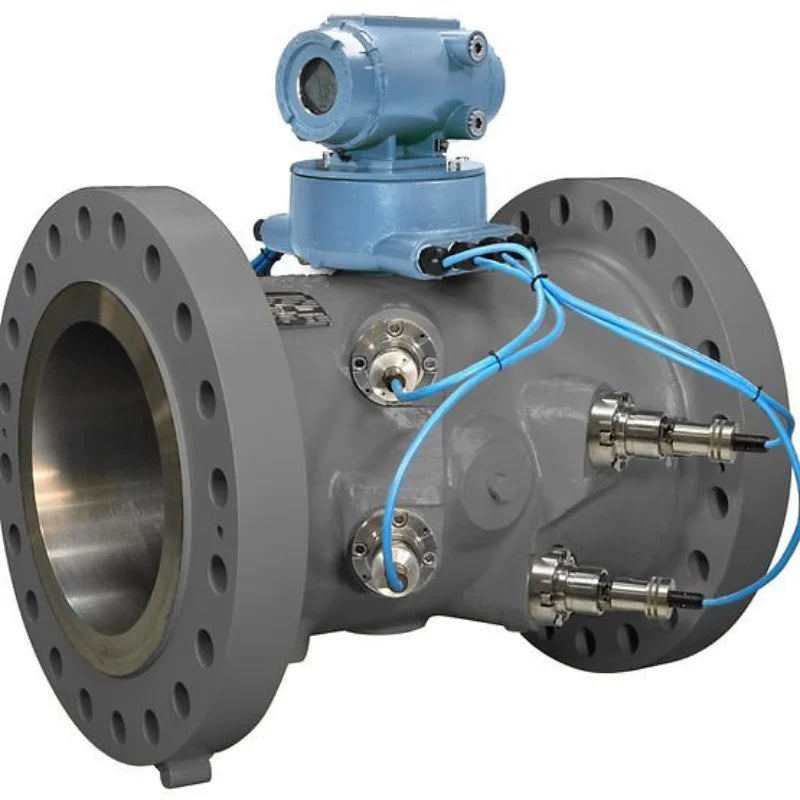

Series Electronics. This powerful, high-performance meter minimizes measurement uncertainty by enabling rapid detection of changing flow dynamics such as blockages upstream of the meter, abnormal flow profiles and liquid hydrocarbons. MeterLink™. Software displays a wealth of predictive diagnostics generated by the meter, providing expert flow analysis, flow disturbance alerts and suggested corrective actions, to expedite detection before measurement is impacted.
Benefits
* Speed issue resolution with 3D view of the flow profile that indicates swirl, crossflow, asymmetry and turbulence
* Reduce manual errors with automatic calculations of AGA 8 Compressibility and AGA 10 Speed of Sound
* Reduce measurement uncertainty with process alerts for wall buildup, liquids, blockage and deviating gas quality
* Increase I/O with new Type 4 CPU Module with up to six frequency or digital outputs
* T-200 Transducers are safely extractable under pressure without special tools
* Increase I/O with new Type 4 CPU Module with up to six frequency or digital outputs
* Significantly reduce time previous spent on data analysis and troubleshooting with the new Smart Meter Verification Basic feature now included in the latest 3410 Electronics firmware update
Specification
|
Item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT
|
|
Model Number
|
3414
|
|
Type
|
Ultrasonic meters
|
|
Material
|
Carbon steel and stainless steel
|
|
Line Sizes
|
DN100 to DN1050 (4-in to 42-in)
|
|
Fluid Type
|
Gas
|
|
Accuracy
|
±0.1% of reading relative over entire flow calibration range
|
|
Repeatability
|
±0.05% of reading for 5 to 100 ft/s (1.5 to 30.5 m/s)
|
|
Velocity
|
Rated up to 100 ft/s (30 m/s) with over-range performance exceeding 125 ft/s (38 m/s) on some sizes
|
|
Operating Temperature Range
|
T-21 Transducers: -20°C to +100°C (-4°F to +212°F)
T-22 Transducers: -50°C to +100°C (-58°F to +212°F) T-200 Transducers (up to 12” line size): –50°C to 125°C (–58°F to +257°F) |
|
Operating Pressure Range
|
T-21/T-22 Transducers: 689 to 27,579 kPag (100 to 4,000 psig)
T-21/T-22 Transducers: 345 kPag (50 psig) minimum operating pressure available with reduced Qmax T-22 Transducers: 0 to 689 kPag (0 to 100 psig) isolated transducer mou T-200 Transducer: 15 to 3,750 psig (1.03 to 258.55 bar) |
We normally ship by DHL, UPS, FEDEX or TNT,
some country could not be ship by above method, then we would use EMS or Country Logistics line.
