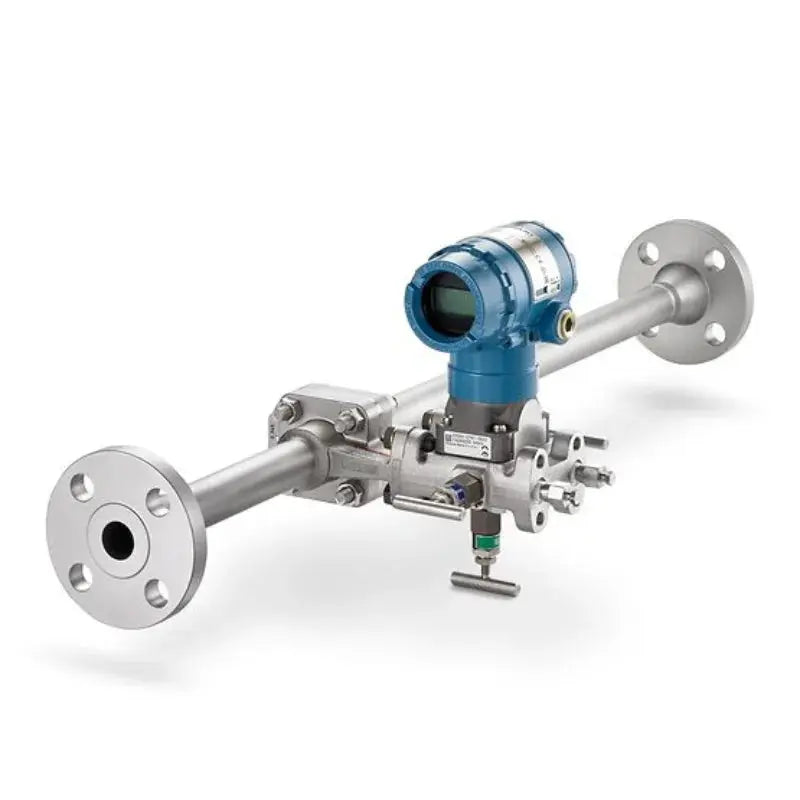

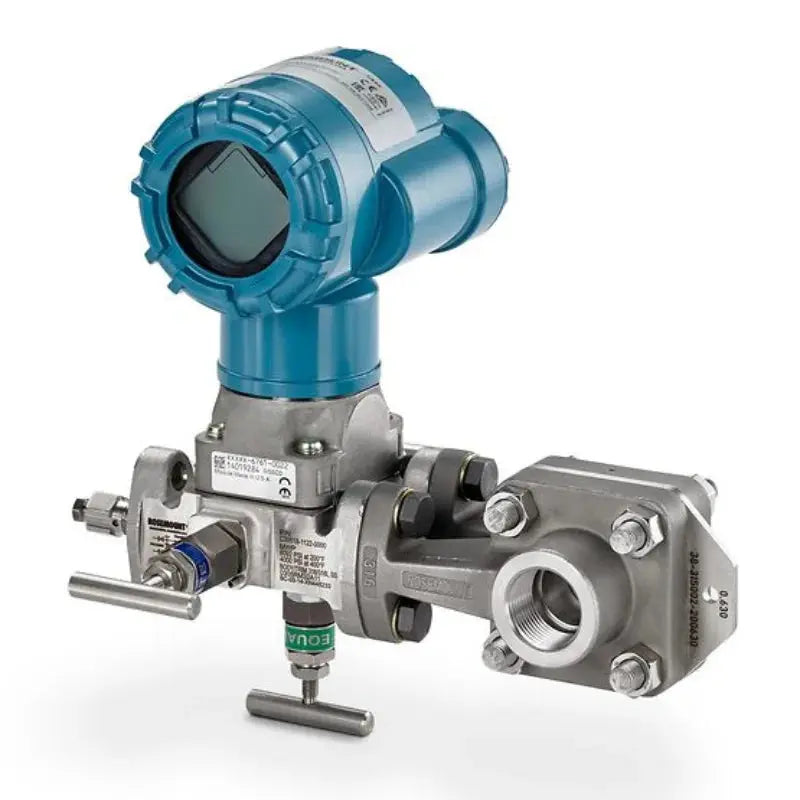

Rosemount™ 2051CFP Integral Orifice Flow Meter
The Rosemount 2051CFC Integral Orifice Plate Flow Meter offers dependable flow measurements. This flow meter is engineered with an integral orifice primary element, which is provided in a meter run and facilitates accurate flow measurement in small line sizes(0.5 - 1.5 in. or 15 - 40 mm). This safety-certified transmitter also features a local operator interface (LOI) for easy field commissioning. This device is offered with multiple communication protocols, including WirelessHART.
Benefits
* Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
* Primary element integrated in a meter run for ease of installation
* Orifice plate suitable for small line sizes 0.5- 1.5 in. (15 - 40 mm) for flow measurement accuracy and repeatability
* Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
* Primary element integrated in a meter run for ease of installation
* Orifice plate suitable for small line sizes 0.5- 1.5 in. (15 - 40 mm) for flow measurement accuracy and repeatability
* Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
* SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
* WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
* SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
* Easy installation enables quick instrumentation of measurement points without the cost of wiring
Specification
|
Item
|
value
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
United States
|
|
Brand Name
|
ROSEMOUNT
|
|
Model Number
|
2051CFP
|
|
Rangedown
|
Up to 100:1 (5:1 flow turndown)
|
|
Communication Protocol
|
4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
|
|
Line Size
|
0.5 to 1.5 in. (15 to 40 mm)
|
|
Measurement Range
|
Up to 1000 inH2O (2,48 bar) differential
|
|
Process Wetted Material
|
316L SST
|
|
Diagnostics
|
Basic Diagnostics
|
|
Output
|
Differentiual pressure, scaled variable
|
|
Certifications/Approvals
|
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of
certifications |
|
Wireless Update Rate
|
1 sec. to 60 min., user selectable
|
|
Power Module Life
|
Up to 10-year life, field replaceable (order separately)
|
|
Wireless Range
|
Internal antenna (225 m)
|
