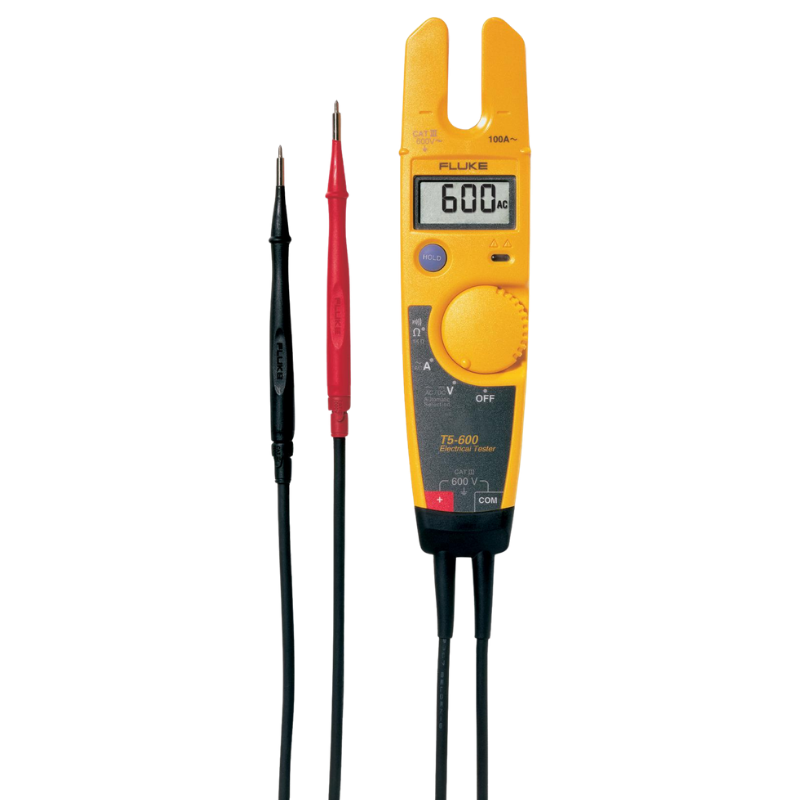

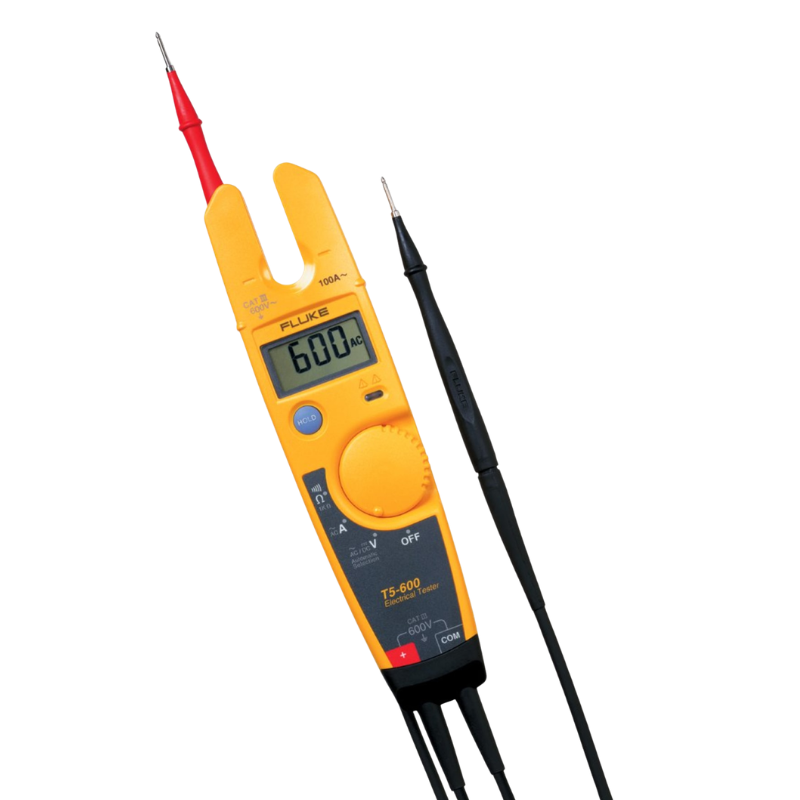

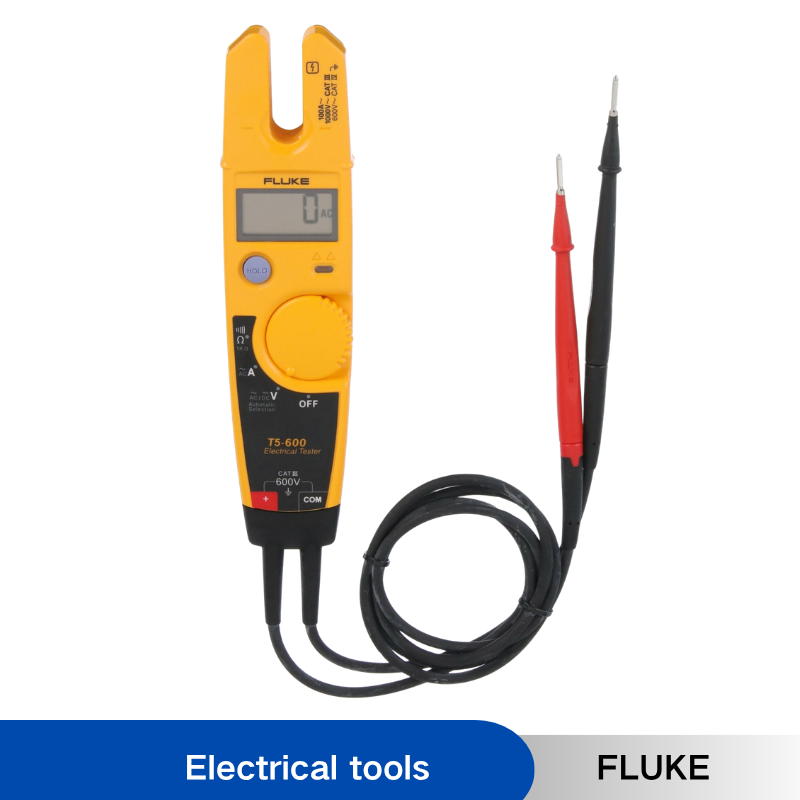

Product overview: Fluke T5-600 Electrical Tester
The T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.
“This meter is perfect for my use as I do HVAC and Electrical work, and this will give me what I need for troubleshooting and performance of equipment.” - Paul
Measure current up to 100 A without breaking the circuit with OpenJaw™ design
The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact to a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to. The T5-600 is also designed to:
- Withstand a 10 ft. (3 m) drop
- Conserve battery life with auto-off mode
- Fit in one hand with handy probe storage in the back of the holster
- Accept Fluke accessory test clips with the test leads
Meter automatically selects AC or DC voltage for tests up to 600 V
Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected. This meter is suitable for both residential or commercial applications and is designed to keep you safe with a CAT III 600 V rating.
Special features
- Measure current up to 100 A without breaking the circuit
- Meter automatically selects AC or DC voltage, up to 600 V
- Resistance measurements up to 1000 Ω plus continuity test
- Work in tight spaces with detachable SlimReach™ probe tips
Models: Fluke T5-600 Electrical Tester
Fluke T5-600 Voltage, Continuity and Current Tester
UPC#: 0 95969 05312 9
Includes:
- 600 V Voltage, continuity and current tester
- 4 mm detachable probes
- Instruction sheet
Fluke T5-600 Voltage, Continuity and Current Tester, with a traceable certificate of calibration with data from Fluke
UPC#: 0 95969 94680 3
Includes:
- 600 V Voltage, continuity and current tester
- 4 mm detachable probes
- Instruction sheet
- A traceable certificate of calibration with data from Fluke
Specification
| Specifications | |||
| Jaw opening | 12.9 mm (0.5 in) | ||
| Max wire size | 1/0 THHN Cable | ||
| AC response | Averaging | ||
| Voltage | AC 600V rms | 1V Resolution | Accuracy +/-(1.5% + 2 Counts) |
| Accuracy AC current (50/60 Hz) | 3% ± 3 counts | ||
| Range & Accuracy | DC 600V | 1V Resolution | Accuracy +/-(1% + 1 Count) |
| AC Current (50/60Hz) | 100.0A AC | 0.1A Resolution | Accuracy +/-(3% + 3 Digits) |
| DC | 1% ± 1 count | ||
| Resistance (Ohms) | 1000 Ohms | 1 Ohm Resolution | Accuracy +/-(1% + 2 Counts) |
| Continuity beeper threshold | On at < 25 Ω, off at > 400 Ω | ||
| Volts indicator LED threshold | Guaranteed on by 30 V AC | ||
| Environmental Specifications | |||
| Operating temperature | -10°C to 50°C | ||
| Storage temperature | -30°C to 60°C | ||
| Humidity (without condensation) | 0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C) |
||
| Dust/water resistance | Yes | ||
| Operating altitude | 2000 meters max | ||
| Temperature coefficient | 0.1 x (specified accuracy)/°C (< 18°C or > 28°C) | ||
| Safety Specifications | |||
| Measurement Category | IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac | ||
| Agency approvals | CSA, TUV | ||
| Maximum voltage | 600 V between any terminal and earth ground | ||
| Mechanical and General Specifications | |||
| Size | 30.5 x 51 x 203 mm | ||
| Weight | 300 g | ||
| Warranty | Two-years | ||
| Battery life | 200 hour zinc chloride, 400 hour alkaline | ||
| Battery type | 2 x AA | ||
| Low battery indicator | Yes | ||
| Current sensor opening | 12.9 mm | ||
