Overview

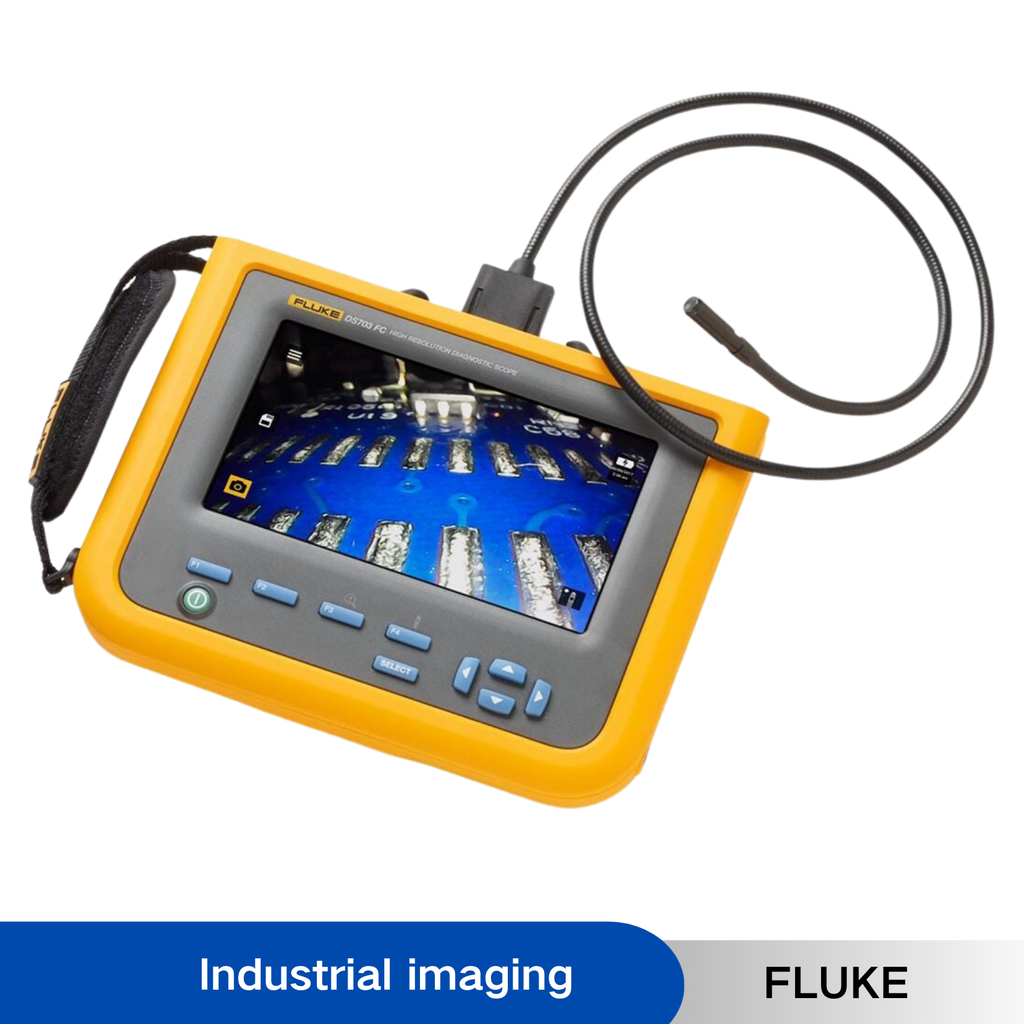

The Fluke DS703 FC Video Borescope has been updated with improved battery charging and management and can now last up to 4 hours on a single charge.
7” capacitive touch screen for accurate diagnostics in difficult to reach spaces. 720p video recording inspection camera. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe.
Save time with the Fluke Connect® system
Wirelessly sync images directly from your diagnostic scope to the Fluke Connect® system. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real-time collaboration between team members.
Expand the flexibility of your video borescope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM, probes as long as 20 meters, and a new camera probe with a 180° degree articulating head. Equip yourself with the right probe for your environment.
Special features
-
7" High-Resolution Touchscreen – Clear viewing, glove-friendly with physical buttons
-
Dual-View Probe – Forward & side-facing cameras, 720p HD video recording
-
Up-is-Up™ Technology – Auto screen rotation keeps orientation accurate
-
8x Digital Zoom – Macro-to-micro detail capture
-
Adjustable LED Lighting – Optimizes visibility in dark or reflective environments
-
Fluke Connect® Wireless – Wi-Fi upload to cloud for team collaboration
-
HDMI Live Output – Real-time streaming to external displays
-
IP54 Tablet / IP68 Probe – Waterproof, oil & chemical resistant
-
2m Drop Tested – Built for demanding industrial sites
-
Interchangeable Probes – Supports 3.8mm–9mm diameters, up to 20m length
-
4-Hour Battery Life – Extended runtime for field inspections
Specification
| LCD Screen | |
| Type | 7 inch Capacitive touch screen |
| Refresh rate | 30 hz |
| LED backlight | Adjust display brightness for optimal viewing |
| Communication | |
| Wireless interface | WiFi 802.11b/g/n, Range: 33 feet (10.06 meters) |
| Data transfer | USB and micro HDMI cable |
| FlukeConnect™ | Save and share images via FlukeConnect™ |
| Instant upload to the cloud | Yes, with FlukeConnect™ |
| General Features | |
| Color palettes | Visible light, grayscale or inverted |
| Internal memory | 6 GB |
| Physical buttons | Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button |
| Carrying case | Protective EVA case |
| Strap | Hand Strap and Neck Strap included |
| Power adapter | AC adapter/battery charger input |
| Battery | 6400mAh 3.7 volt rechargeable internal li-ion battery |
| Battery life | 3 hours at 50 % LED brightness |
| Dimensions | 6.98 x 8.85 inches (17.73 x 22.48 cm) |
| Weight | 1.95 lbs (0.88 Kg) |
| General Specifications and Safety | |
| Tablet | IP54, dust protected and protected against water projected from a nozzle |
| Drop test | 2 meter (6.56 feet) |
| Operating temperature | 0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating humidity | 90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F) |
| Warranty | 2 years |
| Video Borescope Probe Specifications | 8.5mm Dual View (1.2M) (Included with DS703 FC) |
| Outer Diameter of Tip | 8.5mm |
| Length | 1.2 meter |
| Resolution | 1280 x 720 (720p) (HD) |
| Depth of Field (min) | 35.5mm (Front) 35.5mm (Side) |
| Depth of Field (max) | 111.7mm (Front) 111.7mm (Side) |
| Field of View | 75 degrees |
| Up-is-Up™ technology | Yes |
| Length of Distal Tip | 50mm |
| Outer Diameter of Conduit | 6.1mm |
| Conduit Pliability | Flexible but compliant |
| Waterproof | Waterproof to 2 psi |
| LED Type | Standard white |
| Still image format | JPG |
| Video recording format | MPEG compression |
| Digital zoom | Adjustable from 1x to 8x zoom |
| Camera Direction | Front and Side View |
| Streaming video | Via HDMI |
