Overview

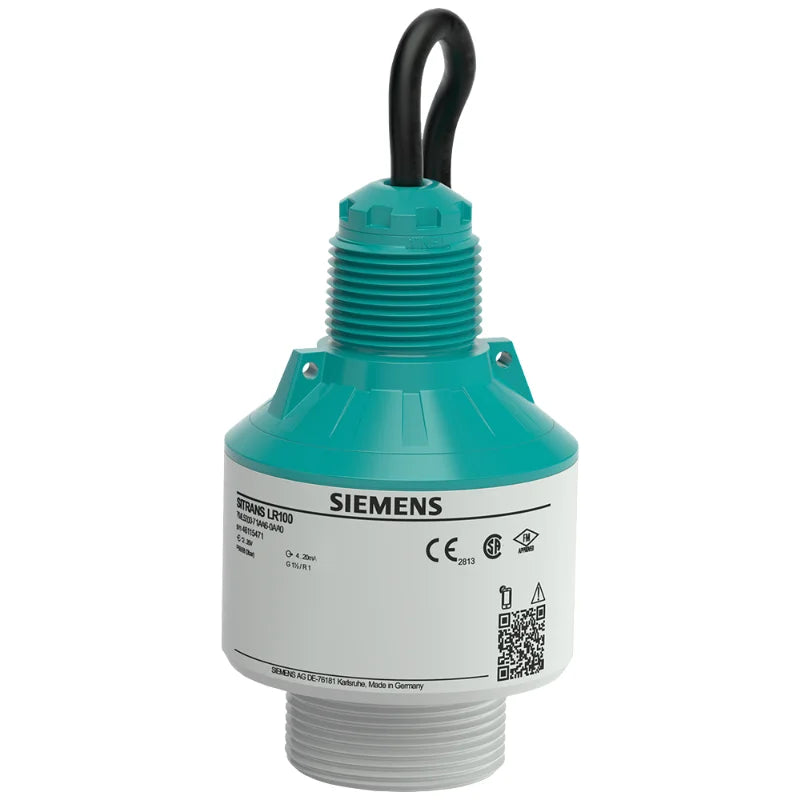

SITRANS LR100 is a 2 wire loop powered radar transmitter for continuous level measurement of liquids and slurries to a range of 8m (26 ft).
Benefits
* Bluetooth connectivity for easy setup with SITRANS mobile IQ
* Chemically resistant PVDF enclosure
* W band FMCW radar yields narrow beam with small antenna for superior performance in short range applications
* Approved for open air applications outside of a tank
* Compact design fits in limited space installations
Application
SITRANS LR100 is a W band FMCW radar level transmitter, packaged in a hermetically sealed PVDF enclosure for years of trouble-free reliable measurement service.
4 to 20 mA loop powered, it provides accurate level measurement to ranges of 8 m (26 ft). Measurement is possible non-intrusively through plastic vessel tops for easy installation. Programming is convenient using the Bluetooth connection and SITRANS mobile IQ application on your smart device.
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
SIEMENS
|
|
Model Number
|
LR100 Series
|
|
Material
|
316/316L
|
|
Mode
|
80 GHz compact radar transmitters
|
|
Range
|
0 ... 8 m (0 ... 26 ft)
|
|
Frequency
|
80 GHz nominal
|
|
Beam Angle
|
8°
|
|
Power Supply
|
12 ... 35 V DC
|
|
Accuracy
|
± 5 mm
|
|
Vessel Pressure
|
-1 ... +3 bar (14.50 ... 43.51 psi g)
|
|
Process Temperature
|
-40 ... +60 °C (-40 ... +140 °F)
|
|
Material (enclosure)
|
PVDF
|
|

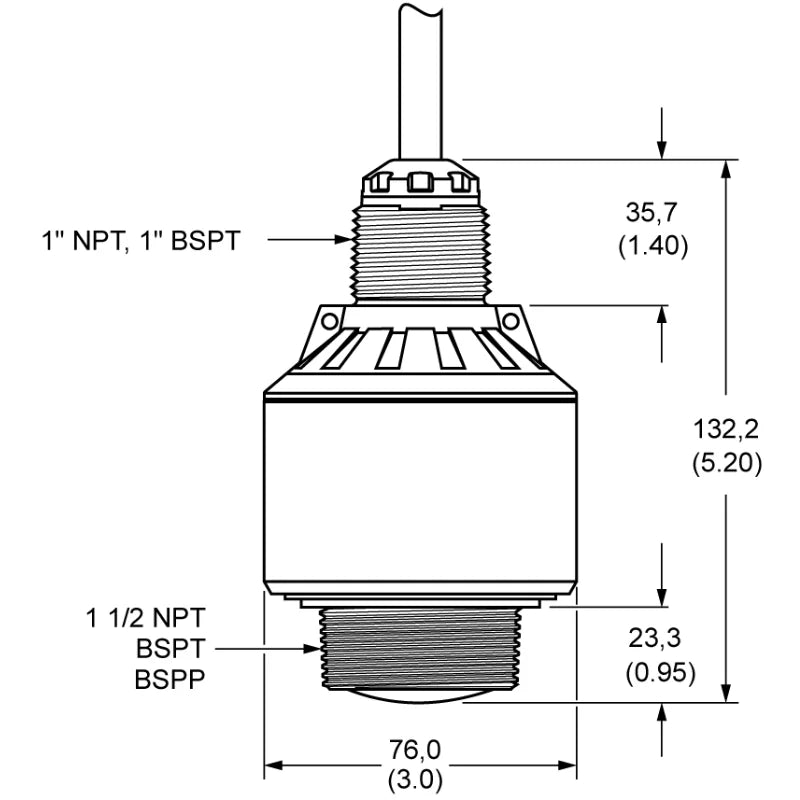

Process Connection
|
1-1/2" NPT, 1-1/2" BSPT, or 1-1/2" BSPP
|
|
Degree Of Protection
|
IP66/IP68
|
|

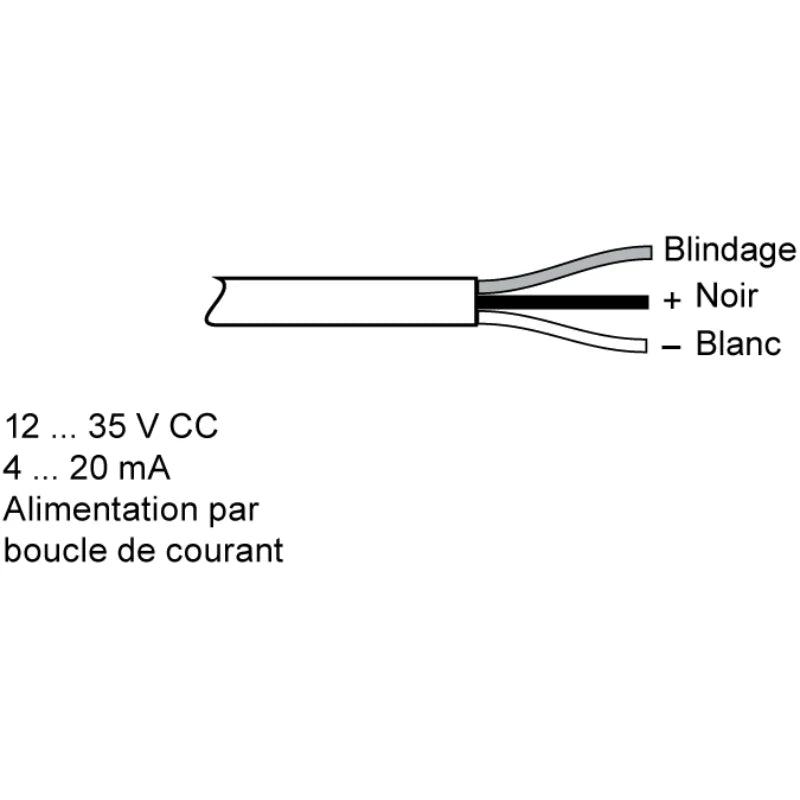

Cable Connection
|
* 8 m (26 ft) long, 2 conductor, twisted with shield 18 AWG, PVC jacket
* 1" NPT or 1" BSPT threaded connection |
|
Approvals
|
CE, UKCA, CFMUS, CCSAUS, RCM, EAC
|
