Overview

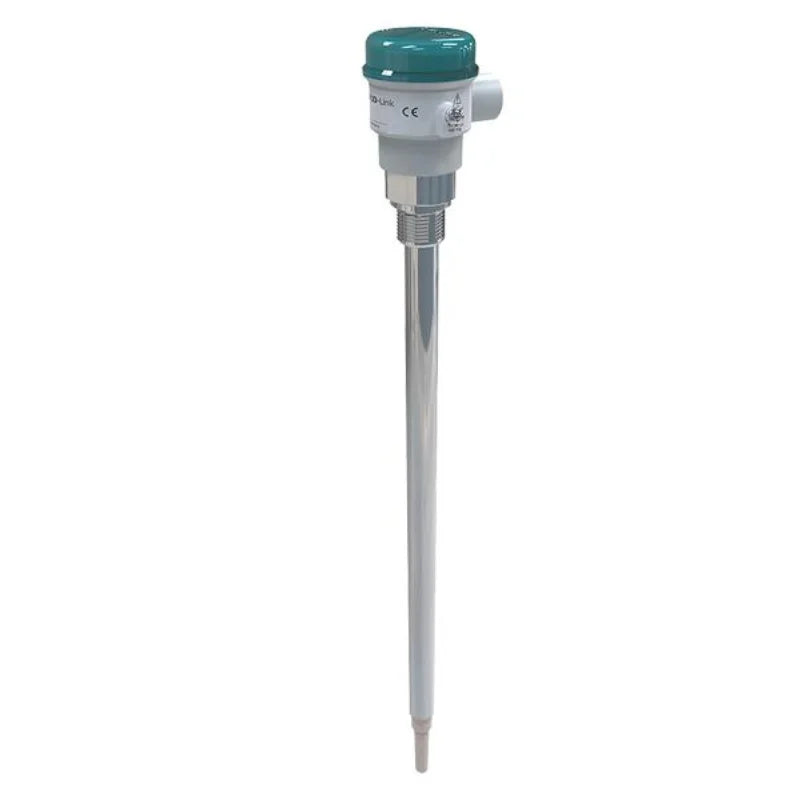

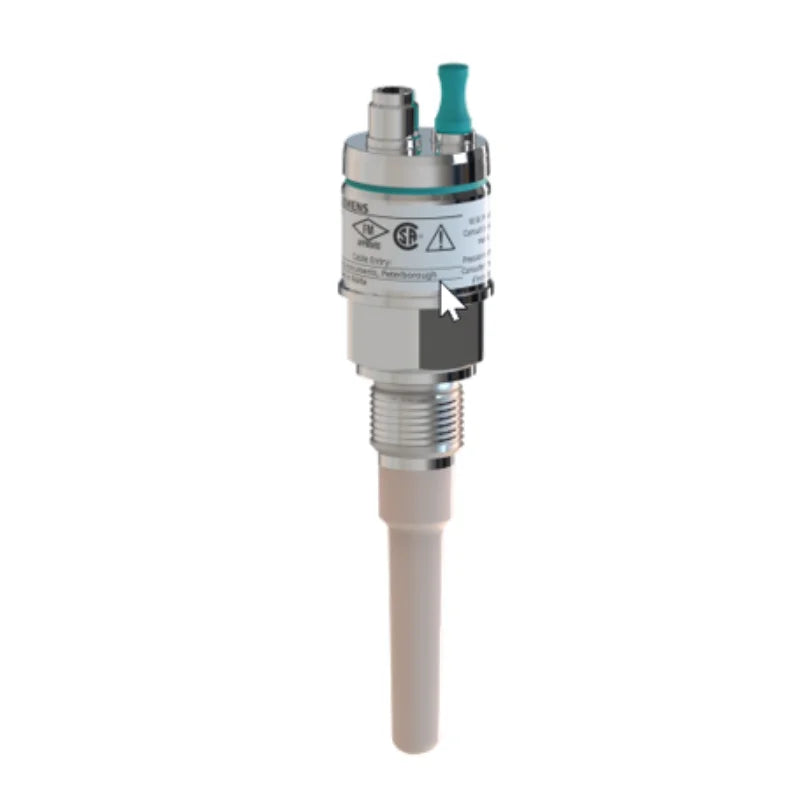

SITRANS LCS100 is a point level switch that detects point level in liquids, solids, slurries, foam, and interface detection. Its compact design is ideal for confined spaces with plastic or stainless steel process connections and flexible rod and cable probeextensions. SITRANS LCS100 is used for overflow, high, low, and demand applications as well as pump protection. It works in all types of vessels, pipes, and silos in a broad range of industries including food, pharmaceuticals, chemical, petrochemical, water,and machine building.
Benefits
* Potted construction provides protection from shock and vibration
* Factory calibrated to work in most applications without tuning
* Active shield and tunable to compensate for build-up
* Optional IO-link communication and remote testing
* Options for plastic or Stainless steel enclosure and M12 connection
* Factory calibrated to work in most applications without tuning
* Active shield and tunable to compensate for build-up
* Optional IO-link communication and remote testing
* Options for plastic or Stainless steel enclosure and M12 connection
Application
SITRANS LCS100's flexible insertion length, starting at 92 mm (3.6 inch), and its versatility in various applications and in vessels or pipes make it a good fit for most point level applications. Its advanced design provides accurate, repeatable, switchpoint performance. The PPS (Polyphenylene sulfide) probe [optional PVDF (Polyvinylidene Fluoride)] and optional peek are chemically resistant with an effective process operating temperature range from ‑40 to +125 °C (‑40 to +257 °F). The fully potted design ensures reliability in a vibrating environment such as agitated tanks.When used with a SensGuard protection cover, the LCS100 is protected from shearing, impact, and abrasion in tough primary processes. The SITRANS LCS100 is available with either a stainless steel enclosure or a polyester enclosure and stainless steel or PPS process connection options.
* Key Applications: liquids, slurries, powders, granules, food and pharmaceuticals, chemicals, hazardous areas.
* Key Applications: liquids, slurries, powders, granules, food and pharmaceuticals, chemicals, hazardous areas.
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 Year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
Germany
|
|
Brand Name
|
SIEMENS
|
|
Model Number
|
LSC100
|
|
Material
|
316/316L
|
|
Mode
|
Capacitive Level Detection
|
|
Range
|
92 mm (3.6 inch) to 20 000 mm (787 inch)
|
|
Process Temperature
|
-40 ... +125 °C (-40 ... +257 °F)
|
|
Process Pressure
|
25 bar (363 psi)
|
|
Versions Available
|
Compact, rod and cable
|
|
Outputs
|
8/16 mA or 4 ... 20 mA 2-wire loop IO-Link, PNP, NPN, relay
|
|
Switch Output
|
4-wire relay
|
|
Repeatability
|
2 mm (0.08 inch)
|
|
Body Material
|
Thermoplastic polyester
|
|
Power Supply
|
9 ... 33 V DC, 0.7W including 10 % of EN 61010-1
|
|
Approvals
|
CE, UKCA, FM, CSA
|
